Gamma Progression 602 Owner's Manual

Hide thumbs Also See for Progression 602:
Table of Contents

Advertisement

Quick Links

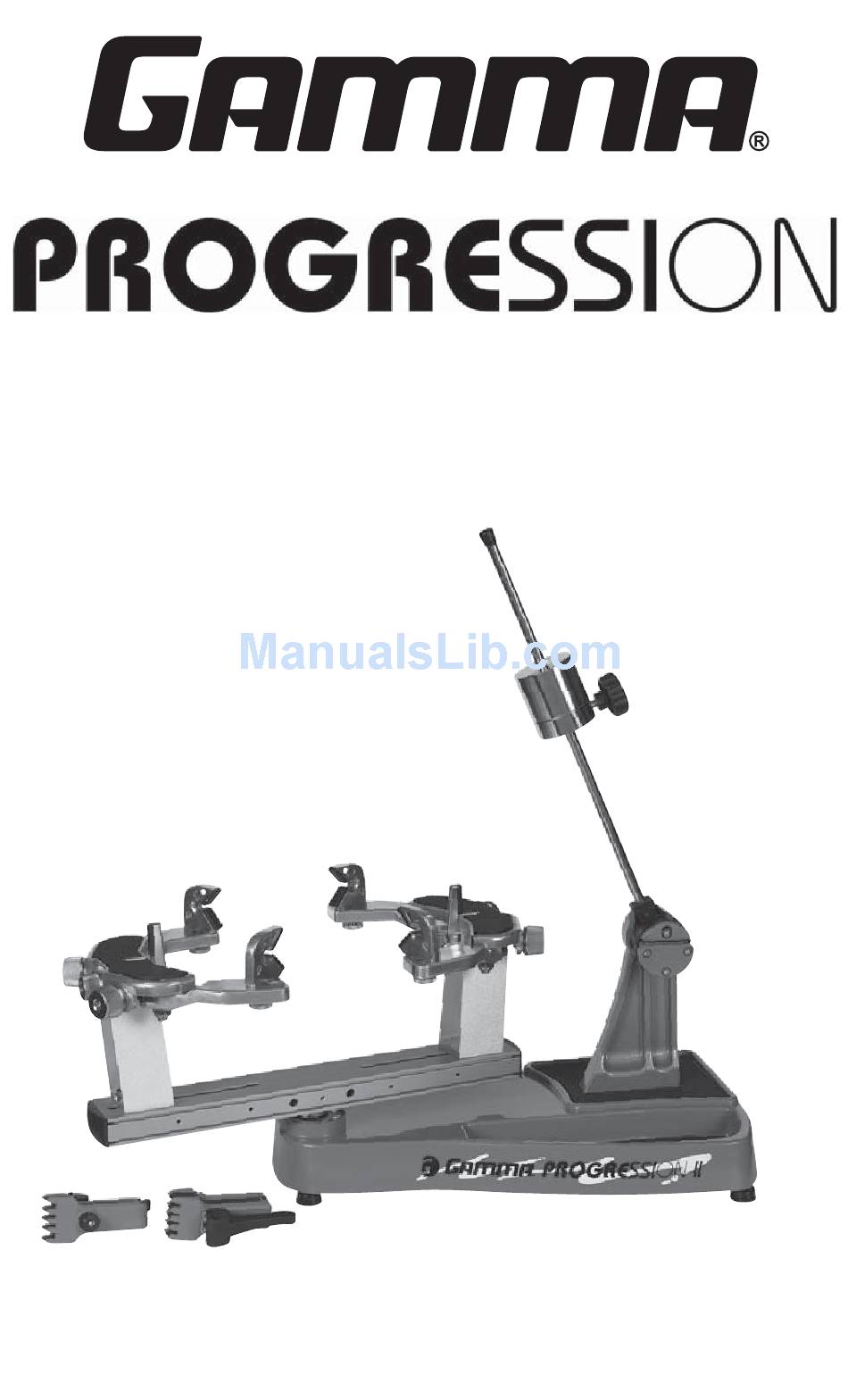

602
STRINGING MACHINE
OWNER'S MANUAL
Issue 5 - November 2012

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Progression 602 and is the answer not in the manual?

Questions and answers

Related Manuals for Gamma Progression 602

Summary of Contents for Gamma Progression 602

  • Page 1 STRINGING MACHINE OWNER'S MANUAL Issue 5 - November 2012...

  • Page 3: Table Of Contents

    Should any defects develop under normal use within the specifi ed time periods, GAMMA will at its option, repair or replace the defective EQUIPMENT provided it is returned to GAMMA prepaid at the purchaser's expense.

  • Page 4: Features

    FEATURES MACHINE FEATURES  Drop Weight Tensioner with 9 to 90 lbs range and Permanently Engraved Weight Scale  Patented Parallel Jaw Rotating Ratchet Gripper with Diamond Dust Coated Gripping Surfaces  Professional Six Point “Quick Mount” Racquet Mounting System- Accommodates All Racquets ...

  • Page 5: Assembly Instructions

    ASSEMBLY INSTRUCTIONS Engaging the Drop Weight Bar Stop The stringing machine is shipped with the drop weight bar in the horizontal position. To prevent racquet damage during stringing, the bar stop must be engaged. Remove the machine base from the shipping carton being careful to avoid lifting by the plastic cover.
  • Page 6 MOUNTING THE FRAME Frame Shoulder Support Adjustment Being sure the shoulder supports are free to swivel in their mountings, simultaneously rotate the shoulder support adjustment knobs clockwise until both shoulder supports gently and squarely contact the frame. Frame Shoulder Support Adjustment The shoulder supports are designed to rotate and can be adjusted to provide maximum support to the racquet frame.

  • Page 7: Stringing The Frame

    STRINGING THE FRAME Setting Tension To set the stringing tension, loosen the locking knob on the side of the drop weight. Slide the weight in the appropriate direction until the face closest to the string gripper is indexed with the desired tension mark on the tension bar.
  • Page 8 STRINGING THE FRAME Gripping the String While holding the tension bar slightly above horizontal, wrap the free string clockwise around the gripper drum once and position between the gripper jaw. Gently turn the gripper clockwise while squeezing the jaws together until all slack in the string is removed.
  • Page 9 STRINGING THE FRAME Clamping the First Main String Secure the tensioned main string using the remaining fi xed clamp. Repeat the procedure for all of the remaining main strings and tie off following the racquet manufacturers recommendations. Follow the manufacturer's recommended stringing pattern for one or two piece stringing.
  • Page 10 ADDITIONAL FEATURES Badminton Shoulder Support Protec- tion Pad Installation Slide the badminton shoulder support cover over the shoulder supports. There is no need to remove the tennis shoulder supports. Note: An optional badminton frame support for the head of the racquet is available.

  • Page 11: Pathfinder Awl

    PATHFINDER AWL The machine includes the pathfi nder string- ing awl which creates a pathway between or around strings to make inserting a string through blocked grommets easier and quicker. Insert the awl through the grommet hole in the same manner as for traditional awls. The Pathfi...

  • Page 12: Maintenance

    MAINTENANCE & ADJUSTMENTS Adjusting the Turntable Bushings The turntable bushing is adjusted at the fac- tory for optimum performance. After time and use, the turntable bushings may need minor adjustment. An adjustment is indicated when noticeable turntable looseness or wobble occurs while stringing.

  • Page 13: Troubleshooting Tips

    TROUBLESHOOTING TIPS PROBLEM SOLUTION String slips in clamps - Adjust gap between clamp jaws - Clean clamp jaws String slips in gripper - Clean gripper jaws - Make sure string is wrapped over top gripper prior to inserting between gripper jaws String clamp base slips on turntable - Clean bottom of clamp &...

  • Page 14: Parts List

    PARTS LIST PART # DESCRIPTION PART # DESCRIPTION TURNTABLE BUSHING MPFC FLOATING CLAMP RUBBER FOOT MRSG ROTATIONAL GRIPPER CAP SCREW BUSHING SET SCREW WASHER- M8 WINDER STAND WASHER- M10 TOOLS & ACCESSORIES FRAME SUPPORT SLIDE 6MM T-AHNDLE HEX WRENCH TENSION BAR 10MM WRENCH* TENSION BAR CAP UTILITY KNIFE*...

  • Page 15: Parts Drawing

    PARTS DRAWING MMSPP13 140 357 MRSG 146A MPFC MFSPP11 MBMSP11...
  • Page 16 MMAN-33 (MP602-12) GAMMA SPORTS 200 Waterfront Drive Pittsburgh, Pennsylvania 15222 Phone : 800.333.0337 Fax : 412.323.0317 Visit our website at www.gammasports.com Copyright 2012 GAMMA Sports - All Rights Reserved...
