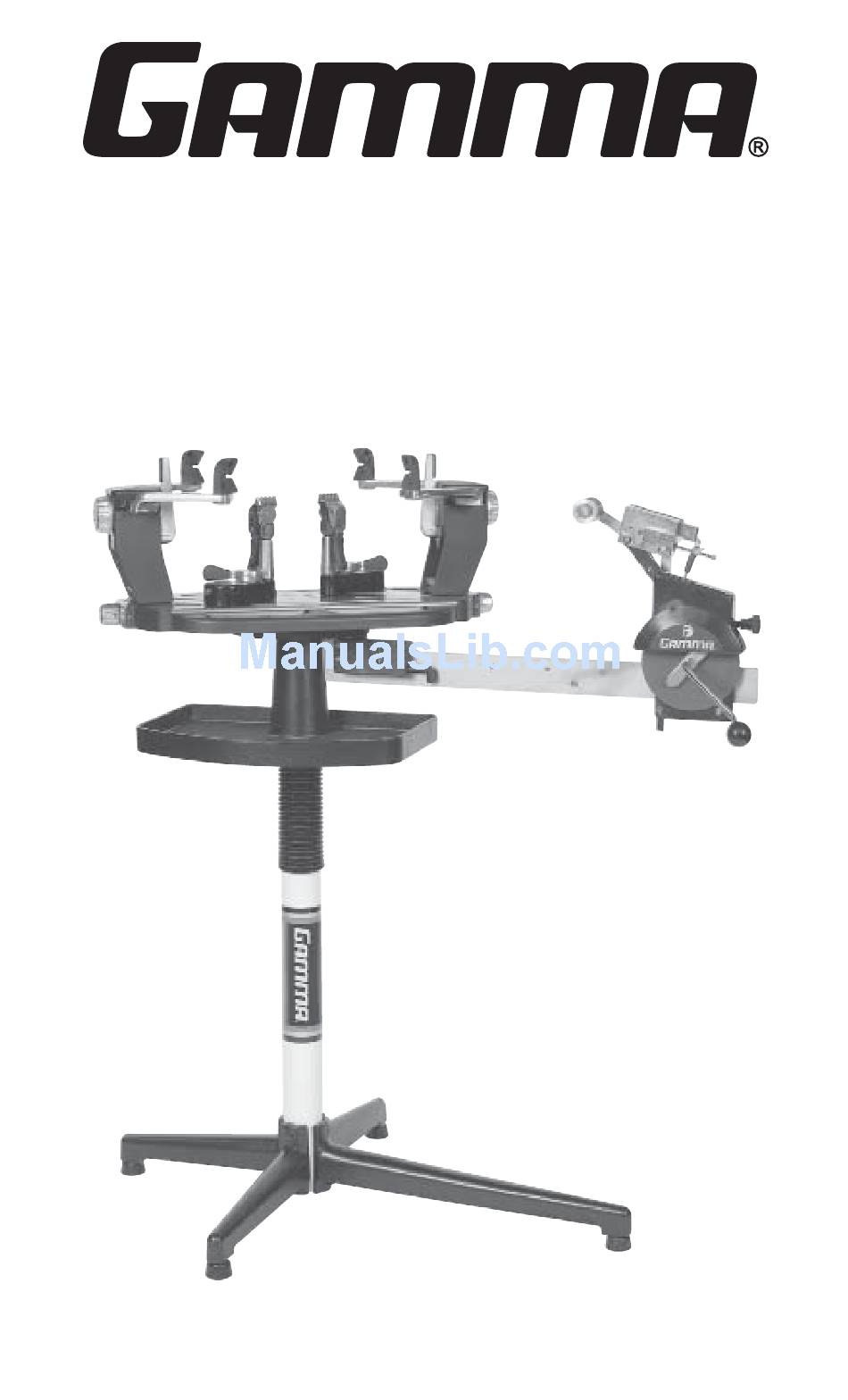

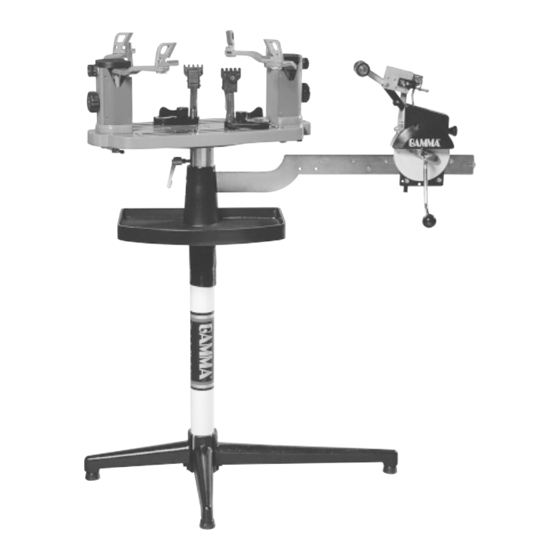

6004
STRINGING MACHINE
6 POINT SC MOUNTING
OWNER'S MANUAL
Issue 11A - February 2014

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 6004 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Gamma 6004

Summary of Contents for Gamma 6004

  • Page 1 6004 STRINGING MACHINE 6 POINT SC MOUNTING OWNER’S MANUAL Issue 11A - February 2014...

  • Page 2: Table Of Contents

    GAMMA will at its option, repair or replace the defective EQUIPMENT provided it is returned to GAMMA prepaid at the purchaser’s expense. This warranty does not apply to any damage or defect caused by negligence, abuse, misuse, unauthorized alteration, shipping, handling or part wear and tear as a result of normal use.

  • Page 3: Features

    MACHINE FEATURES MACHINE FEATURES  Manual Spring Tension Winder with 11 to 89 lbs Tension Range  Patented Roller Guide for Maximum Accuracy and Consistency  Parallel Jaw Gripper with Diamond Dust Coated Gripping Sur- faces  Professional Six Point Self-Centering “Suspension Mount” Rac- quet Mounting System- Accommodates All Racquets ...

  • Page 4: Package Contents

    fl oor stand, base legs, tensioner and accessories. The Mounting System Carton has the turntable, clamps and mounting system. Please save the cartons and packing materi- als for possible shipments in the future. Gamma Sports cannot be responsible for machines that are not returned, shipped in their original, undamaged packaging. The tools you will need to assemble the machine are provided with the machine.

  • Page 5: Assembly Instructions

    The legs must be assembled to the lower column support before use. This is the larger of the two posts with the GAMMA label. Align the holes in the leg fl ange with the matching holes in the lower column support post.
  • Page 6 ASSEMBLY INSTRUCTIONS Bellows Installation The bellows assembly is supplied in two pieces and should be assembled as follows. Place the bellows section with the fl ange over the upper support column with the fl ange on the top. Place the remaining bellows over the upper support column and mate it with the fl...
  • Page 7 ASSEMBLY INSTRUCTIONS Turntable and Mounting System Installation To install the turntable position the turntable over the turntable pin and align the bolts, located in the poly bag, with the holes in the fl ange. Secure them with the included hex wrench. String Clamp Installation The post of the string clamp and tube of the string clamp base are treated with grease to...

  • Page 8: Mounting The Frame

    ASSEMBLY INSTRUCTIONS Height Adjustment The turntable height can be adjusted to suit the stringer. To adjust, loosen the two set screws on the lower column support post below the bellows assembly. Adjust the amount of engagement between the upper and lower column supports until the desired height is attained.
  • Page 9 MOUNTING THE FRAME Frame Shoulder Support Adjustment The shoulder supports are designed to rotate and can be adjusted to provide maximum support to the racquet frame. Rotate the support so that the pads contact the frame squarely when the arms are closed against the racquet.

  • Page 10: Stringing The Frame

    STRINGING THE FRAME Clamp Base Operation Rotate the base locking lever clockwise to secure the clamp base to the turntable. Reverse the clamping procedure to unlock the string clamp. The locking lever is spring loaded to assist the unlocking of the clamp base.
  • Page 11 STRINGING THE FRAME Setting the Gripper Jaw Spacing The gripper jaws of the tensioner are adjust- able to accommodate varying string gauges. If the string slips through the gripper jaws while pulling tension, rotate the gripper jaw adjustment screw counter-clockwise. If the string is damaged while pulling ten- sion, rotate the gripper jaw adjustment screw clockwise.
  • Page 12 STRINGING THE FRAME Pulling Tension Wrap the loose section of string once around the roller and insert the string between the diamond dust coated string gripper plates. Pull the string perpendicular to the gripper plates while slowly rotating the tensioner crank clockwise until the brake lever pops out of the latching block.

  • Page 13: Additional Features

    ADDITIONAL FEATURES Locking the Turntable The turntable may be locked in any position. Rotate the lever down to lock the turntable and up to release the turntable. PATHFINDER AWL The machine includes the pathfi nder string- ing awl which creates a pathway between or around strings to make inserting a string through blocked grommets easier and quicker.

  • Page 14: Maintenance & Adjustment

    MAINTENANCE & ADJUSTMENTS Tension Calibration Procedure Set the tension to 60 lbs. as indicated by the linear scale and rotary knob. Place the string on one end of a tension calibrator into a string clamp and secure. Place string located on the other end of the calibrator into the string tensioner and apply tension.
  • Page 15 It can be accessed through the hole on the face of the tensioner cover (above the ‘GAMMA’ logo). Note: The tensioner cover does not need to be removed for the adjustment. The cover has been removed in the pictures for illustra- tion purposes.
  • Page 16 MAINTENANCE & ADJUSTMENTS String Clamp Adjustment The string clamps will need minor adjust- ments according to string type, construction, and gauge. To adjust the gap (clamping pressure) between the clamp jaws, insert the string through the racquet as if you were beginning the main strings.

  • Page 17: Troubleshooting Tips

    TROUBLESHOOTING TIPS PROBLEM SOLUTION String slips in clamps - Adjust gap between clamp jaws - Clean clamp jaws String slips in gripper - Adjust gripper jaw stop screw - Clean gripper jaws String clamp base slips on turntable - Clean bottom of clamp & top of turntable with alcohol - Adjust clamp base locking nut String tension too tight or too loose...

  • Page 18: Parts List

    PARTS LIST PART # DESCRIPTION TOOLS & ACCESSORIES CAP SCREW- M8x30 10MM WRENCH* 104A TENSIONER ASSEMBLY NEEDLE NOSE PLIERS* RETAINER SCREW BENT NOSE PLIERS* TOOL TRAY DIAGONAL CUTTERS* LONG LEG HEX WRENCH SET* SHORT LEG STRINGER’S AWL* MBMSP11 BADM SHLDER SUPP COVER FLAT HEAD SCREW- M8x25 MFSPP13 FRAME SUPP PAD SET...

  • Page 19: Parts Drawing

    PARTS DRAWING 104A 146A MDCSC13 MSAC11 MMSPP13 120A MFSPP13 MBMSP11...
  • Page 20 MMU2-89 (MG63-17) GAMMA SPORTS 200 Waterfront Drive Pittsburgh, Pennsylvania 15222 Phone: 800.333.0337 Fax: 412.323.0317 Visit our website at www.gammasports.com Copyright 2014 GAMMA Sports - All Rights Reserved...
