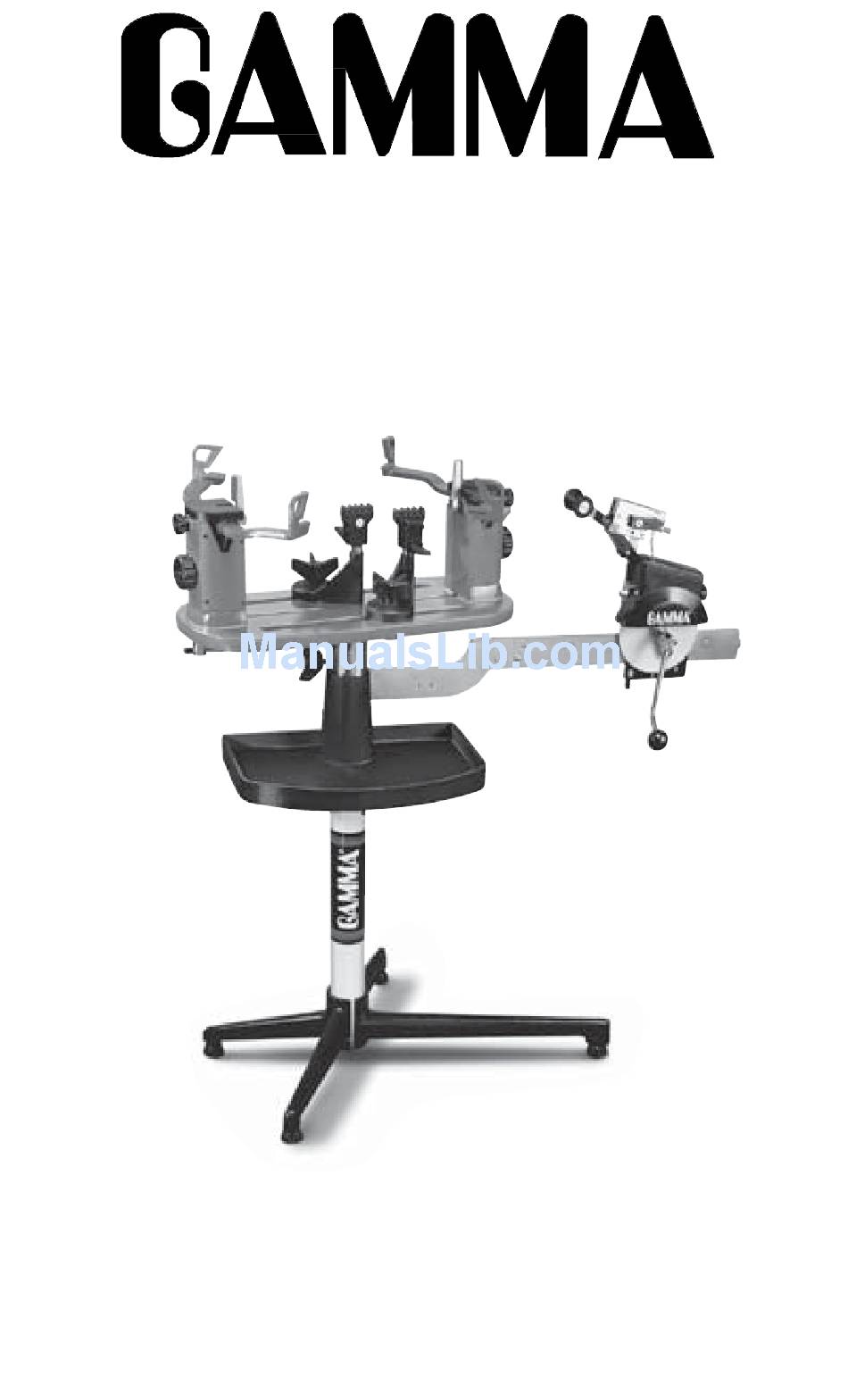

- Page 1 6002 STRINGING MACHINE OWNER'S MANUAL Issue 3 - June 20, 1998 Copyright 1998 GAMMA Sports - All Rights Reserved...
- Page 2 (1) year from the date of purchase for string clamps. Should any defects develop under normal use within the specified time periods, GAMMA will at its option, repair or replace the defective EQUIPMENT provided it is returned to GAMMA prepaid at the purchaser's expense. This warranty does not apply to any damage or defect caused by negligence, abuse, misuse, unauthorized alteration, shipping, handling, or part wear and tear as a result of normal use.
-
Page 3: Features
FEATURES Manual Spring Tensioner Diamond Coated String Gripper Tension Range: 11lbs. - 89lbs. 6 Point Suspension Mounting System ( 10 Point Support ) Diamond Coated Dual Action Swivel Composite String Clamps Full 360 Degree Turntable Rotation Precision Bearing Mounted Turntable Large Convenient 141 sq. -
Page 4: Assembly Instructions
ASSEMBLY INSTRUCTIONS Base Leg Assembly The GAMMA 6002 stringing machine uses a four leg base design. The legs must be assembled to the support post before use. Remove the lower column support from the carton. This is the larger of the two posts and has the GAMMA label. - Page 5 ASSEMBLY INSTRUCTIONS Bellows Installation The bellows assembly is supplied in two pieces and should be assembled as follows. Place the bellows section with the flange over the upper support column with the flange on the top. Place the remaining bellows over the upper support column and mate it with the flange on the lower bellows.
- Page 6 ASSEMBLY INSTRUCTIONS Turntable Brake Installation Remove the flat head screw from the end of the brake lever bolt and install the brake lever bolt into the threaded hole located on the side of the turntable tube. Place the brake pad into the turntable tube, then insert the end of the brake leverbolt into the hole of the brake pad so that the brake pad rests on the shoulder of the bolt.
- Page 7 ASSEMBLY INSTRUCTIONS Retract the four set screws around the top of the turntable tube to provide clearancefor installing the turntable. Carefully lower the turntable into the tube until it seats fully into the tube and rests against the bearing lo- cated at the botom of the tube.
- Page 8 ASSEMBLY INSTRUCTIONS Support Post Installation The support post assemblies are precision aligned at the factory and are marked for proper installation on the turntable. Install the marked support post on the marked side of the turntable. Align the threaded hole in the bottom of the support post with the slot in the turntable.
- Page 9 ASSEMBLY INSTRUCTIONS Installing the Tensioner Remove the button head screw and washer located at the end of the tensioner bar with the 3 mm hex wrench provided. Slide the tensioner onto the bar, being careful to align the bar with all of the bearings and the drive gear with the gear track.
-
Page 10: Mounting The Frame
MOUNTING THE FRAME Height Adjustment The turntable height of the GAMMA 6002 can be adjusted to suit the stringer. To adjust, loosen the two set screws on the lower col- umn support post below the bellows assem- bly. Adjust the amount of engagement be- tween the upper and lower column supports until the desired height is attained. - Page 11 MOUNTING THE FRAME Support Slide Adjustment Once the frame support posts are secured, lightly tighten the support slides by turning the knobs on the outside of the slides clock- wise. Adjust the slides in equal increments until slight resistance is felt. Apply a final adjustment to all racquet sup- port points until the racquet is firmly secured in the mounting system.
-
Page 12: Stringing The Frame
“2” or “1” mark on the knob aligns with the line on the knob support. Fixed Clamp Operation The fixed clamps supplied with your GAMMA 6002 are of a dual action design. The string clamp and the clamp base operate indepen- dently of one another. - Page 13 STRINGING THE FRAME Pulling Tension Wrap the loose section of string once around the DIABLO and insert the string between the diamoind dust coated string gripper plates. Pull the string perpendicular to the gripper plates while slowly rotating the tensioner crank clockwise until the brake lever pops out of the latching block.
-
Page 14: Pathfinder Awl
PATHFINDER AWL The GAMMA 6002 includes the new Path- finder stringing awl which creates a pathway between or around strings and through tight grommets. Insert the awl through the grommet hole in the same manner as for traditional awls. The Pathfinder awl must be closed before inser- tion. - Page 15 MAINTENANCE Tension Calibration Procedure Step 1 Set the tension to 60 lbs. as indicated by the linear scale and rotary knob. Place the string on one end of a tension calibrator into a string clamp and secure. Place string located on the other end of the calibrator into the string tensioner and apply tension.
- Page 16 MAINTENANCE Adjusting the Tensioner Brake Step 1 After stringing many racquets, the brake of the tensioner may need to be adjusted. To tighten the braking mechanism, the cover of the tensioner must be removed. To remove the cover, remove the 2 button head screws located on the back side of the tensioner frame near the top of the frame, and the flat head screw located behind the tensioner...
-
Page 17: Troubleshooting
- Check tension using a tension calibrator and adjust machine calibration if necessary For additional assistance, contact Gamma Sports Customer Service at 1-800-333-0337 CARE and CLEANING With time and use, the clamping surfaces of your machine may become oily or dirty and result in string or clamp slippage while stringing. - Page 18 COMPONENTS 122A...
-
Page 19: Parts Listing
6002 Parts Listing Part # Description Cap Screw - M8 x 30 Washer - M8 Locking Lever Frame Support Slide SM Tennis Frame Support Slide SM Badminton Support Adaptors Black Clamp Head Assembly Clamp Base Guide Bushing Guide Bushing Nut...
