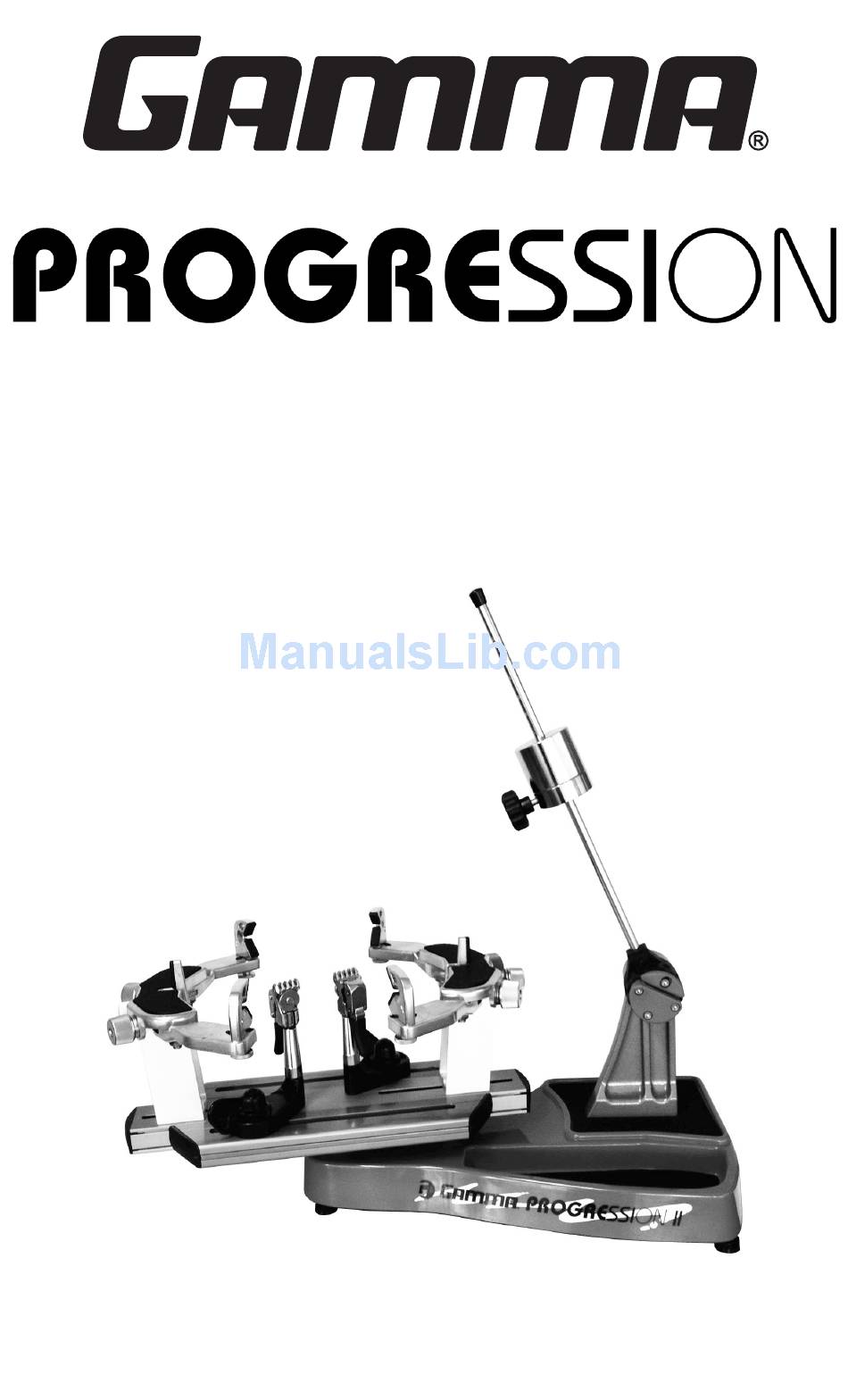

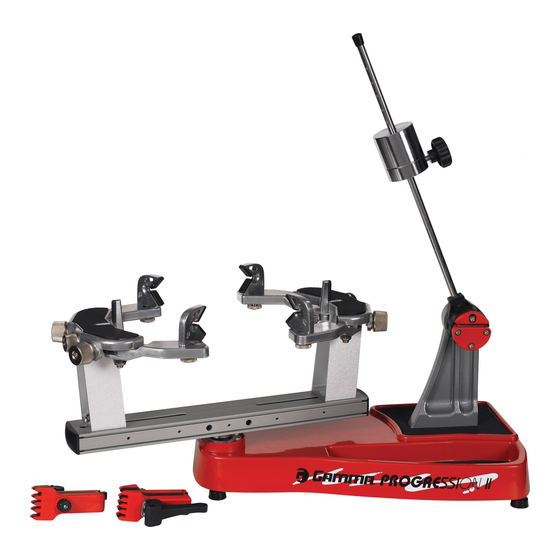

- Page 1 602FC STRINGING MACHINE OWNER'S MANUAL Issue 7 - June 2014...
-
Page 3: Table Of Contents
Should any defects develop under normal use within the specified time periods, GAMMA will at its option, repair or replace the defective EQUIPMENT provided it is returned to GAMMA prepaid at the purchaser's expense. -
Page 4: Features
FEATURES MACHINE FEATURES Drop Weight Tensioner with 9 to 90 lbs range and Permanently Engraved Weight Scale Patented Parallel Jaw Rotating Ratchet Gripper with Diamond Dust Coated Gripping Surfaces Professional Six Point “Quick Mount” Racquet Mounting System- Accommodates All Racquets Professional “Quick Action”... -
Page 5: Assembly Instructions
ASSEMBLY INSTRUCTIONS Engaging the Drop Weight Bar Stop The stringing machine is shipped with the drop weight bar in the horizontal position. To prevent racquet damage during stringing, the bar stop must be engaged. Remove the machine base from the shipping carton being careful to avoid lifting by the plastic cover. - Page 6 MOUNTING THE FRAME Tightening the Center Supports Tighten the Center Supports by turning the adjustment knob clockwise until slight resistance is felt. Caution: Overtightening the Center Supports may cause racquet damage. Frame Shoulder Support Adjustment Being sure the shoulder supports are free to swivel in their mountings, simultaneously rotate the shoulder support adjustment knobs clockwise until both shoulder supports gently...
-
Page 7: Stringing The Frame
STRINGING THE FRAME Setting Tension To set the stringing tension, loosen the locking knob on the side of the drop weight. Slide the weight in the appropriate direction until the face closest to the string gripper is indexed with the desired tension mark on the tension bar. - Page 8 STRINGING THE FRAME Base Clamp Operation Rotate the lever lock clockwise to secure the clamp base to the turntable. Reverse the clamping procedure to unlock the string clamp. The lever should be tightened enough to prevent clamp base slippage on the turn- table, when the desired tension is placed on the string.
- Page 9 STRINGING THE FRAME Pulling Tension While securely holding the string gripper drum with your hand, lift the tension bar above horizontal and gently lower the bar under its own weight. If the tension bar drops below horizontal, repeat the above action until the bar comes to rest parallel to the racquet.
- Page 10 STRINGING THE FRAME Weaving the Cross Strings Weave the cross strings over and under the main strings being careful to alternate the weave direction of each consecutive cross string so as to be opposite of the previously installed cross string. Once the final cross string is tensioned and clamped, tie off at the appropriate hole speci- fied by the racquet manufacturer.
-
Page 11: Pathfinder Awl
PATHFINDER AWL The machine includes the pathfinder string- ing awl which creates a pathway between or around strings to make inserting a string through blocked grommets easier and quicker. Insert the awl through the grommet hole in the same manner as for traditional awls. The Pathfinder awl must be in the closed position before insertion. -
Page 12: Maintenance
MAINTENANCE & ADJUSTMENTS Adjusting the Turntable Bushings The turntable bushing is adjusted at the fac- tory for optimum performance. After time and use, the turntable bushings may need minor adjustment. An adjustment is indicated when noticeable turntable looseness or wobble occurs while stringing. -
Page 13: Troubleshooting Tips
TROUBLESHOOTING TIPS PROBLEM SOLUTION String slips in clamps - Adjust gap between clamp jaws - Clean clamp jaws String slips in gripper - Clean gripper jaws - Make sure string is wrapped over top gripper prior to inserting between gripper jaws String clamp base slips on turntable - Clean bottom of clamp &... -
Page 14: Parts List
PARTS LIST PART # DESCRIPTION PART # DESCRIPTION MDCSC13 UNIV DIECAST STRING CLAMP TURNTABLE BUSHING MQAC11 QUICK ACTION BASE- TALL RUBBER FOOT MRSG ROTATIONAL GRIPPER CAP SCREW- M8x25 BUSHING SET SCREW WASHER- M8 WINDER STAND WASHER- M10 TOOLS & ACCESSORIES FRAME SUPPORT SLIDE 6MM T-AHNDLE HEX WRENCH* TENSION BAR... -
Page 15: Parts Drawing
PARTS DRAWING MMSPP13 146A MRSG MDCSC 13 MQAC11 MFSPP11 MBMSP11... - Page 16 MMAN-44 (MP62F-13) GAMMA SPORTS 200 Waterfront Drive Pittsburgh, Pennsylvania 15222 Phone : 800.333.0337 Fax : 412.323.0317 Visit our website at www.gammasports.com Copyright 2014 GAMMA Sports - All Rights Reserved...
