INSTALLATION REQUIREMENTS

INSTALLATION CLEARANCES

When selecting the installation location for the Tungsten
Smart-Heat Gas Heaters, the following mounting clearances
should be followed.
Care should be taken to ensure that the heater is not
installed:
• Where heat/ignition can cause damage to gas cylinders/
lines
• Near other combustible materials
• In open locations subject to rain
• In indoor residential locations
• In areas without sufficient clearances (refer below)

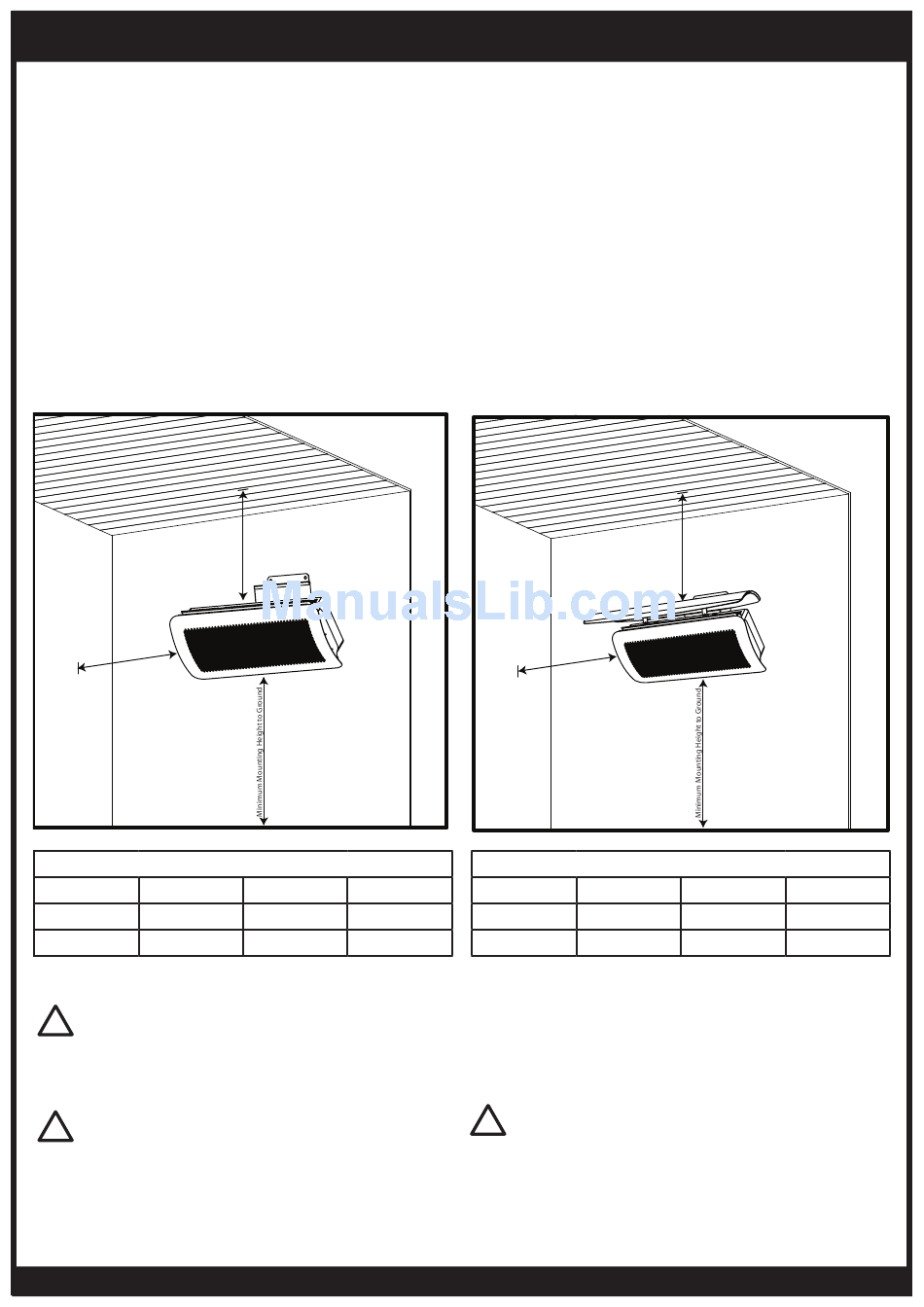

Note: When Installing with No protective cover, the following
installation clearances shall apply:
B
Minimum height to combustible materials
Model A
300 1100mm
500 1100mm
*Bromic recommended minimum installation height. Local authority
regulations and building codes must be checked prior to installation
!
IMPORTANT
For Non Domestic Indoor Application. The Ventilation must
be in accordance with EN 13410
IMPORTANT
!
This appliance must only be used in a well ventilated area.
8
CONTINUED...
A
C
B C
1100mm 2500mm*
1100mm 2500mm*
Note: Heater should be installed in such a way so as to allow
adequate;
• Clearance around air openings to combustion chamber
• Clearance from combustible material
• Provisions for accessibility and clearance for combustion
and ventilating air supply.
Note: When installing with the Tungsten Smart-Heat Gas
Heat Shield (Part No. 2620165 or 2620166) the following
installation clearances Shall Apply:
B
Minimum height to combustible materials
Model A
300 350mm
500 350mm
*Bromic recommended minimum installation height. Local authority
regulations and building codes must be checked prior to installation
Note: Minimum room size (EN13410:2001) The installation
room shall have a volume of at least 10m3/kW of installed
nominal heat input of the radiant heaters.
IMPORTANT
!
Minimum room volume requirements must be confirmed
with local authorities.
A
C
B C
1100mm 2500mm*
1100mm 2500mm*
