GAS HEATER
BY BROMIC
INSTALLATION, INSTRUCTION AND
SERVICE MANUAL
SUITABLE FOR GAS RADIANT HEATER MODELS:
If you smell gas:
3.
If odour continues, keep away from the
appliance and immediately call your gas
!
WARNING: For Outdoor Use Only.
This appliance shall not be installed or
used indoors.
Version 2.2 EUROPE
DANGER
!
WARNING
!
and liquids in the vicinity of this or any other
appliance.
An LP-cylinder not connected for use shall not be
stored in the vicinity of this or any other appliance.
!
!
WARNING: Improper installation,
WARNING: Improper installation,
adjustment, alteration, service or maintenance
adjustment, alteration, service or maintenance
can cause property damage, injury or death.
can cause property damage, injury or death.
Read the installation, operating and
Read the installation, operating and
maintenance instructions thoroughly before
maintenance instructions thoroughly before
installing or servicing this equipment.
installing or servicing this equipment.
Advertisement
Table of Contents
Related Manuals for Bromic Heating tungsten smart-heat
Summary of Contents for Bromic Heating tungsten smart-heat
- Page 1 GAS HEATER BY BROMIC INSTALLATION, INSTRUCTION AND SERVICE MANUAL SUITABLE FOR GAS RADIANT HEATER MODELS: WARNING DANGER If you smell gas: and liquids in the vicinity of this or any other appliance. An LP-cylinder not connected for use shall not be stored in the vicinity of this or any other appliance.
- Page 2 Note: Bromic Heating Pty Ltd reserves the right to make changes to specifications, parts, components and equipment without prior notification. This Installation, operation and service manual may not be reproduced in any form without prior written consent from Bromic Heating Pty Ltd.
-
Page 3: Table Of Contents
CONTENTS IMPORTANT NOTES & WARNINGS PRODUCT OVERVIEW SPECIFICATIONS PRODUCT DESCRIPTION GENERAL INFORMATION PRODUCT FEATURES INSTALLATION REQUIREMENTS GAS REQUIREMENTS INSTALLATION CLEARANCES INSTALLATION INSTRUCTIONS HEATER INSTALLATION INSTRUCTIONS GAS SUPPLY INSTALLATION POWER SUPPLY INSTALLATION LEAKAGE TEST HEAT DEFLECTOR INSTALLATION INSTRUCTIONS CEILING MOUNT POLE INSTALLATION INSTRUCTIONS OPERATING INSTRUCTIONS TURNING THE APPLIANCE ON TURNING THE APPLIANCE OFF... -
Page 4: Important Notes & Warnings
IMPORTANT NOTES AND WARNINGS • Do not use the heater until all connections have been WARNING leak tested by an authorized person. • Inspect the hose assembly before each use of the • THIS APPLIANCE SHALL NOT BE INSTALLED OR USED appliance. -
Page 5: Product Overview
PRODUCT OVERVIEW SPECIFICATIONS ( Table 1 ) Tungsten Smart-Heat 300 Gas type G31 PROPANE G20 NATURAL GAS G30 BUTANE /G31 PROPANE G20 NATURAL GAS² ³ G25 NATURAL GAS² Gas Category (30) (37) (50) (20) (20) (25) (20/25) (30) (50) 3B/P... -
Page 6: Product Description

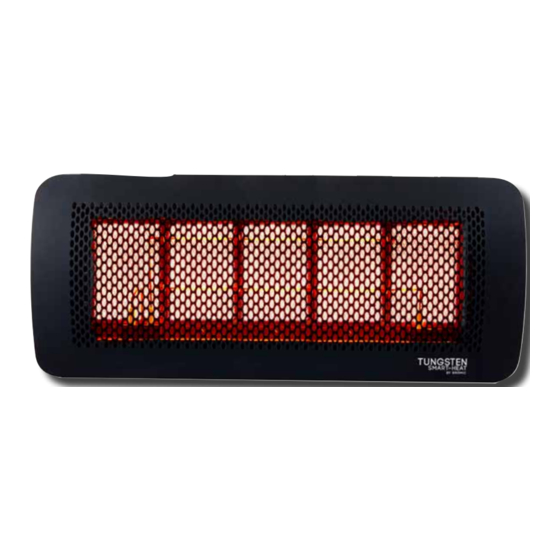

PRODUCT OVERVIEW PRODUCT DESCRIPTION The Tungsten Smart-Heat Series Gas Radiant Heaters are designed to provide effective heating. The heaters incorporate full function electronic controls, allowing them to be operated remotely from a conveniently located switch. The heaters have been designed to withstand the rigors of the outdoors. -
Page 7: Installation Requirements
• The approved inlet pressure to the appliance the surface area open. The surface area is the sum of the walls surface. Tungsten Smart-Heat Natural Gas Models: • Use Natural Gas Only • The approved inlet pressure to the appliance “The tubing or the flexible hose must be changed within the... -
Page 8: Installation Clearances
• In open locations subject to rain • In indoor residential locations Note: When installing with the Tungsten Smart-Heat Gas • In areas without sufficient clearances (refer below) Heat Shield (Part No. 2620165 or 2620166) the following installation clearances Shall Apply:... -
Page 9: Installation Instructions
INSTALLATION INSTRUCTIONS HEATER INSTALLATION INSTRUCTIONS Connect approved Flexible Connector supplied) to the inlet fitting on the heater using 2 WARNING wrenches to tighten. Leak Test by applying compressed air 60mbar to open end of flexible hose. Spray gas This appliance must be installed and used in accordance fittings with a soapy water solution and Check for leaks. - Page 10 INSTALLATION INSTRUCTIONS CONTINUED... Attach Heater to Wall Bracket/Control Housing Connect an approved flexible connector to the Gas Valve Outlet Fitting • Remove Front Cover from Control Housing • Position heater and hose so that the gas hose and • Attach Heater to Wall Bracket/Control Housing fitting are in alignment by inserting Mounting Arm into lower channel of Wall Bracket.
- Page 11 INSTALLATION INSTRUCTIONS CONTINUED... For Honeywell Control Insert Pivot Bolt • Position Arm so that the rear hole’s on the mounting • Using a pair of needle nose pliers, grip the white arm and Control Housing are in alignment ionisation terminal as shown, being mindful of the •...
- Page 12 INSTALLATION INSTRUCTIONS CONTINUED... Connect gas inlet fitting to mains gas supply in accordance 10. Main Power supply connection is to completed in line with local gas installation code and gas supply installation with instructions in the “Power supply installation” section of manual. Leak test with soapy water. section of this manual.
-
Page 13: Gas Supply Installation
Verify the type of gas supply complies with the appliance Please Note: rating plate, located at the back of the heater. Tungsten Smart-Heat Gas do not have their own on/off switch. Operation should be controlled via the main power An approved manual isolating valve must be fitted before supply. -
Page 14: Heat Deflector Installation Instructions
INSTALLATION INSTRUCTIONS INSTALLATION INSTRUCTIONS CONTINUED... CONTINUED... LEAKAGE TEST - CONTINUED COMMISSIONING INSTRUCTION (CARRY OUT LEAKAGE TEST IF NOT ALREADY DONE) CHECK GAS PRESSURE WARNING IMPROPER INSTALLATION AND ALTERATION CAN CAUSE INJURY AND PROPERTY DAMAGES. READ THE INSTALLATION AND OPERATING MANUAL THOROUGHLY BEFORE INSTALLING THE HEATER. - Page 15 CEILING POLE INSTALLATION Mount Top Bracket to ceiling or support beam using suitable fixings no less than 60mm length. WARNING When mounting ceiling pole, ensure the anchoring to the structure is of sufficient strength, quality and workmanship to support the weight of the heater and any other load that could be applied to the fixture.
-
Page 16: Operating Instructions
Note: A slight variation in colour is to be expected. EXTERIOR SERVICING The exterior Tungsten Smart-Heat Series Heater components are constructed from stainless steel, and high temperature coated black paint. For all exterior black parts (excluding fascia trims), a brushed finish has been used. This is not a coating and under prolonged use, may slightly discolour from high temperatures emitted by the heater. -
Page 17: Optimum Mounting Distance
IMPORTANT Replacement parts can be purchased to restore the heater to its original appearance from Tungsten Heating Pty Ltd. (Refer Do not apply any additional surface coating to the heater under any to parts list in manual). circumstances. Use of additional coating other than those applied during manufacture could result in hazardous reactions such as toxic fumes or fires. -
Page 18: Honeywell Valve
OPERATION DATA - HONEYWELL CONTROL BOX CONTINUED... Directions for use Operation • Automatic controls are safety devices and shall not be At every start, the control unit proceeds to a self-checking opened. The manufacturer’s responsibility and guarantee of its own components. During the pre-purge or waiting are invalid if the control is unduly opened. -
Page 19: Wiring Diagram
WIRING DIAGRAM - HONEYWELL CONTROL, HONEYWELL GAS VALVE ELECTRICAL DIAGRAM SEE INSTRUCTION MANUAL FOR DETAILS ON HOW TO CONNECT THE ELECTRICAL COMPONENTS. Ionisation Ionisation Ignition + Brown 230 V Blue Blue HONEYWELL White Black Yellow Note: If any of the original wire as supplied with the heater must be replaced, it must be replaced with 18AWG, 90ºC type UL approved wire or its equivalent. -
Page 20: Replacement Parts
REPLACEMENT PARTS Honeywell... - Page 21 Note: For more information on obtaining spare parts contact the place of purchase or Note: For more information on obtaining spare parts contact the place of purchase or BROMIC HEATING BROMIC HEATING Head Office: 1 Suttor Street, Silverwater, Sydney, NSW 2128 Australia Head Office: 1 Suttor Street, Silverwater, Sydney, NSW 2128 Australia...
-
Page 22: Post-Installation Report
FOR TUNGSTEN SMART-HEAT GAS RADIANT HEATERS AFTER HEATER INSTALLATION PLEASE PHOTOCOPY, COMPLETE, & SEND THIS REPORT BY: FAX TO (02) 9748 4289 or BY MAIL TO Bromic Heating Pty Ltd, 1 Suttor Street, Silverwater NSW 2128 Australia or SCAN AND EMAIL TO info@bromicheating.com... -
Page 23: Troubleshooting
TROUBLESHOOTING SYMPTOM POSSIBLE CAUSE CORRECTIVE ACTION Heater will not turn on No power Have authorized electrician check No gas power supply Control module in Lock-out mode Have authorized gas fitter check gas supply See page 17. Reset Honeywell Lock-out Heater turns on, but then cycles on Insufficient flame on ionisation rod and off Drafty conditions... -
Page 24: Appendix A
APPENDIX A Note: For clearance from combustible materials see page 7... - Page 25 APPENDIX A CONTINUED... www.bromicheating.com...
- Page 26 APPENDIX A CONTINUED... Abbreviation Country AUSTRIA BELGIUM BULGARIA SWITZERLAND CYPRUS CZECH REPUBLIC GERMANY DENMARK ESTONIA SPAIN FINLAND FRANCE GREAT BRITAIN GREECE CROATIA HUNGARY IRELAND ICELAND ITALY LITHUANIA LUXEMBOURG LATVIA MALTA NETHERLANDS NORWAY POLAND PORTUGAL ROMANIA SWEDEN SLOVENIA SLOVAKIA TURKEY...
