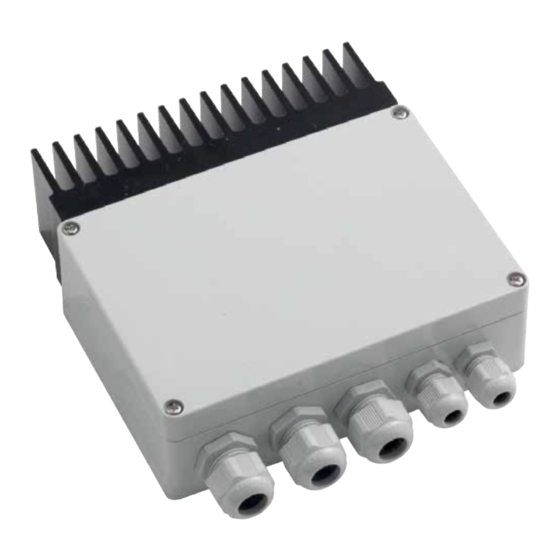

TUNGSTEN SMART-HEAT™
ELECTRIC WIRELESS DIMMER CONTROLLER
BY BROMIC
USER MANUAL
Version 1.2 US
Doc. T646.01
TVHET916A06
IMPORTANT
!
READ THIS MANUAL CAREFULLY.
SEE INSIDE COVER FOR IMPORTANT
INFORMATION ABOUT THIS MANUAL.KEEP
INSTRUCTION WITH APPLIANCE FOR FUTURE
REFERENCE.

Advertisement

loading

Related Manuals for Bromic Heating TUNGSTEN SMART-HEAT

Summary of Contents for Bromic Heating TUNGSTEN SMART-HEAT

  • Page 1 TUNGSTEN SMART-HEAT™ ELECTRIC WIRELESS DIMMER CONTROLLER BY BROMIC USER MANUAL IMPORTANT READ THIS MANUAL CAREFULLY. SEE INSIDE COVER FOR IMPORTANT INFORMATION ABOUT THIS MANUAL.KEEP INSTRUCTION WITH APPLIANCE FOR FUTURE Version 1.2 US REFERENCE. Doc. T646.01 TVHET916A06...
  • Page 2 Note: Bromic Heating reserves the right to make changes to specifications, parts, components and equipment without prior notification. This Installation, operation and service manual may not be reproduced in any form with prior written consent from Bromic Heating. Manufactured by Teleco Automation s.r.l. - Italy - www.telecoautomation.com...

  • Page 3: Table Of Contents

    CONTENTS IMPORTANT NOTES & WARNINGS PRODUCT OVERVIEW INSTALLATION & OPERATION TECHNICAL SPECIFICATIONS WIRING DIAGRAM www.bromicheating.com...

  • Page 4: Important Notes & Warnings

    IMPORTANT NOTES AND WARNINGS WARNING • This appliance must only be used on a 110 - 230 Volt AC Single Phase electricity supply. • Read all instructions before installing or using this heater • This controller is NOT intended to be installed on recreational vehicles and/or boats.

  • Page 5: Product Overview

    PRODUCT OVERVIEW 1 DESCRIPTION The Wireless Dimmer is suitable for resistive and infrared heaters. The controller allows the power output of the heater to be dimmed down for maximum comfort. The control can be used with 110 - 230VAC supply voltages. 1.1 FEATURES Controls ONE 6500W heater at 230VAC (3400W at 110VAC) or Controls TWO 3200W heaters at 230VAC (1700W at 110VAC).

  • Page 6: Installation & Operation

    OPERATION 2.2.2 Programming of 7-channel remote 1. Press P1 once and hold down. A continuous beep will sound. 2. While holding the P1 button (during the continuous beep), press a push button on the 7-channel remote that is going to be programmed. The programming is confirmed by an intermittent sound. All buttons are automatically memorised with a preset configuration as in the above drawing.
  • Page 7 OPERATION 2.2.6 Deleting all remote 1. Press the P2 button two times and hold the P2 button on the second time until the following sound sequence is heard. a. The will be one beep and then followed by a quick and intermittent sound. b.

  • Page 8: Technical Specifications

    TECHNICAL SPECIFICATIONS WIRELESS CONTROLLER Power Supply 110/230VAC 6500W @ 230VAC Max Output Power 3400W @ 110VAC Fuse Protection 32A (FWC high speed, 10 x 38mm) Reception Frequency 916MHz Operating Temperature Range -20/+30°C Maximum Remote Memorised Dimensions 195 x 200 x 75mm Protection Class IP54 45mm...

  • Page 9: Wiring Diagram

    WIRING DIAGRAM RADIO TRANSMISSION INPUT STATUS LED ERROR - When blinking a radio - LED ON when ACTIVE - Fix : overload transmission is received - Blinking : overtemperature Temperature trimmer (see par.8) Safety Lo-Voltage Zone DIP-Switch DANGER (see par.1) Hi-Voltage OUTPUT Level...
