1
PANEL DESCRIPTION

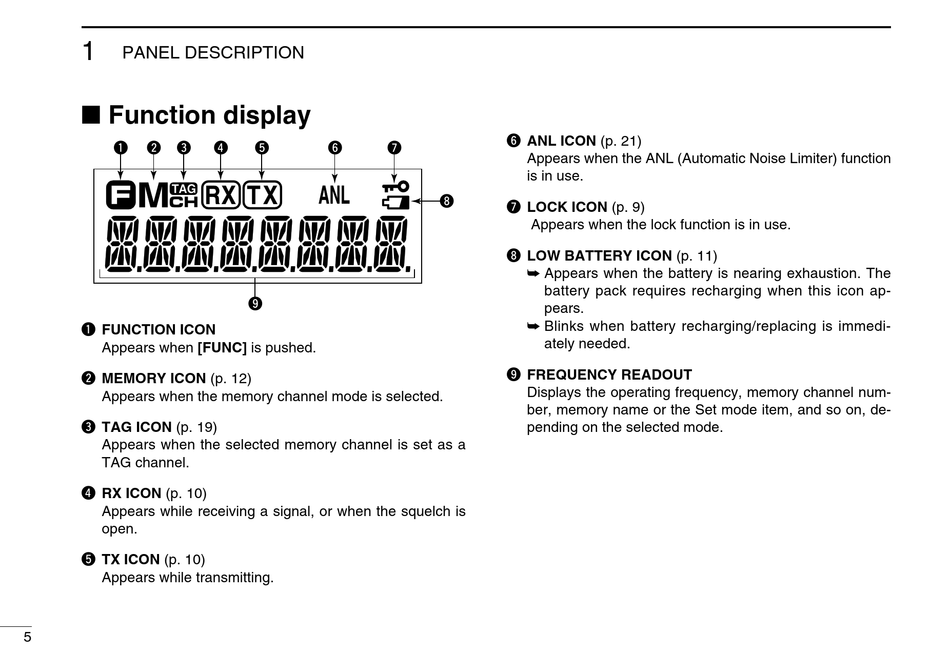

■ Function display
q
w
e
q FUNCTION ICON
Appears when [FUNC] is pushed.
w MEMORY ICON (p. 12)
Appears when the memory channel mode is selected.
e TAG ICON (p. 19)
A ppears when the selected memory channel is set as a
TAG channel.
r RX ICON (p. 10)
Appears while receiving a signal, or when the squelch is
open.
t TX ICON (p. 10)
Appears while transmitting.
5
r
t
y
u
o
y ANL ICON (p. 21)
Appears when the ANL (Automatic Noise Limiter) function
is in use.
i
u LOCK ICON (p. 9)
Appears when the lock function is in use.
i LOW BATTERY ICON (p. 11)
➥ Appears when the battery is nearing exhaustion. The
battery pack requires recharging when this icon ap-
pears.
➥ Blinks when battery recharging/replacing is immedi-
ately needed.
o FREQUENCY READOUT
Displays the operating frequency, memory channel num-
ber, memory name or the Set mode item, and so on, de-
pending on the selected mode.
