Set Mode Setting - Icom IC-A15 Instruction Manual

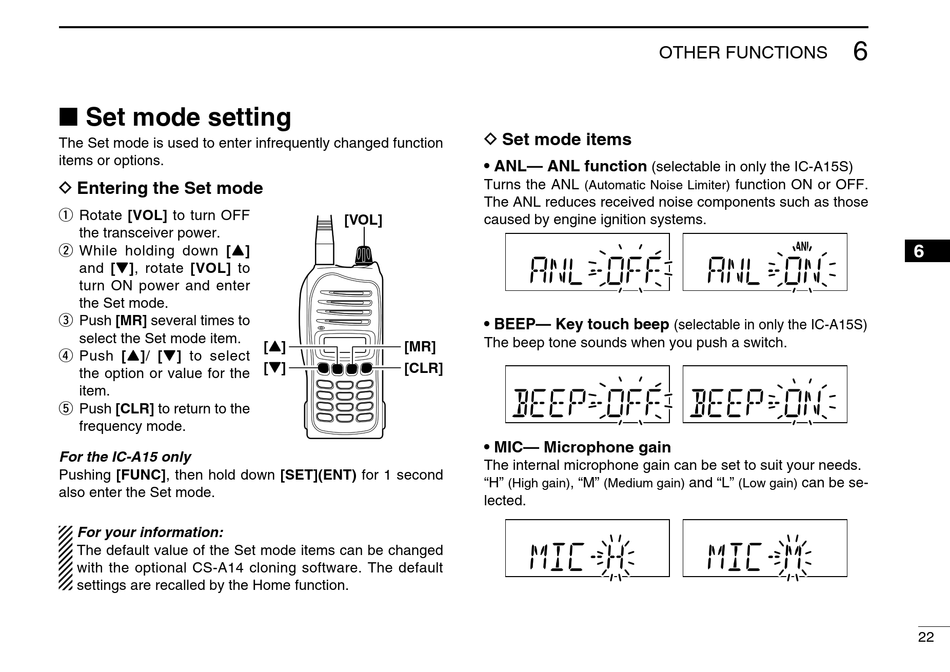

■ Set mode setting

The Set mode is used to enter infrequently changed function
items or options.
D Entering the Set mode
q Rotate [VOL] to turn OFF
the transceiver power.
w While holding down [Y]
and [Z], rotate [VOL] to
turn ON power and enter
the Set mode.
e Push [MR] several times to
select the Set mode item.
r Push [Y]/ [Z] to select
the option or value for the
item.
t Push [CLR] to return to the
frequency mode.
For the IC-A15 only
Pushing [FUNC], then hold down [SET](ENT) for 1 second
also enter the Set mode.
For your information:
The default value of the Set mode items can be changed
with the optional CS-A14 cloning software. The default
settings are recalled by the Home function.
[VOL]
[Y] [MR]
[Z]
[CLR]
OTHER FUNCTIONS
D Set mode items
• ANL— ANL function
(selectable in only the IC-A15S)
Turns the ANL
(Automatic Noise Limiter)
The ANL reduces received noise components such as those
caused by engine ignition systems.
• BEEP— Key touch beep
The beep tone sounds when you push a switch.
• MIC— Microphone gain
The internal microphone gain can be set to suit your needs.
"H" , "M"
(High gain) (Medium gain)
lected.
function ON or OFF.
(selectable in only the IC-A15S)
and "L" can be se-
(Low gain)
