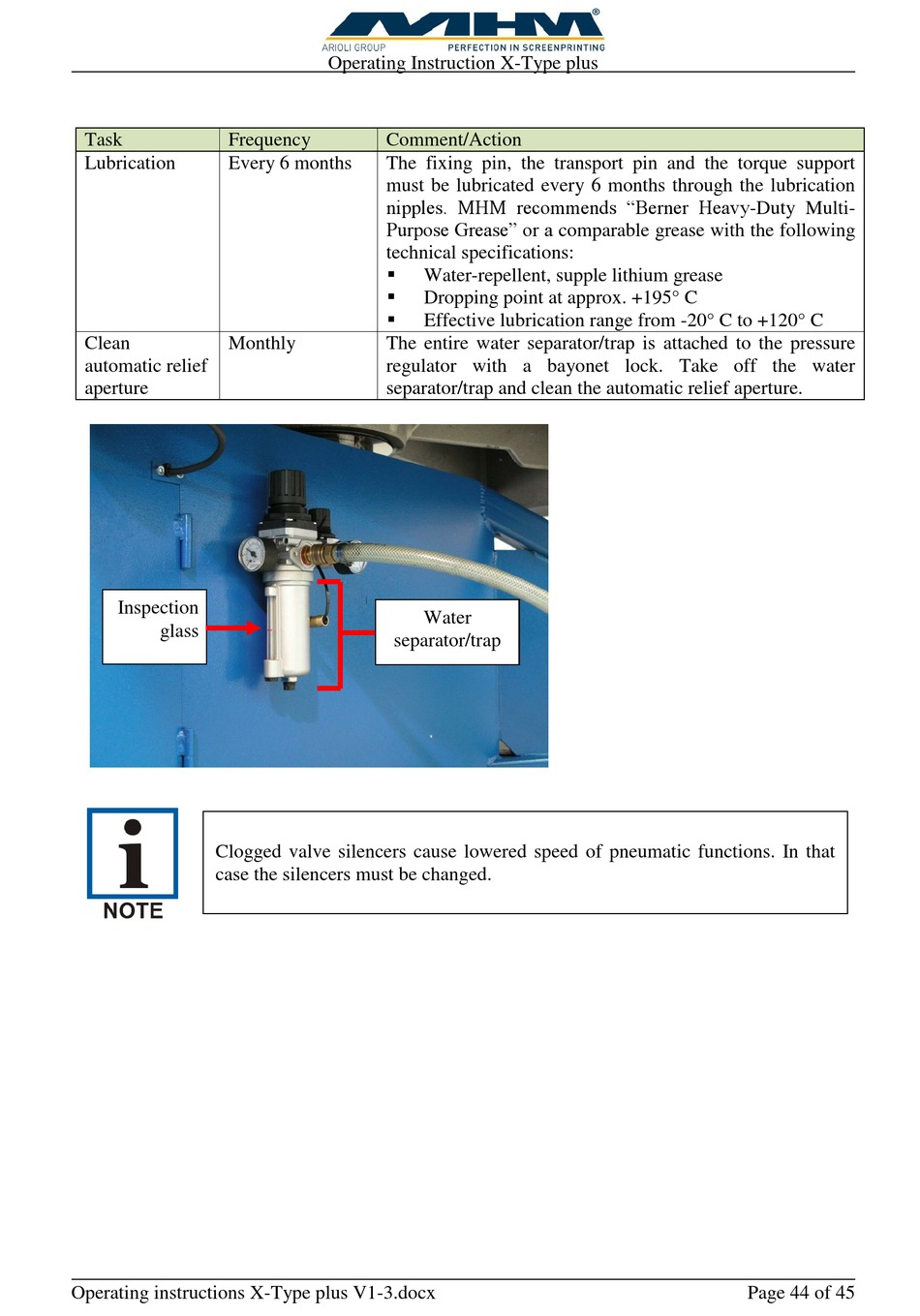

MHM Synchroprint X-Type plus Operating Instructions Manual page 44

Task Frequency
Lubrication Every 6 months
Clean Monthly
automatic relief
aperture
Inspection
glass
Clogged valve silencers cause lowered speed of pneumatic functions. In that
case the silencers must be changed.
Operating instructions X-Type plus V1-3.docx
Operating Instruction X-Type plus
Comment/Action
The fixing pin, the transport pin and the torque support
must be lubricated every 6 months through the lubrication
nipples. MHM recommends "Berner Heavy-Duty Multi-
Purpose Grease" or a comparable grease with the following
technical specifications:

Water-repellent, supple lithium grease

Dropping point at approx. +195° C

Effective lubrication range from -20° C to +120° C
The entire water separator/trap is attached to the pressure
regulator with a bayonet lock. Take off the water
separator/trap and clean the automatic relief aperture.
Water
separator/trap
Page 44 of 45
