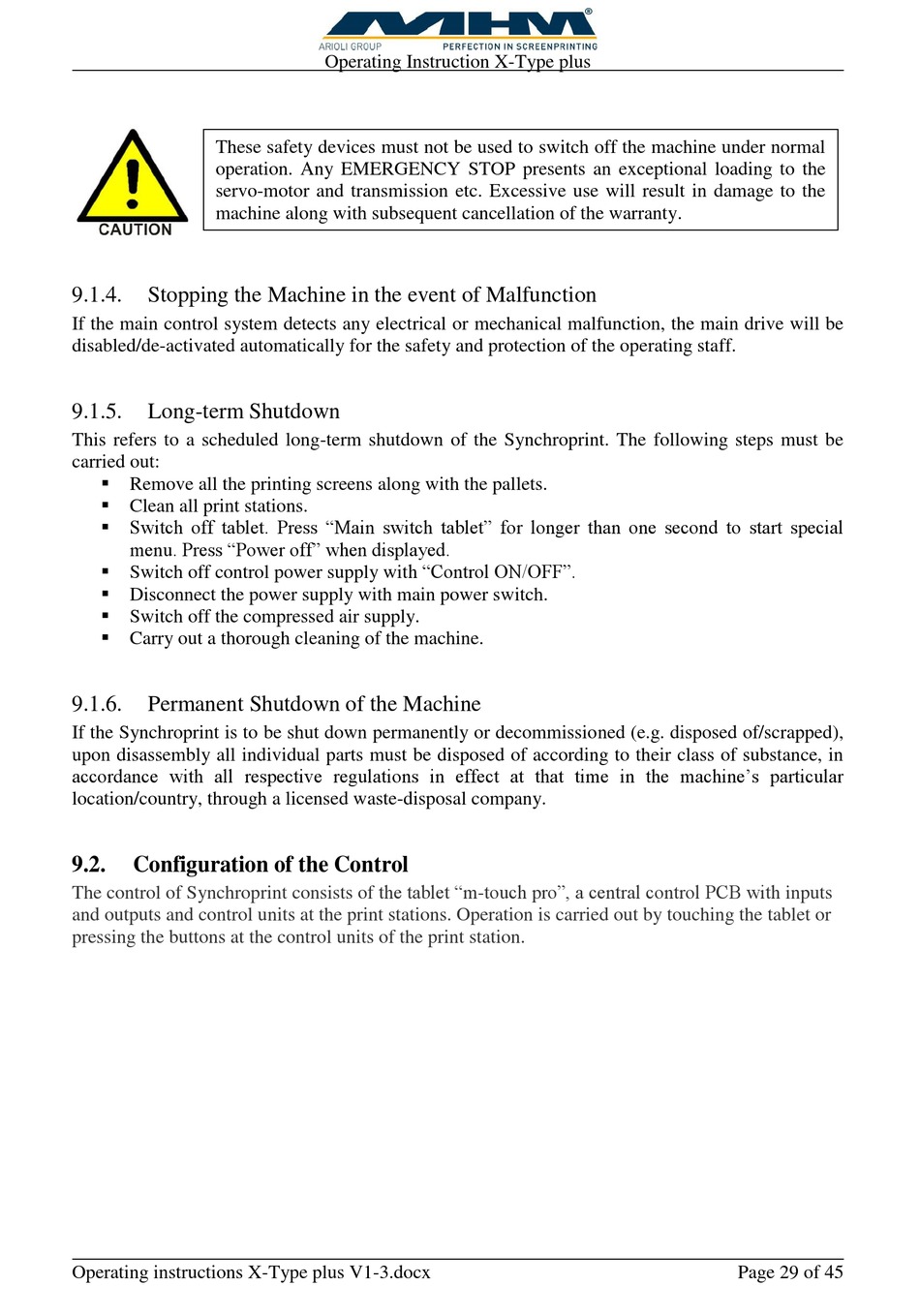

These safety devices must not be used to switch off the machine under normal
operation. Any EMERGENCY STOP presents an exceptional loading to the
servo-motor and transmission etc. Excessive use will result in damage to the
machine along with subsequent cancellation of the warranty.
9.1.4.
Stopping the Machine in the event of Malfunction
If the main control system detects any electrical or mechanical malfunction, the main drive will be
disabled/de-activated automatically for the safety and protection of the operating staff.
9.1.5.
Long-term Shutdown
This refers to a scheduled long-term shutdown of the Synchroprint. The following steps must be
carried out:
Remove all the printing screens along with the pallets.
Clean all print stations.
Switch off tablet. Press "Main switch tablet" for longer than one second to start special
menu. Press "Power off" when displayed.
Switch off control power supply with "Control ON/OFF".
Disconnect the power supply with main power switch.
Switch off the compressed air supply.
Carry out a thorough cleaning of the machine.
9.1.6.
Permanent Shutdown of the Machine
If the Synchroprint is to be shut down permanently or decommissioned (e.g. disposed of/scrapped),
upon disassembly all individual parts must be disposed of according to their class of substance, in
accordance with all respective regulations in effect at that time in the machine's particular
location/country, through a licensed waste-disposal company.
9.2.
Configuration of the Control
The control of Synchroprint consists of the tablet "m-touch pro", a central control PCB with inputs
and outputs and control units at the print stations. Operation is carried out by touching the tablet or
pressing the buttons at the control units of the print station.
