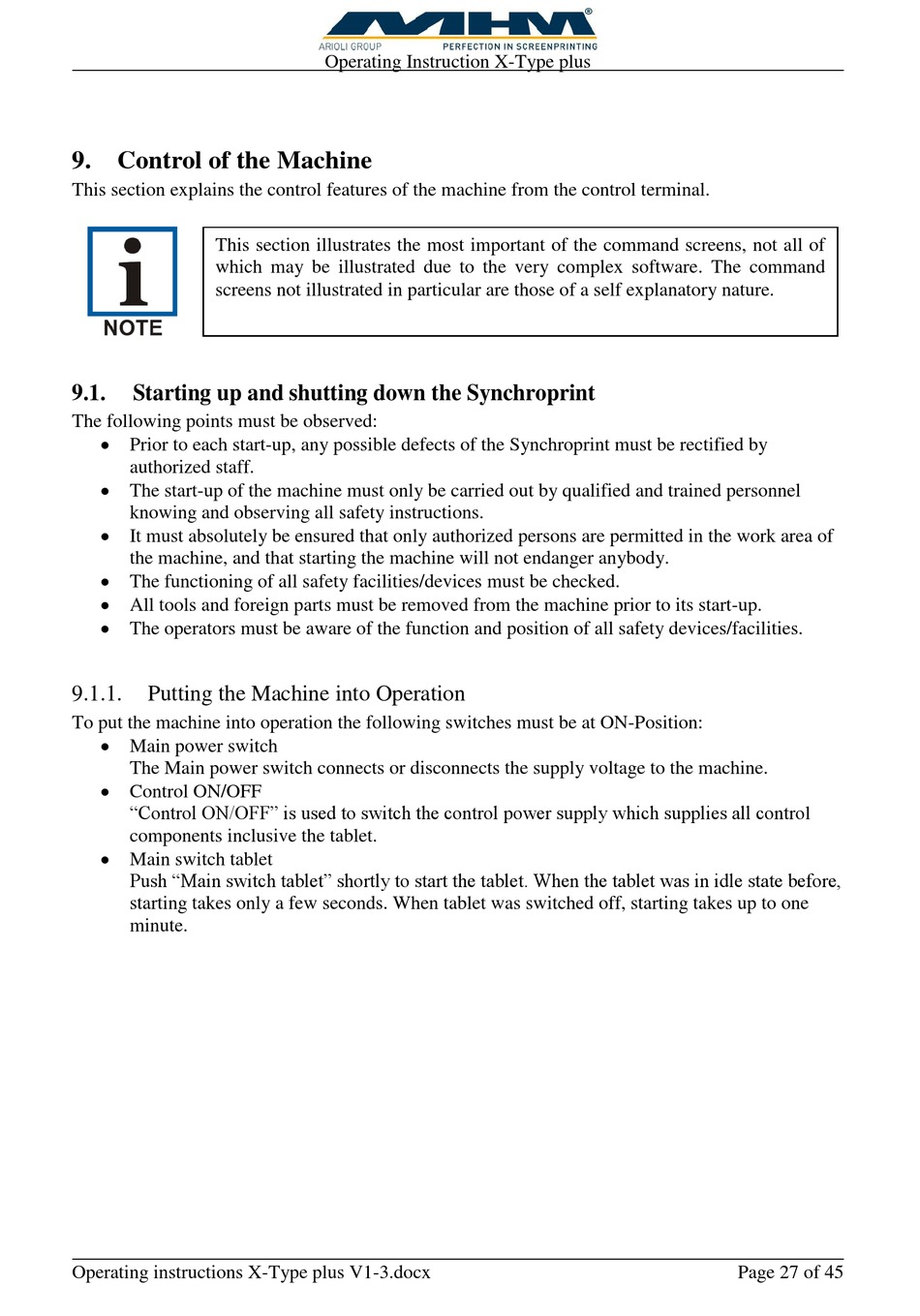

9. Control of the Machine

This section explains the control features of the machine from the control terminal.
This section illustrates the most important of the command screens, not all of
which may be illustrated due to the very complex software. The command
screens not illustrated in particular are those of a self explanatory nature.
9.1.

Starting up and shutting down the Synchroprint

The following points must be observed:
 Prior to each start-up, any possible defects of the Synchroprint must be rectified by
authorized staff.
 The start-up of the machine must only be carried out by qualified and trained personnel
knowing and observing all safety instructions.
 It must absolutely be ensured that only authorized persons are permitted in the work area of
the machine, and that starting the machine will not endanger anybody.
 The functioning of all safety facilities/devices must be checked.
 All tools and foreign parts must be removed from the machine prior to its start-up.
 The operators must be aware of the function and position of all safety devices/facilities.
9.1.1.

Putting the Machine into Operation

To put the machine into operation the following switches must be at ON-Position:
 Main power switch
The Main power switch connects or disconnects the supply voltage to the machine.
 Control ON/OFF
"Control ON/OFF" is used to switch the control power supply which supplies all control
components inclusive the tablet.
 Main switch tablet
Push "Main switch tablet" shortly to start the tablet. When the tablet was in idle state before,
starting takes only a few seconds. When tablet was switched off, starting takes up to one
minute.
