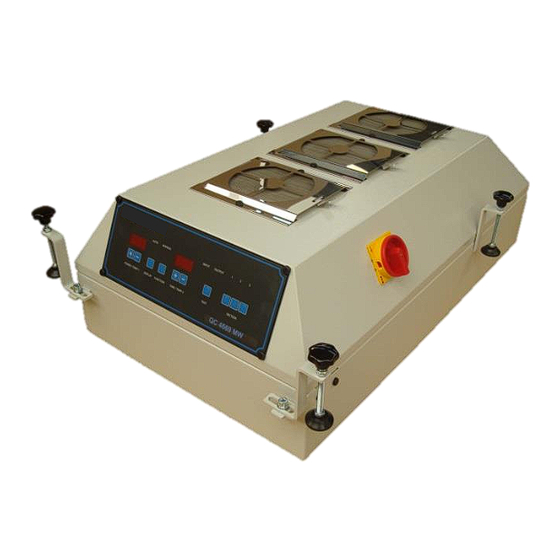

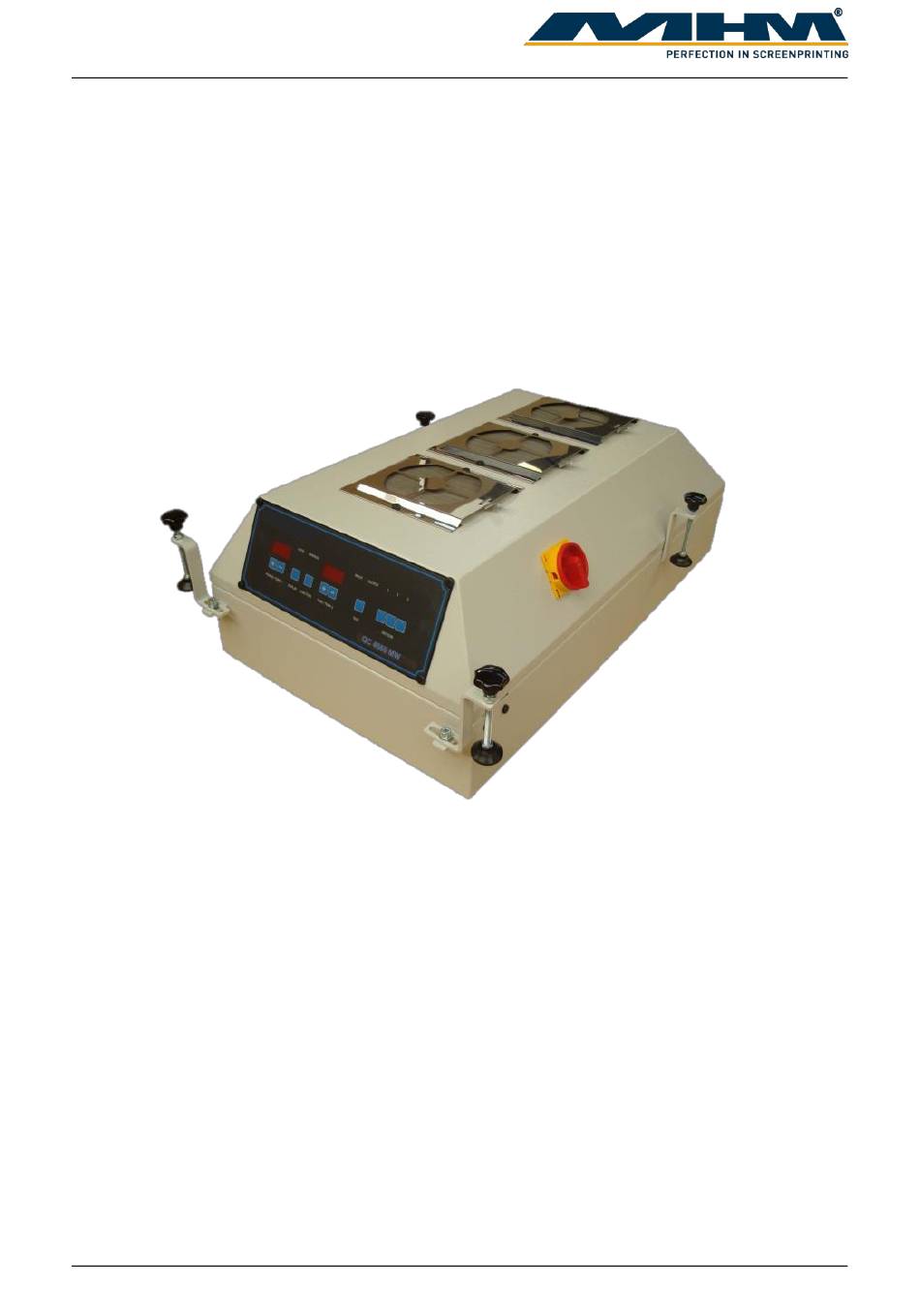

Operating Instruction MHM Flash Cures
OPERATING INSTRUCTIONS
(Original instructions)
MHM Flash Cures type:
QC 4646 MW, QC 4355 MW, QC 4661 MW,
QC 4669 MW, QC 4170 MW, QC 5069 MW,
QC 70100 MW, QC 8044 MW, QC 6080 MW,
QC 4646 HTL, QC 4355 HTL, QC 4661 HTL,
QC 4170 HTL, QC 70100 HTL
©2018 Machines Highest Mechatronic GmbH, Erl, Austria
Operating instructions MHM Flash Cures.docx
Page 1 of 17
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for MHM Flash Cures
Summary of Contents for MHM Flash Cures
- Page 1 Operating Instruction MHM Flash Cures OPERATING INSTRUCTIONS (Original instructions) MHM Flash Cures type: QC 4646 MW, QC 4355 MW, QC 4661 MW, QC 4669 MW, QC 4170 MW, QC 5069 MW, QC 70100 MW, QC 8044 MW, QC 6080 MW,...
-
Page 2: Preface
Preface Dear Customer, congratulations and thank you for choosing the MHM Flash Cure. The Flash Cure is designed to provide the highest standards of performance and reliability during its guaranteed long operating life. Highly innovative and precise MHM technology provides a combination of the finest built quality along with optimal safety. -
Page 3: Table Of Contents
Operating Instruction MHM Flash Cures Content: Preface ..............................2 Important Advice Regarding These Operating Instructions ..............2 Introduction ..........................4 Safety Instructions........................4 2.1. Description of Key Words and Symbols in the Operating Instructions ........ 4 2.2. Qualification of Operating and Service Staff ................ 4 2.3. -
Page 4: Introduction
Operating Instruction MHM Flash Cures 1. Introduction The MHM Flash Cure is a microprocessor controlled unit, which uses carbon infrared emitters to rapidly cure plastisol or water based inks. The height of the unit above the pallet is adjustable and the heat output and drying time can be precisely controlled. -
Page 5: Safety Instructions For The Operating Staff
MHM authorized / approved technician. 2.4. Additional Risks Even though the MHM Flash Cure has been designed and built according to the most stringent safety criteria, as with all machinery we have to anticipate certain additional risks, which are detailed below:... -
Page 6: Data
Operating Instruction MHM Flash Cures 4. Data This section details the Flash Cure technical specifications. NB: As our policy is one of continuous improvement, we reserve the right to change specifications without prior notice. 4.1. Serial Number and Year of Manufacture Serial number and year of manufacture are indicated on the unit’s type plate. -
Page 7: Dimensions
Operating Instruction MHM Flash Cures 4.3. Dimensions Name Length Width Height 850 mm 564 mm 315 mm QC 4646 MW 685 mm 455 mm 278 mm QC 4355 MW QC 4661 MW 755 mm 500 mm 277 mm QC 4669 MW... -
Page 8: Installation
4. The mains supply must not exceed or fall below a tolerance of +/- 5 % of the required voltage for the MHM Flash Cure. If this voltage stability cannot be guaranteed, the customer must install a constant-voltage regulator to protect the unit against such fluctuations. -
Page 9: Electrical Requirements
5.3. Start signal The MHM flash cure may be connected to the screen printing machine with the cable supplied or to a footswitch, micro-switch, photocell or proximity switches, if so specified, via the connection socket on the rear of the machine. -
Page 10: Design
Operating Instruction MHM Flash Cures 6. Design 6.1. Component description 1. Control panel 2. Top cover Alternative filter frame: 3. Screws for fan cover grill 4. Cover grill 5. Fan 6. Main switch 7. Height adjustable brackets 8. Main body 9. -
Page 11: Control Panel
Operating Instruction MHM Flash Cures 6.2. Control panel Control panel fixing screws ‘POWER/TEMP 1 +’: increases heat output Membrane Switch ‘POWER/TEMP 1 -’: reduces heat output Membrane Switch LED Display Selected heat level ‘DISPLAY’: switches display between power and Membrane Switch drying time or Temp 1 and Temp 2 ‘AUT’: automatic mode selected... -
Page 12: Operating The Unit
Operating Instruction MHM Flash Cures 7. Operating the unit 7.1. Normal operation 1. Turn on mains switch 6. The fans will start and the control panel display will light up showing either the manufacturer’s settings or the setting last used. -
Page 13: Overheat Protection
Operating Instruction MHM Flash Cures 7.2. Overheat protection Do not cover or obstruct the fans. This may result in loss of efficiency or reduction of lifetime. When the temperature inside the unit rises above 70 °Celsius, the unit switches off automatically to protect the electronics. - Page 14 Operating Instruction MHM Flash Cures POWER TIME / SETTING ACTION TEMP 2 TEMP 1 DISPLAY DISPLAY Start delay setting TO CHANGE THIS LEVEL PRESS TIME/TEMP 2 ‘+’ OR ‘-’ SWITCH PRESS ‘FUNCTION’ SWITCH HIGH POWER TO CHANGE THIS LEVEL PRESS TIME/TEMP 2 ‘+’...
-
Page 15: Changing Lamps
10. Reattach the power cable and turn the unit on. If the lamp is thought to have failed under guarantee conditions, it should be returned in appropriate packaging to MHM or other appointed dealer for assessment. Operating instructions MHM Flash Cures.docx... -
Page 16: Maintenance Of The Flash Cure
Operating Instruction MHM Flash Cures 8. Maintenance of the Flash Cure Safety precautions: Unplug all mains power to the flash cure dryer. If the flash cure was recently in operation ensure the unit has cooled down before attempting to change the lamps. -
Page 17: Terms Of The Guarantee
Operating Instruction MHM Flash Cures 10. Terms of the Guarantee The terms of the guarantee are detailed in the General Terms and Conditions of Machines Highest Mechatronic GmbH. 11. Support, Customer Service and Hotline In case of any problems or additional questions please turn to your appropriate service partner.
