Machine can be controlled by the following menu images:
 Adjust
 Manually
 Automatic
 Basic Setup
 Help
To change between the menu images touch the respective area at the top of the screen. The active
menu image can be identified by the grey background color.
Touching the screen with two fingers and moving them up or down changes the angle of view.
Moving the fingers together or apart changes the enlargement.
9.3.

Menu Images

9.3.1.

Adjust

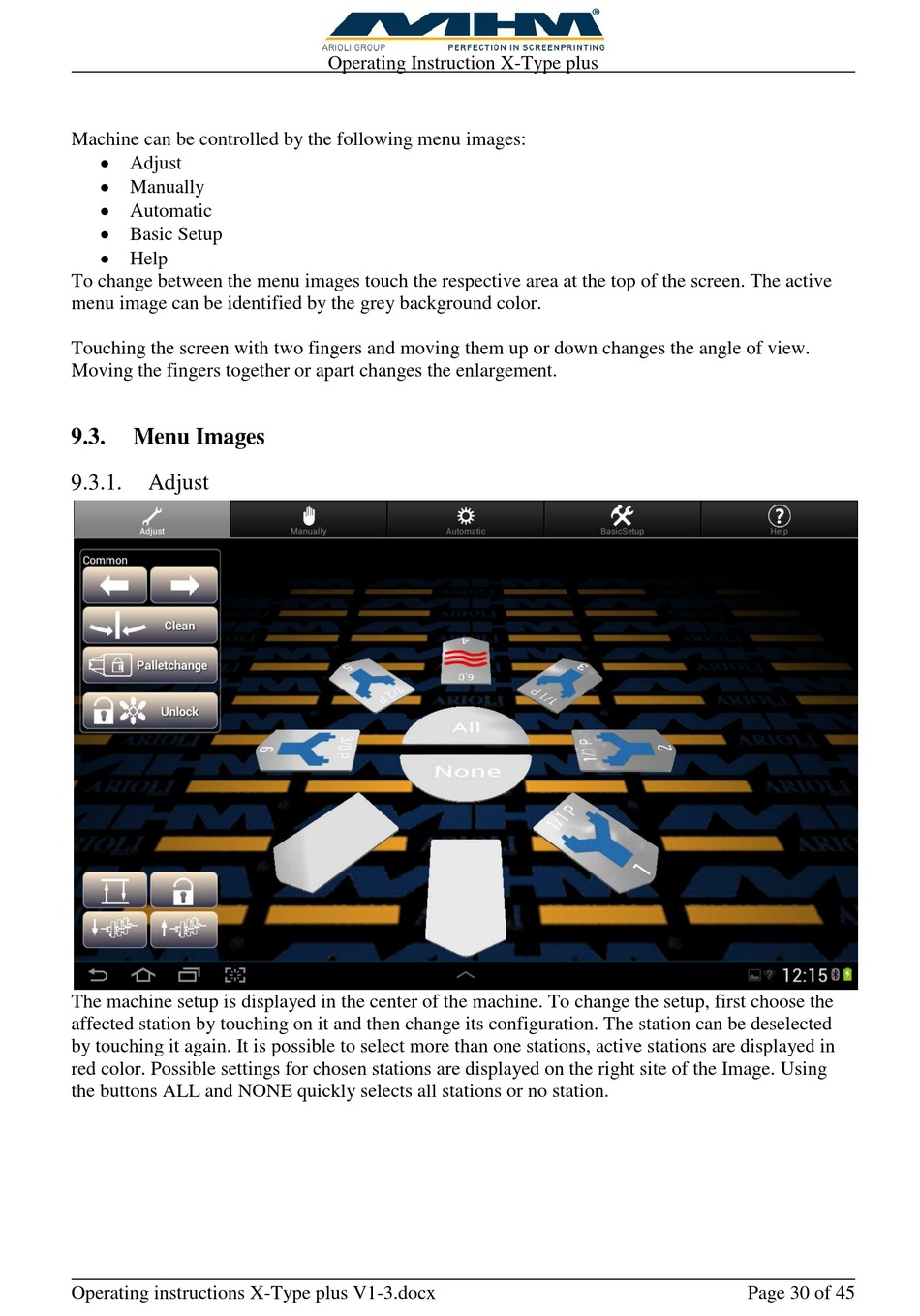

The machine setup is displayed in the center of the machine. To change the setup, first choose the
affected station by touching on it and then change its configuration. The station can be deselected
by touching it again. It is possible to select more than one stations, active stations are displayed in
red color. Possible settings for chosen stations are displayed on the right site of the Image. Using
the buttons ALL and NONE quickly selects all stations or no station.
