r Rotate [DIAL] to select "A A b b l l e e t t o o C C o o m m p p l l y y " or "U U n n - -
a a b b l l e e t t o o C C o o m m p p l l y y ," push [DIAL•ENTER].
• When "U U n n a a b b l l e e t t o o C C o o m m p p l l y y " is selected, "No Reason Given"
will be transmitted.
--DSC Menu--
Select Action
˘Able to Comply
Unable to Comply
<CLR˘Exit / ENT˘OK>
--DSC Menu--
Individual ACK Ready
<CLR˘Exit / ENT˘OK>
t Push [DIAL•ENTER] to transmit the acknowledgement call
to the selected station.
y After the individual acknowledgement call has been trans-
mitted, the specified channel (specified by the calling sta-
tion) is selected automatically when "A A b b l l e e t t o o C C o o m m - -
p p l l y y " is selected, or returns to the previous condition
(before entering the DSC menu) when "U U n n a a b b l l e e t t o o
C C o o m m p p l l y y " is selected in step r.

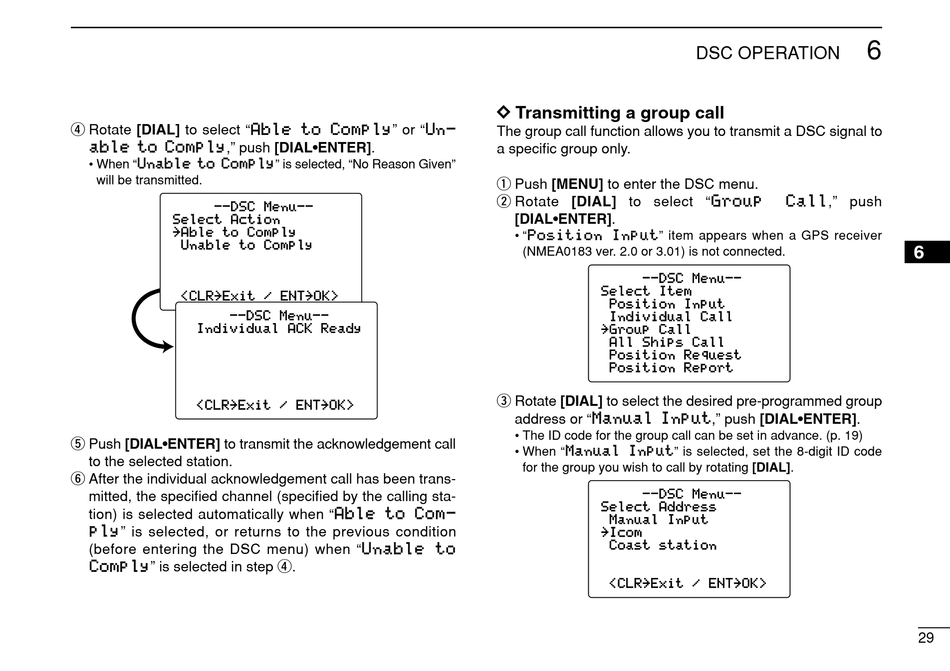

D D Transmitting a group call
The group call function allows you to transmit a DSC signal to
a specific group only.
q Push [MENU] to enter the DSC menu.
w Rotate [DIAL] to select "G G r r o o u u p p
[DIAL•ENTER].
• "P P o o s s i i t t i i o o n n I I n n p p u u t t " item appears when a GPS receiver
(NMEA0183 ver. 2.0 or 3.01) is not connected.
--DSC Menu--
Select Item
Position Input
Individual Call
˘Group Call
All Ships Call
Position Request
Position Report
e Rotate [DIAL] to select the desired pre-programmed group
address or "M M a a n n u u a a l l I I n n p p u u t t ," push [DIAL•ENTER].
• The ID code for the group call can be set in advance. (p. 19)
• When "M M a a n n u u a a l l I I n n p p u u t t " is selected, set the 8-digit ID code
for the group you wish to call by rotating [DIAL].
--DSC Menu--
Select Address
Manual Input
˘Icom
Coast station
<CLR˘Exit / ENT˘OK>
6
