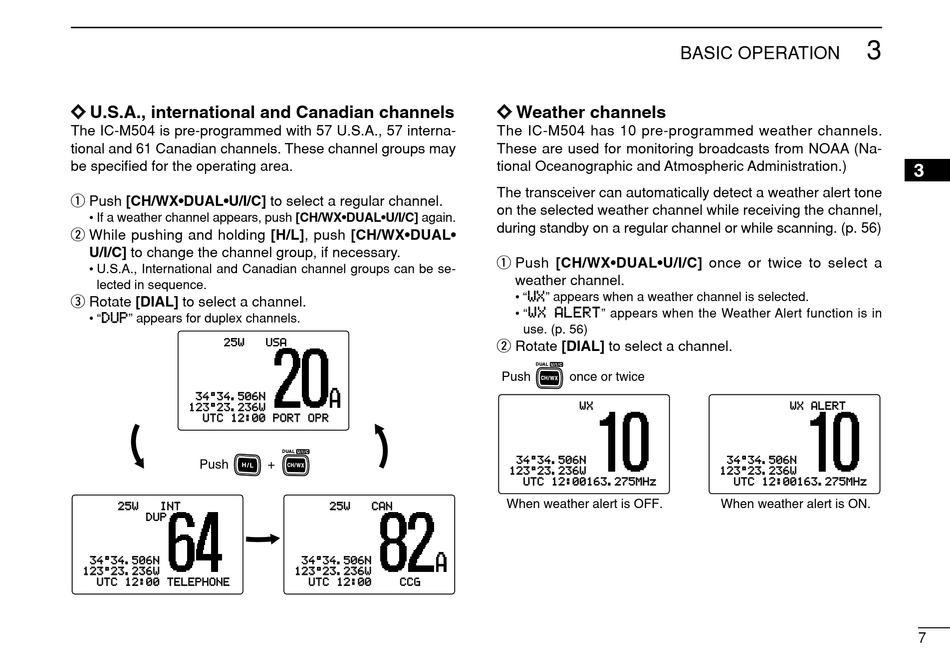

ï ï U.S.A., international and Canadian channels
The IC-M504 is pre-programmed with 57 U.S.A., 57 interna-
tional and 61 Canadian channels. These channel groups may
be specified for the operating area.
q Push [CH/WX•DUAL•U/I/C] to select a regular channel.
• If a weather channel appears, push [CH/WX•DUAL•U/I/C] again.
w While pushing and holding [H/L], push [CH/WX•DUAL•
U/I/C] to change the channel group, if necessary.
• U.S.A., International and Canadian channel groups can be se-
lected in sequence.
e Rotate [DIAL] to select a channel.
• "D D U U P P " appears for duplex channels.
25W 25W
34 34°34.506N 34.506N
123°23.236W 123 23.236W
UTC UTC 12 12:00 :00 PORT
Push
25W 25W INT INT
DUP DUP
34 34°34.506N 34.506N
123 123°23.236W 23.236W
UTC UTC 12 12:00 :00 TELEPHONE TELEPHONE
USA USA
PORT OPR OPR
+
25W 25W CAN CAN
34°34.506N 34 34.506N
123°23.236W 123 23.236W
UTC UTC 12 12:00 :00 CCG CCG
ï ï Weather channels
The IC-M504 has 10 pre-programmed weather channels.
These are used for monitoring broadcasts from NOAA (Na-
tional Oceanographic and Atmospheric Administration.)
The transceiver can automatically detect a weather alert tone
on the selected weather channel while receiving the channel,
during standby on a regular channel or while scanning. (p. 56)
q Push [CH/WX•DUAL•U/I/C] once or twice to select a
weather channel.
• "W W X X " appears when a weather channel is selected.
• "W W X X A A L L E E R R T T " appears when the Weather Alert function is in
use. (p. 56)
w Rotate [DIAL] to select a channel.
Push once or twice
WX WX
34°34.506N 34 34.506N
123°23.236W 123 23.236W
UTC UTC 12 12:00 :00163 163.275MHz .275MHz
When weather alert is OFF.
BASIC OPERATION
WX ALERT WX ALERT
34°34.506N 34 34.506N
123 123°23.236W 23.236W
UTC UTC 12 12:00 :00163 163.275MHz .275MHz
When weather alert is ON.
