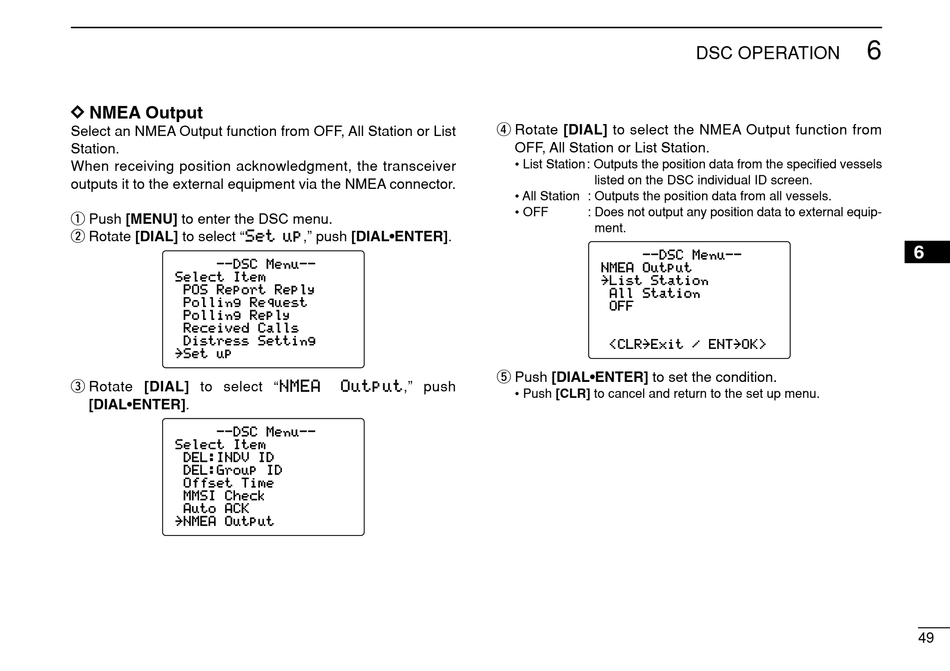

Icom iM504 Instruction Manual page 55

D D NMEA Output
Select an NMEA Output function from OFF, All Station or List
Station.
When receiving position acknowledgment, the transceiver
outputs it to the external equipment via the NMEA connector.
q Push [MENU] to enter the DSC menu.
w Rotate [DIAL] to select "S S e e t t u u p p ," push [DIAL•ENTER].
--DSC Menu--
Select Item
POS Report Reply
Polling Request
Polling Reply
Received Calls
Distress Setting
˘Set up
e Rotate [DIAL] to select "N N M M E E A A
[DIAL•ENTER].
--DSC Menu--
Select Item
DEL:INDV ID
DEL:Group ID
Offset Time
MMSI Check
Auto ACK
˘ NMEA Output
r Rotate [DIAL] to select the NMEA Output function from
OFF, All Station or List Station.
• List Station: Outputs the position data from the specified vessels
• All Station : Outputs the position data from all vessels.
• OFF
t Push [DIAL•ENTER] to set the condition.
O O u u t t p p u u t t ," push
• Push [CLR] to cancel and return to the set up menu.
DSC OPERATION
listed on the DSC individual ID screen.
: Does not output any position data to external equip-
ment.
--DSC Menu--
NMEA Output
˘ List Station
All Station
OFF
<CLR ˘Exit <CLR Exit / ENT ENT˘OK> OK>
6
6
49
