9
CONNECTIONS AND MAINTENANCE

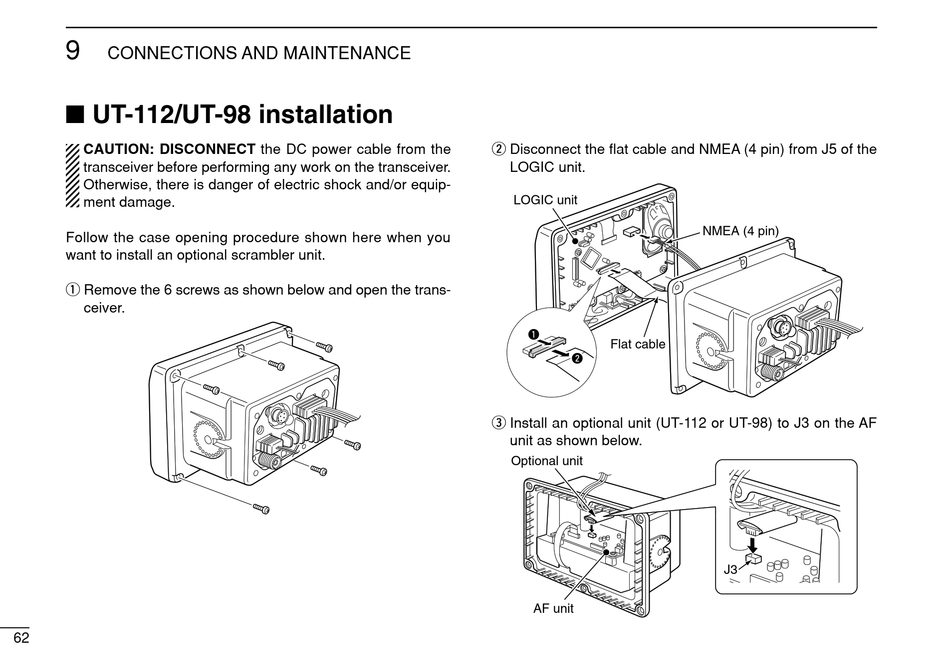

I UT-112/UT-98 installation

CAUTION: DISCONNECT the DC power cable from the
transceiver before performing any work on the transceiver.
Otherwise, there is danger of electric shock and/or equip-
ment damage.
Follow the case opening procedure shown here when you
want to install an optional scrambler unit.
q Remove the 6 screws as shown below and open the trans-
ceiver.
62
w Disconnect the flat cable and NMEA (4 pin) from J5 of the
LOGIC unit.
LOGIC unit
q
Flat cable
w
e Install an optional unit (UT-112 or UT-98) to J3 on the AF
unit as shown below.
Optional unit
AF unit
NMEA (4 pin)
J3
