Compact Par 7 Q4

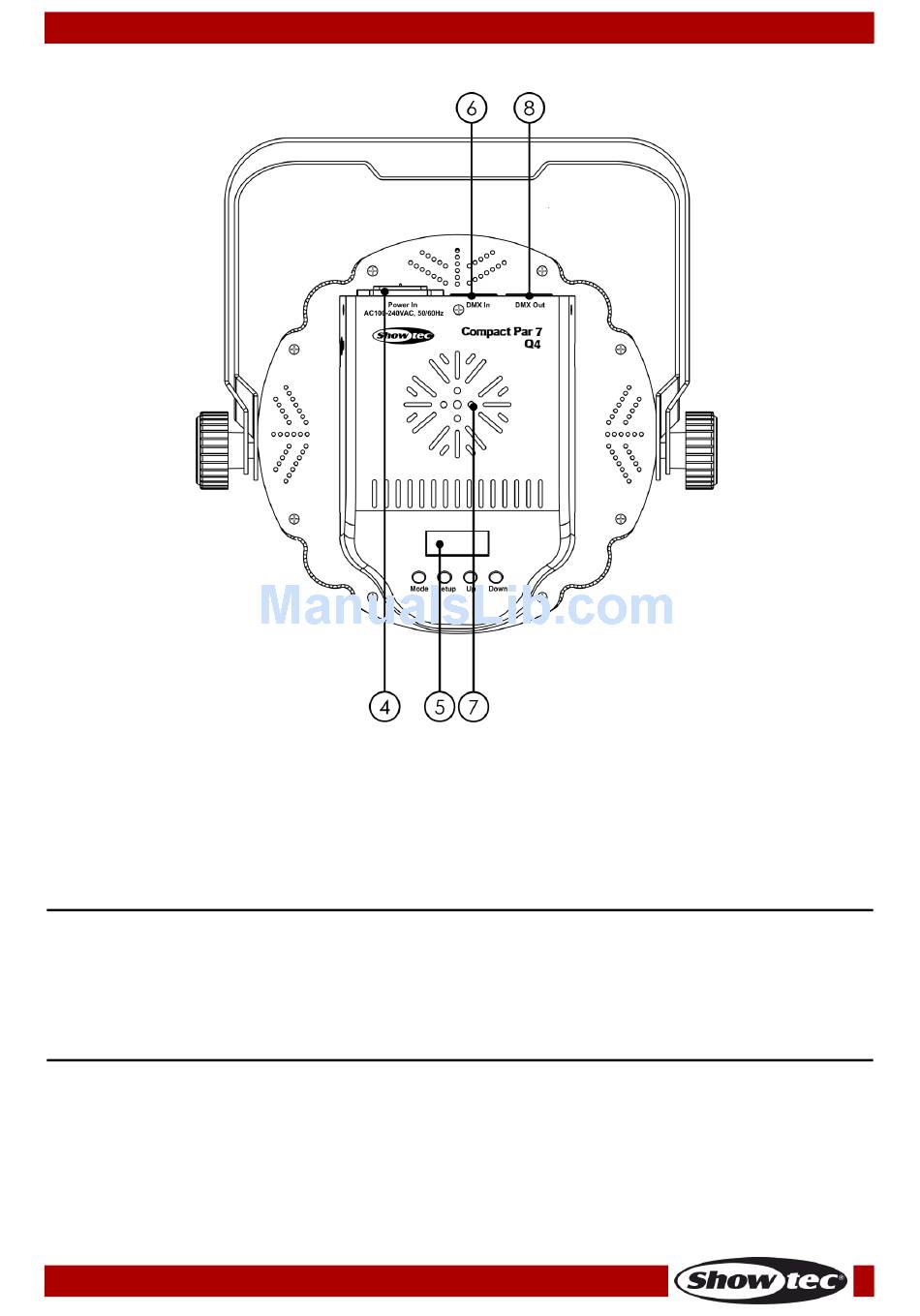

Backside

Fig. 02
04) IEC power connector
05) 4-digit LED display + menu buttons
06) 3-pin DMX signal connector IN
07) Cooling
08) 3-pin DMX signal connector OUT

Installation

Remove all packing materials from the Compact Par 7 Q4. Check if all foam and plastic padding is
removed. Connect all cables.
Do not supply power before the whole system is set up and connected properly.
Always disconnect from electric mains power supply before cleaning or servicing.
Damages caused by non-observance are not subject to warranty.

Set Up and Operation

Follow the directions below, as they pertain to your preferred operation mode.
Before plugging the unit in, always make sure that the power supply matches the product specification
voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa.
Connect the device to the main power supply.
Ordercode: 42582
8
