- Page 1 USER MANUAL ENGLISH Compact Par 7 Q4 Product code: 42582 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
- Page 2 Compact Par 7 Q4 Preface Thank you for purchasing this Showtec product. The purpose of this user manual is to provide instructions for the correct and safe use of this product. Keep the user manual for future reference as it is an integral part of the product. The user manual shall be stored at an easily accessible location.
-
Page 3: Table Of Contents
Compact Par 7 Q4 Table of contents Introduction ................................4 Before Using the Product ..........................4 Intended Use ............................... 4 Product Lifespan ..............................4 LEDs Lifespan ............................... 4 Text Conventions ..............................4 Symbols and Signal Words ..........................5 Symbols on the Information Label ........................5 Safety .................................. - Page 4 Compact Par 7 Q4 Maintenance ..............................27 Safety Instructions for Maintenance ......................27 Preventive Maintenance ..........................27 Basic Cleaning Instructions ........................27 Corrective Maintenance ..........................28 Replacing the Fuse .............................28 Deinstallation, Transportation and Storage ....................29 Instructions for Deinstallation ..........................29 Instructions for Transportation ........................29 Storage ................................29...
-
Page 5: Introduction
After unpacking, check the contents of the box. If any parts are missing or damaged, contact your Highlite International dealer. Your shipment includes: ● Showtec Compact Par 7 Q4 ● Schuko to IEC (C13) power cable (1,5 m) ● User manual Fig. -
Page 6: Symbols And Signal Words
Compact Par 7 Q4 Symbols and Signal Words Safety notes and warnings are indicated throughout the user manual by safety signs. Always follow the instructions provided in this user manual. Indicates an imminently hazardous situation which, if not avoided, will result in DANGER death or serious injury. -
Page 7: Safety
Compact Par 7 Q4 Safety Important Read and follow the instructions in this user manual before installing, operating or servicing this product. The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual. Warnings and Safety Instructions... - Page 8 Compact Par 7 Q4 WARNING Risk of epileptic shock Strobe lighting can trigger seizures in photosensitive epilepsy. Sensitive persons should avoid looking at strobe lights. Attention Power supply ● Before connecting the device to the power supply, make sure that the current, voltage and frequency match the input voltage, current and frequency specified on the information label on the device.
-
Page 9: Requirements For The User
Compact Par 7 Q4 Attention Before each use, examine the device visually for any defects. Make sure that: ● All screws used for installing the device or parts of the device are tightly fastened and are not corroded. ● The safety devices are not damaged. -
Page 10: Description Of The Device

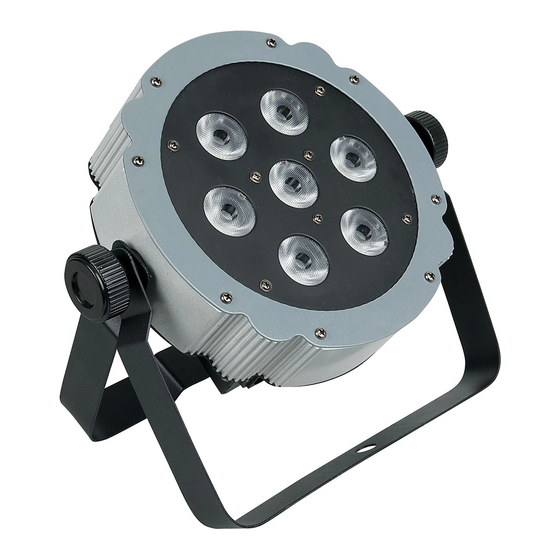

Description of the Device The Showtec Compact Par 7 Q4 is a compact par, equipped with 7 x 4 W RGBW LEDs. It is suitable for indoor venues and has a double bracket for easy floor positioning. It has a fixed 15° beam angle and is perfect for short-throw color mixing. -
Page 11: Product Specifications
Compact Par 7 Q4 Product Specifications Model: Compact Par 7 Q4 Electrical: Input voltage: 100–240 V AC, 50/60 Hz Power consumption: 32 W Fuse: T 1,5 A, 250 V Physical: Dimensions: 275 x 258 x 92 mm (L x W x H) -
Page 12: Dimensions
Compact Par 7 Q4 Dimensions Fig. 05 Fig. 06 Installation Safety Instructions for Installation WARNING Incorrect installation can cause serious injuries and damage of property. If trussing systems are used, installation must be carried out only by instructed or skilled persons. -
Page 13: Installation Site Requirements
Compact Par 7 Q4 Installation Site Requirements ● The device can be used only indoors. ● The device can be mounted to a truss or other rigging structure. ● The minimum distance to other objects must be bigger than 0,5 m. -
Page 14: Angle Adjustment
Compact Par 7 Q4 Angle Adjustment You can adjust the angle of the device with the 2 adjustment screws (02). 01) Turn the adjustment screws (02) counterclockwise to release them. 02) Tilt the device at the desired angle (see Fig. 08). -
Page 15: Setup
Disconnect power supply before connecting or disconnecting data cables. Stand-alone Setup When the Compact Par 7 Q4 is not connected to a controller or to other devices, it functions as a stand- alone device. It can be operated manually, in auto mode or in sound-controlled mode. -
Page 16: Dmx Cables
Fig. 09. Fig. 09 Master/Slave Setup The Compact Par 7 Q4 supports master/slave control mode. To connect multiple devices in a master/slave setup, follow the steps below: Connect the first device’s DMX OUT connector to the second device’s DMX IN connector. -
Page 17: Dmx Linking
04) Continue assigning the starting addresses of the remaining devices by adding each time 11 to the previous number. Make sure that you do not have any overlapping channels in order to control each Compact Par 7 Q4 correctly. If two or more devices are addressed similarly, they will work similarly. -
Page 18: Operation
Control Modes The Compact Par 7 Q4 can be operated with a DMX controller, and as a stand-alone device or in a master/slave setup without a DMX controller. -
Page 19: Control Panel
Compact Par 7 Q4 Control Panel A) LED display DOWN button C) UP button D) SETUP button MODE button Fig. 12 ● Use the MODE button to navigate through the main menu and to return to the main menu. ●... -
Page 20: Menu Overview
Compact Par 7 Q4 Menu Overview Product code: 42582... -
Page 21: Main Menu Options
Compact Par 7 Q4 Main Menu Options The main menu has the following options: 1. Auto mode 5. Manual mode 2. Built-in programs 6. Sound mode 3. DMX configuration 7. Settings 4. Master/slave mode 8. Information Press the MODE button or the UP/DOWN buttons to navigate through the main menu. -
Page 22: Color Presets
Compact Par 7 Q4 Color Presets If you have selected Program 01, you can further select one of the 33 preset colors and add strobe effect. 01) Press the SETUP button to enable the color presets selection. 02) Press the UP/DOWN buttons to select one of the 33 color presets or OFF. The device will output the selected color. -
Page 23: Master/Slave Mode
Compact Par 7 Q4 Master/Slave Mode In this menu you can set the device as a slave device in master/slave mode. When you select this menu option, the device will operate as a slave device in a master/slave setup. Manual Mode In this menu you can manually adjust the color intensity of the LEDs. -
Page 24: Information
Compact Par 7 Q4 Fail Behavior of the device in case of DMX failure (OFF/HOLD). If you select OFF, the device will black out the light output if there is no DMX signal. If you select HOLD, the device will use the last properly received DMX signal. -
Page 25: Dmx Channels
Compact Par 7 Q4 DMX Channels 4 CH 6 CH 11 CH Function Value Setting Master Dimmer 000–255 From low to high intensity (0–100 %) 000–010 No function Linear Strobe 011–255 From low to high frequency 000–010 No function Random Strobe 011–255... - Page 26 Compact Par 7 Q4 4 CH 6 CH 11 CH Function Value Setting 192–207 Fade 4 208–223 Fade 5 224–239 Fade 6 240–255 Fade 7 000–255 Speed adjustment of the built-in chases, from slow Speed to fast 000–050 No function Sound Mode 051–255...
-
Page 27: Troubleshooting
Compact Par 7 Q4 Troubleshooting This troubleshooting guide contains solutions to problems which can be carried out by an ordinary person. The device does not contain user-serviceable parts. Unauthorized modifications to the device will render the warranty void. Such modifications may result in injuries and material damage. - Page 28 Compact Par 7 Q4 Maintenance Safety Instructions for Maintenance DANGER Electric shock caused by dangerous voltage inside Disconnect power supply before servicing or cleaning. Preventive Maintenance Attention Before each use, examine the device visually for any defects. Make sure that: ●...
- Page 29 Compact Par 7 Q4 Corrective Maintenance The device does not contain user-serviceable parts. Do not open the device and do not modify the device. Refer repairs and servicing to instructed or skilled persons. Contact your Highlite International dealer for more information.
- Page 30 Compact Par 7 Q4 Deinstallation, Transportation and Storage Instructions for Deinstallation WARNING Incorrect deinstallation can cause serious injuries and damage of property. ● Let the device cool down before dismounting. ● Disconnect power supply before deinstallation. ● Always observe the national and site-specific regulations during deinstallation and derigging of the device.
- Page 31 Compact Par 7 Q4 Product code: 42582...
- Page 32 ©2021 Showtec...
