Compact Par 7 Q4

Description of the device

Features
The Compact Par 7 Q4 is a compact light effect with high output and great effects. It is the successor of
the popular Compact par 7 Tri with 7x 4-in-1 RGBW LEDs.
 Flat stylisch design
 Double bracket
 Input voltage: 100-240V, 50/60Hz
 Drive Current: 330mA
 Refresh rate: 7,8 kHz
 Power consumption: 32W
 DMX channels: 4,6 or 11 channels
 4-digit LED display for easy setup
 Light source: 7 x 4W RGBW LED
 Lux @2m: 2201
 Control modes: Built-in Programs, Auto, Sound-controlled, Static color, Master/Slave, DMX
 Control protocol: DMX-512
 Dimmer: 0-100%
 Strobe: 0-20Hz
 Beam Angle: 18°
 Protection rate: IP-20
 Housing: Aluminum and Iron
 Cooling: Aluminum heat sink
 Connections: IEC & 3-pin XLR IN & OUT
 Fuse: T1L/250V
 Dimensions: 272 x 92 x 260 mm (LxWxH)
 Weight: 2,14 kg

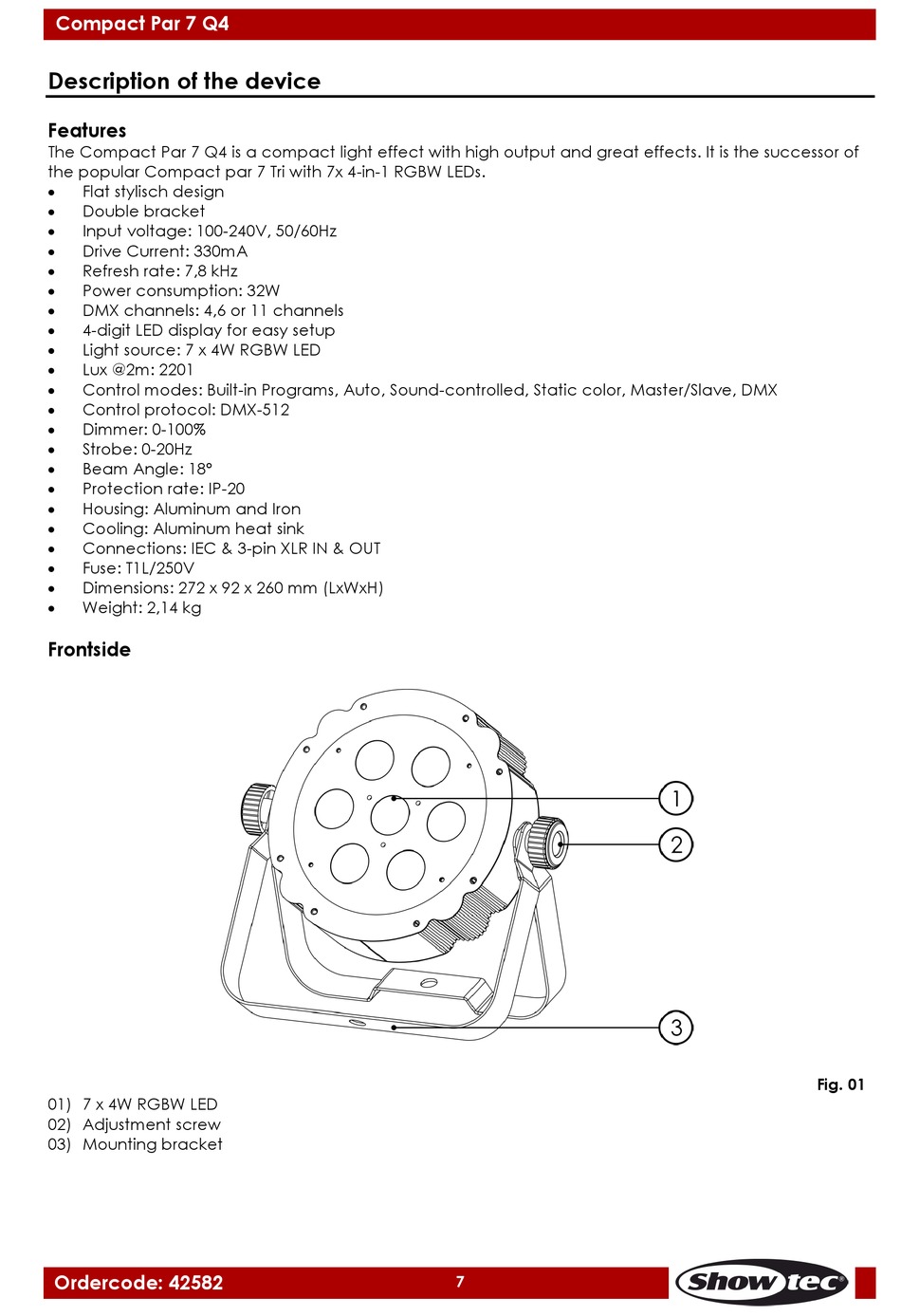

Frontside

01) 7 x 4W RGBW LED
02) Adjustment screw
03) Mounting bracket
Ordercode: 42582
7
Fig. 01
