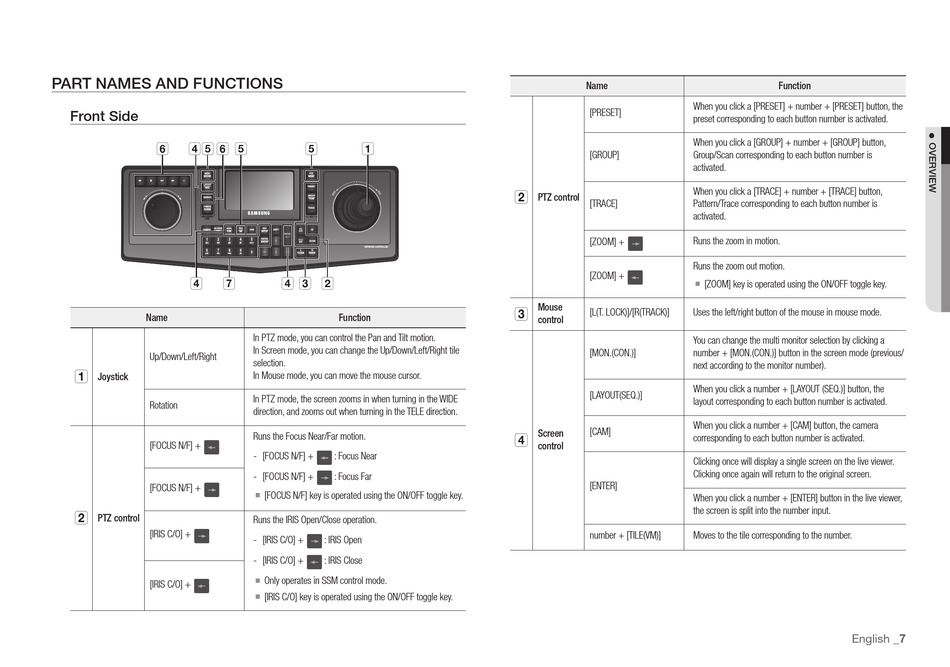

part nameS anD functionS

front Side
f
d
e
f
MENU
MOUSE
LAYOUT
SEQ.
SEARCH
FREEZE
ALARM
RECORDER
SSM
RECORDER
MON.
CAMERA
SSM
CON.
abc
def
ghi
pqr
stu
vwx
d
g
Name
Up/Down/Left/Right
Joystick
a
Rotation
[FOCUS N/F] +
[FOCUS N/F] +
PTZ control
b
[IRIS C/O] +
[IRIS C/O] +
e
e
a
PTZ
MENU
PRESET
GROUP
TOUR
TRACE
TILE
ESC
CAM
SHIFT
AF
VM
SETUP
C/O
FAVORI.
ZOOM
jkl
mno
MACRO
N/F
NETWORK CONTROLLER
L
R
yz
T.LOCK
TRACK
d c
b
Function
In PTZ mode, you can control the Pan and Tilt motion.
In Screen mode, you can change the Up/Down/Left/Right tile
selection.
In Mouse mode, you can move the mouse cursor.
In PTZ mode, the screen zooms in when turning in the WIDE
direction, and zooms out when turning in the TELE direction.
Runs the Focus Near/Far motion.
- [FOCUS N/F] +
: Focus Near
- [FOCUS N/F] +
: Focus Far
[FOCUS N/F] key is operated using the ON/OFF toggle key.
`
Runs the IRIS Open/Close operation.
- [IRIS C/O] +
: IRIS Open
- [IRIS C/O] +
: IRIS Close
Only operates in SSM control mode.
`
[IRIS C/O] key is operated using the ON/OFF toggle key.
`
Name
When you click a [PRESET] + number + [PRESET] button, the
[PRESET]
preset corresponding to each button number is activated.
When you click a [GROUP] + number + [GROUP] button,
[GROUP]
Group/Scan corresponding to each button number is
activated.
When you click a [TRACE] + number + [TRACE] button,
PTZ control
b
[TRACE]
Pattern/Trace corresponding to each button number is
activated.
Runs the zoom in motion.
[ZOOM] +
Runs the zoom out motion.
[ZOOM] +
Mouse
[L(T. LOCK)]/[R(TRACK)]
Uses the left/right button of the mouse in mouse mode.
c
control
You can change the multi monitor selection by clicking a
[MON.(CON.)]
number + [MON.(CON.)] button in the screen mode (previous/
next according to the monitor number).
When you click a number + [LAYOUT (SEQ.)] button, the
[LAYOUT(SEQ.)]
layout corresponding to each button number is activated.
When you click a number + [CAM] button, the camera
Screen
[CAM]
corresponding to each button number is activated.
d
control
Clicking once will display a single screen on the live viewer.
Clicking once again will return to the original screen.
[ENTER]
When you click a number + [ENTER] button in the live viewer,
the screen is split into the number input.
number + [TILE(VM)]
Moves to the tile corresponding to the number.
Function
[ZOOM] key is operated using the ON/OFF toggle key.
`
English _7
