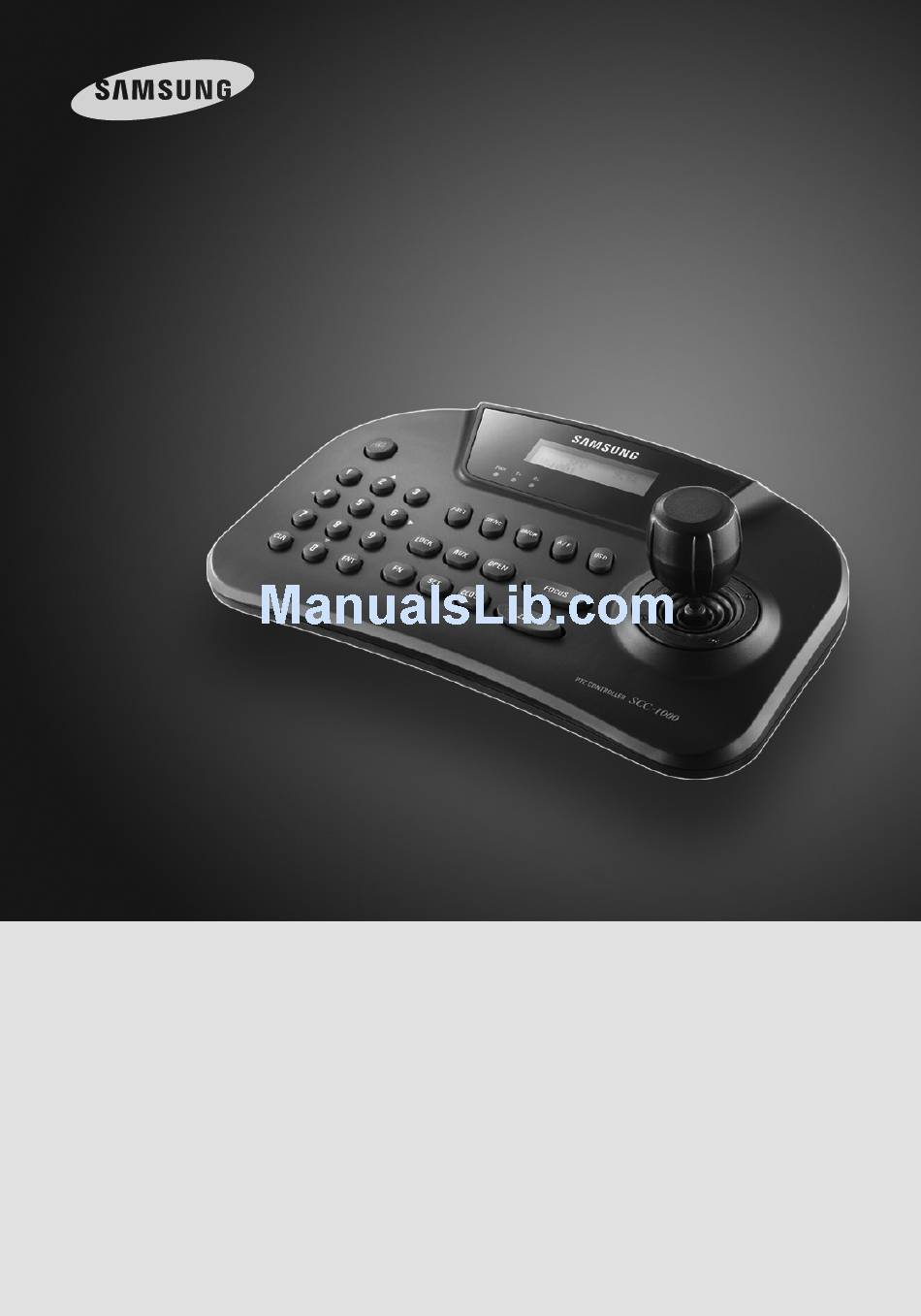

PTZ Controller SCC-1000

User Guide

Before installing and operating this product,
please read this manual thoroughly.
ENGLISH

Advertisement

loading

  Related Manuals for Samsung SCC-1000

  Summary of Contents for Samsung SCC-1000

  • Page 1: User Guide

    PTZ Controller SCC-1000 User Guide Before installing and operating this product, please read this manual thoroughly. ENGLISH...
  • Page 2: Table Of Contents

    Contents Samsung Techwin cares for the environment at all product manufacturing stages to preserve the environment, and is taking a number of steps to provide customers with more environment-friendly products.The Eco mark represents Samsung Techwin’s will to create environment-friendly products, and indicates Table of Contents •...
  • Page 3: Safety Caution

    ~ 40 ºC • Do not place the appliance in direct sunlight. The SCC-1000 PTZ Controller controls the operation of the PTZ Dome and Zoom Camera - This may discolor the appliance. series and the SRX-100B Receiver. • Do not apply excessive shock to the appliance.
  • Page 4: Controller Button Layout

    Camera Controller Power Adapter (DC 12V) Terminal Block RXD+ Tx1+ RXD- Tx1- · RS485 Communications Camera Controller SCC-1000 RXD+ Tx1+ RXD- Tx1- TXD+ TRx+ TXD- TRx- • You may use the Tx2 or Tx3 terminal instead of Tx1. User’s Manual...
  • Page 5: Names And Functions

    Controlling PTZ Camera Names and Functions ① ② ⑤ 1. Power To turn on the power, press the PWR button. ① To turn off the power, hold down the PWR button. ② 2. Initial Screen Display ID : Indicates the current channel number. ①...
  • Page 6: Pan / Tilt / Zoom Using Joystick

    Controlling PTZ Camera Controlling PTZ Camera 4. Pan / Tilt / Zoom Using Joystick 5. Iris / Focus / Zoom Buttons ■ You can use the joystick to control the camera's Pan and Tilt operations. Screen Brightness ① ■ The farther you move the joystick from the center, the faster the camera moves. ■...
  • Page 7: Swing

    • In order to use Swing and Group modes, you must set up the modes in the camera’s OSD menu 12. AUX prior to actual operation. • The Swing and Group modes only support the Samsung Techwin SPD protocol. ■ Controls the camera’s Aux output operation. AUX ON : Press the AUX button to turn AUX on.
  • Page 8: Setting Up Controller Environment

    • For the default settings values, please refer to the ■ Displays the current version of the controller firmware. picture on the right. Protocol : Samsung Techwin SPD Baud Rate : 9.6Kbps, Parity Bit : None 2-2. Serial Data Transfer Standard ■...
  • Page 9: Setting Up Controller Environment

    Setting Up Controller Environment Setting Up Controller Environment 2-4. Sleep 2-8. Password ■ Enables changing the controller password. ■ If no joystick or button input is detected for a set duration, the LCD screen turns itself off and enters Sleep mode. 2-9.
  • Page 10: Joystick Calibration

    Setting Up Controller Environment Troubleshooting ● If the power is not turned on 3. Joystick Calibration Please check if the controller is connected to the power adapter. ▶ Press 3 on the number pad. ① ● If the joystick does not move, or the controller buttons are not pressed Hold down the SET button to enter the Joystick Calibration mode.
  • Page 11: Product Specifications

    Product Specifications MEMO Product SCC-1000 LCD Display 16 x 2 Character LCD Speed Control Joystick (3-axis Twist Zoom) Samsung Techwin PTZ Dome PTZ Dome PELCO-D/P, Panasonic, Vicon, AD, Honeywell, Samsung Electronics Compatible Hardware Zoom SDZ-375/370 Camera Receiver SRX-100B Control Capacity...
  • Page 12 MEMO MEMO PTZ CONTROLLER User Guide PTZ CONTROLLER User Guide...
  • Page 13 SAMSUNG TECHWIN EUROPE CO., LTD. • • 1480 Charles Willard St, Carson, CA 90746, UNITED STATES Samsung House, 1000 Hillswood Drive, Hillswood Business Tol Free : +1-877-213-1222 FAX : +1-310-632-2195 Park Chertsey, Surrey, UNITED KINGDOM KT16 OPS www.samsungcctvusa.com TEL : +44-1932-45-5300 FAX : +44-1932-45-5325 www.samsungtechwin.com...
