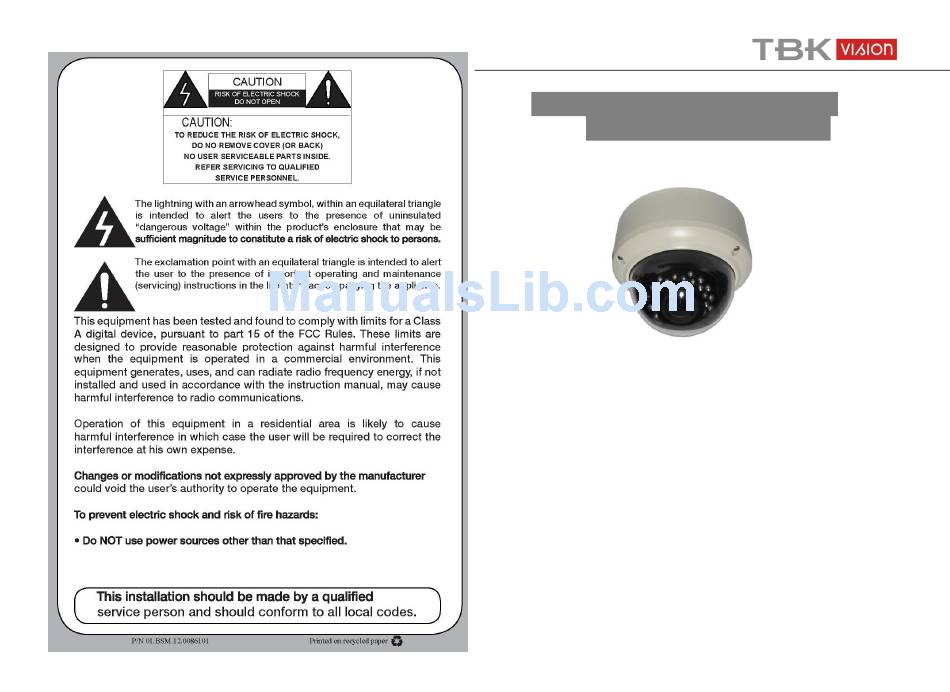

Page 1: User Manual

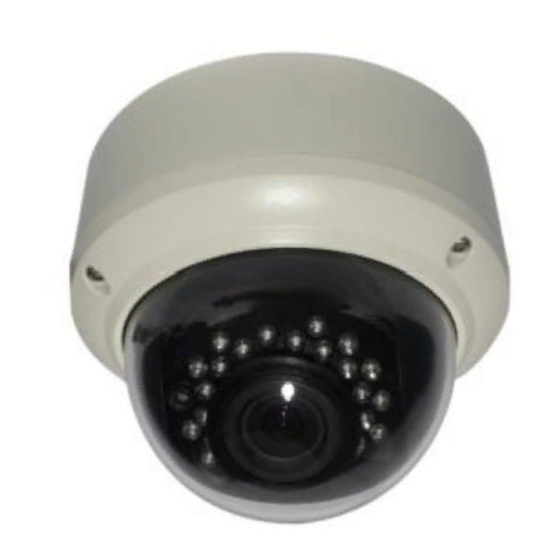

TBK-MD5720EIRV Dome Camera, ICR Day/Nigth Smart IR, Varifocal Lens User Manual TBK-MD5720EIRV... -
Page 2: Installation
Identiication Installation Mechanical Drawing Installation information (General overview) 100° 112 mm 137° 4.4 in 123° 5.1" 130 mm Indoor Dome Dimensions Underside Base hole positions 27 mm 39 mm 1.1 in 1.5 in 7 mm .28 in 115 mm Accessories (A) Wall Plugs (B) Fitting Screws S8 x 30mm 4pc... -
Page 3: Osd Menu Control
CAMERA ADJUSTMENT CAMERA ADJUSTMENT OSD MENU control RCA Service Connector Use supplied RCA - BNC cable OSD function joystick. Pressing down If you require BNC output. SETUP MENU on joystick acts as ENTER function. The OSD control may differ from show above, OSD buttons may re- SETUP MENU place the joystick type. - Page 4 CAMERA ADJUSTMENT CAMERA ADJUSTMENT SHUTTER/AGC LANGUAGE: English,Japanese,German, French Russian, Portuguese, Spanish, Chinese. SETUP MENU LANGUAGE ENGLISH LENS AUTO LENS SHUTTER/AGC AUTO WHITE BAL DAY/NIGHT AUTO PICT ADJUST SETUP MENU LANGUAGE ENGLISH LENS AUTO SHUTTER/AGC AUTO WHITE BAL DAY/NIGHT AUTO AUTO SETUP MANUAL SETUP HIGH LUMINANCE MODE...
-
Page 5: White Bal
CAMERA ADJUSTMENT CAMERA ADJUSTMENT MANUAL SETUP ATW FRAME: x0.50 / x1.00 / x1.50 / x2.00 MODE: X1.00 ENVIRONMENT: SHUTTER: OUTDOOR AGC: PUSH USER1 USER1 WB USER2 WB WHITE BAL B-GAIN B-GAIN R-GAIN R-GAIN SETUP MENU LANGUAGE ENGLISH LENS AUTO SHUTTER/AGC AUTO WHITE BAL DAY/NIGHT AUTO... - Page 6 CAMERA ADJUSTMENT CAMERA ADJUSTMENT LEVEL: DELAY CNT: DAY - NIGHT: NIGHT - DAY: PUSH LOCK B/W SETUP: B/W SETUP BURST DAY/NIGHT IR OPTIMIZER AUTO / COLOR / B/W /EXT1 /EXT2 MODE AUTO LEVEL SETUP MENU LANGUAGE ENGLISH LENS AUTO RETURN SHUTTER/AGC AUTO WHITE BAL DAY/NIGHT...
-
Page 7: Pict Adjust
CAMERA ADJUSTMENT CAMERA ADJUSTMENT Y LEVEL: PICT ADJUST SETUP MENU LANGUAGE ENGLISH LENS AUTO C LEVEL: SHUTTER/AGC AUTO WHITE BAL DAY/NIGHT AUTO PICT ADJUST 2DNR Picture and display control settings NEXT PICT ADJUST SHUTTER/AGC AUTO WHITE BAL MIRROR DAY/NIGHT AUTO BRIGHTNESS PICT ADJUST CONTRAST... -
Page 8: Motion Det
CAMERA ADJUSTMENT CAMERA ADJUSTMENT TOP: D-WDR BOTTOM: LUMINANCE CONTRAST LEFT: RETURN RIGHT: COLOR: TRANSP: MOSAIC: MOTION DET OFF / ON PRIVACY OFF / ON MOTION DET DETECT SENSE BLOCK DISP PRIVACY MOTION AREA ON AREA SEL 1 / 4 AREA SEL 1 / 4 BOTTOM BOTTOM... -
Page 9: Camera Reset
CAMERA ADJUSTMENT CAMERA ADJUSTMENT PHASE RETURN SYNC INT / LL Note: PHASE: CAMERA ID OFF / ON CAMERA RESET CAMERA TITLE SETUP CAMERA ABCDEFGHIJKLMNOPQRSTUV EXIT / SAVE ALL WXYZ0123456789-!#$%&’ ()_`.:;<=> @^*./^*X+/ CHR1 CHR2 CLR POS EXIT RETURN SAVE ALL...
