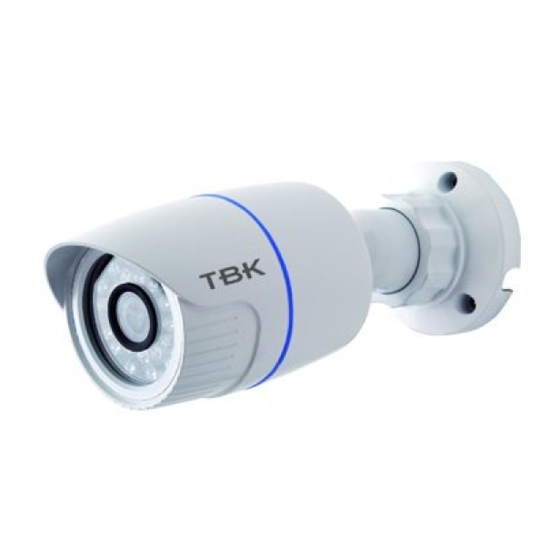

- Page 1 Megapixel User Manual IP camera TBK-BUL7443EIR / TBK-BUL7444EIR TBK-BUL7543EIR / TBK-MD7543EIR TBK-MD7544EIR / TBK-MD7545EIR TBK-BOX7241 Please read this instruction carefully for correct use of the product and preserve it for reference purposes www.tbkvision.com...
- Page 2 Network Camera User Manual Notes on Safety Please use the specified power supply to connect. Do not attempt to disassemble the camera; in order to prevent electric shock, do not remove screws or covers. There are no user-serviceable parts inside. Please contact the nearest service center as soon as possible if there is any failure.
-
Page 3: Table Of Contents
Network Camera User Manual Table of Contents Introduction ......................1 IE Remote Access ....................2 LAN ..........................2 Access through IP-Tool ..................2 2.1.1 2.1.2 Directly Access through IE ................. 3 WAN ..........................5 Remote Preview ....................8 Remote Live Surveillance ..................9 System Configuration ....................... - Page 4 Network Camera User Manual Block and Allow Lists ..................34 4.6.3 Maintenance Configuration ....................34 4.7.1 Backup and Restore ..................34 Reboot ......................35 4.7.2 Upgrade ......................35 4.7.3 4.7.4 Operation Log ....................36 Record Search....................37 Appendix ........................38 Appendix 1 Q&...
-
Page 5: Introduction
Network Camera User Manual 1 Introduction This IP-CAMERA (short for IP-CAM) is designed for high performance CCTV solutions. It adopts state of the art video processing chips. It utilizes most advanced technologies, such as video encoding and decoding technology, complies with the TCP/IP protocol, SoC, etc to ensure this system more stable and reliable. -
Page 6: Ie Remote Access
Network Camera User Manual 2 IE Remote Access You may connect IP-Cam via LAN or WAN. Here only take IE browser (6.0) for example. The details are as follows: 2.1 LAN In LAN, there are two ways to access IP-Cam: 1. access through IP-Tool; 2. directly access through IE browser. -
Page 7: Directly Access Through Ie
Network Camera User Manual For example, the IP address of your computer is 192.168.1.4. So the IP address of the camera shall be changed to 192.168.1.X. After modification, please input the password of the administrator and click “Modify” button to modify the setting. ... - Page 8 Network Camera User Manual You may use the above default settings when you log in the camera for the first time. You may directly connect the camera to the computer through network cable. ① Manually set the IP address of the PC and the network segment should be as the same as the default settings of the IP camera.
-
Page 9: Wan
Network Camera User Manual ② Open the IE browser and input the default address of IP-CAM and confirm. The IE browser will download Active X control automatically. ③ After downloading Active X control, the login dialog box will pop up. ④... - Page 10 Network Camera User Manual ③ Go to the router’s management interface through IE browser to forward the IP address and port of the camera in the “Virtual Server”. Router Setup ④ Open the IE browser and input its WAN IP and http port to access. ➢...
- Page 11 Network Camera User Manual ④ Open the IE browser and input the domain name and http port to access. ➢ Access through static IP Network connection The setting steps are as follow: ① Go to ConfigNetworkPort menu to set the port number. ②...
-
Page 12: Remote Preview
Network Camera User Manual 3 Remote Preview After you log in, you will see the following window. The following table is the instructions of the icons on the remote preview interface. Icon Description Icon Description Original size Scene change indicator icon Appropriate size Abnormal clarity indicator icon Auto... -
Page 13: Remote Live Surveillance
Network Camera User Manual 4 Remote Live Surveillance 4.1 System Configuration The “System” configuration includes three submenus: Basic Information, Date and Time and Local Config. 4.1.1 Basic Information In the “Basic Information” interface, you can check the relative information of the device. 4.1.2 Date and Time Go to ConfigSystemDate and Time. -
Page 14: Local Config
Network Camera User Manual 4.1.3 Local Config Go to ConfigSystemLocal Config. You can set the storage path of the captured pictures and video records. You can also enable or disable the video audio. 4.2 Image Configuration Image Configuration includes Display, Video/Audio, OSD, Video Mask and ROI Config. 4.2.1 Display Configuration Go to ImageDisplay interface as shown below. -
Page 15: Video / Audio Configuration
Network Camera User Manual As to the WDR scene, WDR will help the camera provide clear images when there are both very bright and very dark areas simultaneously in the field of the view by lowering the brightness of the highlight area and increasing the brightness of the lowlight area. High, middle and low can be selected. - Page 16 Network Camera User Manual Three video streams can be adjustable. Resolution: The higher the resolution is, the clearer the image is. Frame rate: The higher the frame rate is, the more fluency the video is. However, more storage room will be taken up. Bitrate type: Including CBR and VBR.
-
Page 17: Osd Configuration
Network Camera User Manual 4.2.3 OSD Configuration Go to ImageOSD interface as shown below. You may set time stamp, device name and OSD content here. After enabling the corresponding display and entering the content, drag them to change their position. Then click “Save”... -
Page 18: Roi Configuration
Network Camera User Manual Clear the video mask: Go to video mask interface and then click “Clear” button to delete the current video mask area. 4.2.5 ROI Configuration Go to ImageROI Config interface as shown below. 1. Check “Enable” and then click “Draw Area” button. 2. -
Page 19: Alarm Configuration
Network Camera User Manual 4.3 Alarm Configuration Alarm configuration includes two submenus: Motion Detection and Alarm Server. 4.3.1 Motion Detection Go to AlarmMotion Detection to set motion detection alarm. 1. Check “Enable Alarm” check box to activate motion based alarm, choose alarm holding time and set alarm trigger options. - Page 20 Network Camera User Manual Move the “Sensitivity” scroll bar to set the sensitivity. Select “Add” and click “Draw” button and drag mouse to select the motion detection area; Select “Erase” and drag the mouse to clear motion detection area. After that, click “Save” to save the settings. 3.
-
Page 21: Alarm Server
Network Camera User Manual means one day of a week; the rank means 24 hours of a day. Green means selected area. Blank means unselected area. “Add”: Add the schedule for a special day. “Erase”: Delete holiday schedule. Day schedule Set alarm time for alarm in some time of a special day, such as holiday. - Page 22 Network Camera User Manual 1. Enable object removal detection and then select the detection type. Enable Left Detection: The relevant alarms will be triggered if there are items left in the pre-defined alarm area. Enable Item Missing Detection: The relevant alarms will be triggered if there are items missing in the pre-defined alarm area.
-
Page 23: Exception
Network Camera User Manual button to stop drawing. Click “Clear” button to delete the alarm area. Click “Save” button to save the settings. 5. Set the schedule of the object removal detection. The setting steps of the schedule are the same with that of motion detection. - Page 24 Network Camera User Manual 1. Enable the relevant detection as required. Scene Change Detection: The relevant alarms will be triggered if the scene of the monitor video has changed. Video Blur Detection: The relevant alarms will be triggered if the monitor video is blurry. Video Cast Detection: The relevant alarms will be triggered if color cast happens to the monitor video.
-
Page 25: Line Crossing
Network Camera User Manual ※ Application Scenario Illustration 1. Auto-focusing function should not been enabled for exception detection. 2. Try not to enable object removal detection when light changes greatly in the scene. 3. Please contact us for more detailed application scenarios. 4.4.3 Line Crossing Line Crossing: The relevant alarms will be triggered if someone or something crosses the pre-defined alarm lines. - Page 26 Network Camera User Manual Set the cordon number and direction. You can add 4 cordons at most. Direction：A<->B, A->B and A<-B optional. It is the crossing direction of the intruder who crosses over the alarm line. A<->B: The alarm will be triggered when the intruder crosses over the alarm line from B to A or from A to B.
-
Page 27: Intrusion
Network Camera User Manual There are so many trees near the road and cars running on the road, which make the scene too complex to detect the crossing objects. The ground is covered with vegetation; at the right of the fence is a gym where people pass by frequently. - Page 28 Network Camera User Manual 1. Enable region intrusion detection alarm and set the alarm holding time. 2. Set alarm trigger options. The setting steps are the same with that of motion detection. Please refer to motion detection chapter for details. 3.
- Page 29 Network Camera User Manual 1. Auto-focusing function should not been enabled for intrusion detection. If enabled, the video image will change so greatly that the algorithm will stop working temporarily. 2. Try not to enable intrusion detection when light changes greatly in the scene. 3.
-
Page 30: Network Configuration
Network Camera User Manual 4.5 Network Configuration 4.5.1 TCP/IP Go to ConfigNetworkTCP/IP interface as shown below. There are two ways for network connection. Use IP address (take IPv4 for example)-There are two options for IP setup: obtain an IP address automatically by DHCP protocol and use the following IP address. Please choose one of the options for your requirements. -
Page 31: Port
Network Camera User Manual Trigger Email: when the IP address of the device is changed, a new IP address will be sent to the appointed mailbox automatically Trigger FTP: when the IP address of the device is changed, a new IP address will be sent to FTP server. -
Page 32: Ddns
Network Camera User Manual 4.5.4 DDNS If your camera is set to use PPPoE as its default network connection, DDNS should be set for network access. Before you set the DDNS, please make sure you have registered a domain name on the DDNS server. 1. -
Page 33: Snmp
Network Camera User Manual After you successfully request your domain name, you will see your domain in the list. 3. Input the username, password, domain you apply for in the DDNS configuration interface. 4. Click “Save” button to save the settings. 4.5.5 SNMP To get camera status, parameters and alarm information and remotely manage the camera, you can set the SNMP function. -
Page 34: Rtsp
Network Camera User Manual 2. Check the corresponding version checkbox (Enable SNMPv1, Enable SNMPv2, Enable SNMPv3) according to the version of the SNMP software you download. 3. Set the “Read SNMP Community”, “Write SNMP Community”, “Trap Address”, “Trap Port” and so on. Please make sure the settings are the same as that of your SNMP software. Note: Please use the different version in accordance with the security level you required. -
Page 35: Email
Network Camera User Manual 4.5.8 Email If you need to trigger Email when an alarm happens or IP address is changed, please set the Email here first. Go to ConfigNetwork Email. Sender Address: Sender’s e-mail address. User name and password: Sender’s user name and password. Server Address: The SMTP IP address or host name. -
Page 36: Ftp
Network Camera User Manual 4.5.9 FTP After you set the FTP server, the captured pictures on an alarm will be uploaded to the FTP server. Go to ConfigNetwork FTP. To Add FTP: Server Name: The name of the FTP. Server Address: The IP address or domain name of the FTP. Upload Path: The path of uploading the files. - Page 37 Network Camera User Manual 2. Input user name in “User Name” textbox. 3. Input letters or numbers in “Password” and “Confirm Password” textbox. 4. Choose the use type. 5. Input the MAC address of the PC in “Bind MAC” textbox. After binding physical address to the IP-CAM, you can access the device on this PC only.
-
Page 38: Online User
Network Camera User Manual Delete user: 1. Select the user you want to delete in the user configuration list box. 2. Click “Delete” button to delete the user. Note: The default super administrator cannot be deleted. 4.6.2 Online User Go to ConfigSecurityOnline User. You can view the user who is viewing the live video. 4.6.3 Block and Allow Lists Go to ConfigSecurityBlock and Allow Lists interface as shown below. -
Page 39: Reboot
Network Camera User Manual Import & Export Settings You can import or export the setting information from PC or to device. 1. Click “Browse” to select save path for import or export information on PC. 2. Click “Import Setting” or “Export Setting” button. ... -
Page 40: Operation Log
Network Camera User Manual 4.7.4 Operation Log To query and export log: 1. Go to ConfigMaintenanceOperation Log. 2. Select the main type, sub type, start and end time. 3. Click “Search” to view the operation log. 4. Click “Export” to export the operation log. www.tbkvision.com... -
Page 41: Record Search
Network Camera User Manual 5 Record Search Click Search to go to the interface as shown below. You can play the local video record. Before playing, please set the storage path of the video record in the local configuration interface and make sure there are record files. Choose the date and the start time and end time and then click “Search”... -
Page 42: Appendix
Network Camera User Manual Appendix Appendix 1 Q& A Q: How to find my password if I forget it? A：Reset the device to the default factory settings. Default IP: 192.168.226.201; User name: admin; Password: 123456 Q：Fail to connect devices through IE browser, why? A: Network is not well connected. -
Page 43: Appendix 2 Installation Of Water-Proof Rubber Plug
Network Camera User Manual Q：No sound can be heard, why? A：Audio input device is not connected. Please connect and try again. B: Audio function is not enabled at the corresponding channel. Please enable this function. Appendix 2 Installation of Water-proof Rubber Plug In order to improve the water-proof effect, the rubber plugs are attached to some network bullet cameras. - Page 44 Network Camera User Manual TBK-BUL7443EIR Camera Image sensor 1/3＂CMOS Image Size 2592X1520 (4 MegaPixels) Electronic Shutter 1/25s~1/100000s Auto Iris Iris fjo Min. Ilumination 0.05 lux color, 0.01 lux B/N (F1.2, AGC ON) Lens 3.6mm @ F1.6, ángulo 79° Lens Mount Day &...
- Page 45 Network Camera User Manual TBK-BUL7444EIR Camera Image sensor 1/3＂CMOS Image Size 2592X1520 (4 MegaPixels) Electronic Shutter 1/25s~1/100000s Auto Iris Fixed Iris 0.05 lux color, 0.01 lux B/N (F1.2, AGC Min. Ilumination Lens 3.3 ~ 12 mm Lens Mount M12 y Ø14 Day &...
- Page 46 Network Camera User Manual TBK-BUL7445EIR Camera Image sensor 1/3＂CMOS Image Size 2592X1520 (4 MegaPixels) Electronic Shutter 1/25s~1/100000s Auto Iris Fixed Iris 0.05 lux color, 0.01 lux B/N (F1.2, AGC Min. Ilumination Lens 3.3 ~ 12 mm Motorized Lens Lens Mount M12 y Ø14 Day &...
- Page 47 Network Camera User Manual TBK-MD7543EIR Camera Image sensor 1/3＂CMOS Image Size 2592X1520 (4 MegaPixels) Electronic Shutter 1/25s~1/100000s Auto Iris Iris fjo Min. Ilumination 0.05 lux color, 0.01 lux B/N (F1.2, AGC ON) Lens 3.6mm @ F1.6, ángulo 79° Lens Mount Ø14 Day &...
- Page 48 Network Camera User Manual TBK-MD7544EIR Camera Image sensor 1/3＂CMOS Image Size 2592X1520 (4 MegaPixels) Electronic Shutter 1/25s~1/100000s Auto Iris Fixed Iris Min. Ilumination 0.05 lux color, 0.01 lux B/N (F1.2, AGC ON) Lens 3.3 ~ 12 mm Lens Mount M12 y Ø14 Day &...
- Page 49 Network Camera User Manual TBK-MD7545EIR Camera Image sensor 1/3＂CMOS Image Size 2592X1520 (4 MegaPixels) Electronic Shutter 1/25s~1/100000s Auto Iris Fixed Iris Min. Ilumination 0.05 lux color, 0.01 lux B/N (F1.2, AGC ON) Lens 3.3 ~ 12 mm Motorized Lens Lens Mount M12 y Ø14 Day &...
- Page 50 Network Camera User Manual TBK-BOX7241 Camera Image sensor 1/3＂CMOS Image Size 2592X1520 (4 MegaPixels) Electronic Shutter 1/25s~1/100000s Auto Iris Autoiris DC 0.05 lux color, 0.01 lux B/N (F1.2, AGC Min. Ilumination Lens No incluida. Montura C/CS Lens Mount Ø14 Day & Night Digital NR 3D DNR 120dB...
