Page 1: User Manual

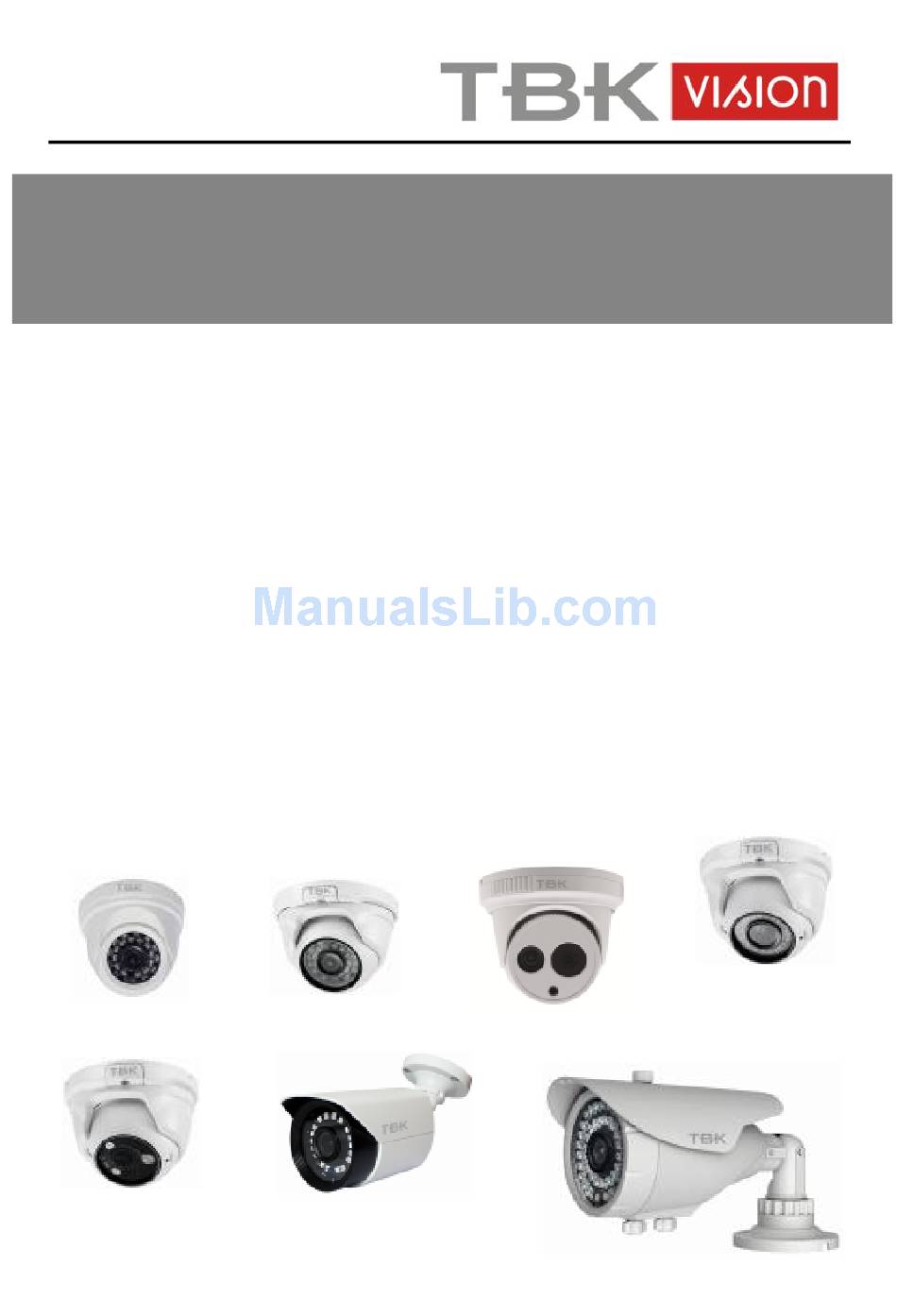

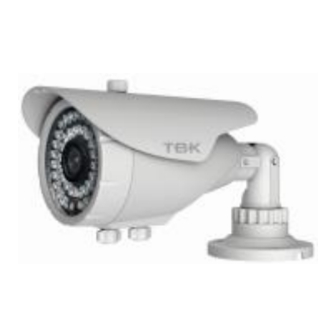

Cameras HD 1080P 4 in 1 HD-TVI / AHD /HD-CVI/CVBS User Manual TBK-MD5541IR, TBK-MD5542EIR, TBK-MD5543EIR, TBK-MD5741EIR, TBK-MD5742EIR, TBK-BUL4541EIR, TBK-BUL4741EIR... -
Page 2: Product Description
1080P HD Camera Series Product description 1.1 Product Introduction This manual is applicable to following models: TBK-MD5541IR, TBK-MD5542EIR, TBK-MD5543EIR, TBK-MD5741EIR, TBK-MD5742EIR, TBK-BUL4541EIR, TBK-BUL4741EIR. This series of cameras use 2MP sensor, support TVI/AHD/CVI 1080P and CVBS video signal output selectionable. These cameras are adjusted with TVI output by default, please select other video signal through menu cable switch. -
Page 3: Product Features
1080P HD Camera Series 1.2 Product Features Use AR0237 high performance image processing chips. Resolution 1920*1080. Support HD TVI, AHD, HD-CVI or CVBS video output, no delay, lossless, long distance transmission up to 500m. Double filter IR-CUT switch, good sharpness, lower noise. -
Page 4: Product Structure
1080P HD Camera Series Product Structure The followings are the dimensions of some products. No further notice for the upgraded version. Model TBK-MD5541IR Model TBK-MD5542EIR www.tbkvision.com... - Page 5 1080P HD Camera Series Model TBK-MD5543EIR Model TBK-MD5741EIR y TBK-MD5742EIR www.tbkvision.com...
- Page 6 1080P HD Camera Series Model TBK-BUL4541EIR Model TBK-BUL4741EIR www.tbkvision.com...
-
Page 7: Technical Parameters
1080P HD Camera Series Technical Parameters 1/2,7" color CMOS（1080P/2MP） Image Sensor Format PAL/NTSC Resolution TVI / CVI /AHD: 1920 x 1080P CVBS: 650 / 700 LTV 0.1 lux F1.2（0 lux with IR LED ON） Min. Illumination Video Output Switchable (no simultaneous): HD 1080P:TVI/ AHD/ CVI or CVBS 30fps（60Hz）25fps (50Hz) Frame rate... - Page 8 Working enviroment -20ºC ~ +50ºC, 10% ~ 90% humidity 12VDC ±10%. It is recommended to use Power 12VDC 2A power supply. Consump. Weight Dimesions mm TBK-MD5541IR 665 mA 250 g H70 x Ø100 TBK-MD5542EIR 800 mA 460 g H64 x Ø97...
- Page 9 1080P HD Camera Series Lens LEDS IR LEDS range TBK-MD5541IR 3.6 mm 20 m TBK-MD5542EIR 2.8 mm 25 m TBK-MD5543EIR 3.6 mm 1 Array 25 m TBK-MD5741EIR 2.8-12mm 25 m TBK-MD5742EIR 2.8-12mm 3 Array 30 m TBK-BUL4541EIR 3.6 mm 18 Piranha...
-
Page 10: Product Installation
1080P HD Camera Series Product Installation Avoid installing the camera directly towards the sun. Do not install it in the place where temperature is above 50℃ or below -20℃. No installation in the areas with frequent vibration. Avoid operating and storing in the water. Video cable connector and DC tie-in must be avoided touching water. - Page 11 1080P HD Camera Series Configuration These cameras are adjusted with TVI video output by default, please select other video signal through menu cable switch. In order to switch from one video output to another other hold down the option 5 seconds at least. The same video technology between camera and DVR must be used.
- Page 12 1080P HD Camera Series 1080P HD-TVI video signal (by default) 1080P HD-CVI video signal 1080P AHD video signal CVBS 650/700LTV analogue video signal Menú OSD with the following basic adjustements: AE, options: o BRIGHTNESS: value 1~20 o EXPOSURE MODE: modes GLOBE/ CENTER/ BLC/ FLC o GAIN: value 1~8 ...
-
Page 13: Troubleshooting
1080P HD Camera Series Troubleshooting Problem Reason How to solve Image normal in the day while Power is not Change power vague or being enough or power supply or shorten interfered by cable is too long. power cable. horizontal stripes at night. - Page 14 1080P HD Camera Series www.tbkvision.com www.tbkvision.com...
