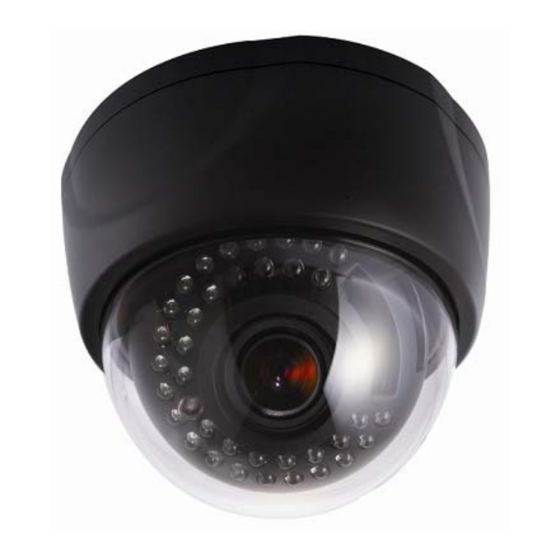

TBK‐MD5707IR36
3-AXIS GIMBAL VARI-FOCAL
DAY&NIGHT IR-LED
INDOOR DOME CAMERA
USER MANUAL
Before installing and using the camera, please read the
instructions thoroughly and retain them for reference.
Caution
This symbol is intended to alert the user to the presence of non insulated "dangerous
voltage" within the product's enclosure that may be of sufficient magnitude to constitute a
risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the
presence of important operating and maintenance (servicing) instructions in the literature
accompanying the product.
Warning
To prevent fire or shock hazard, do not expose the unit to rain or moisture.
To avoid electrical shock, do not open the cabinet.
Refer servicing to qualified personnel only.
Wiring methods shall be in accordance with the National Electric Code.
This product is manufactured to comply with the CE and FCC Certificate standard.
2
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for TBK vision TBK-MD5707IR36
Summary of Contents for TBK vision TBK-MD5707IR36
- Page 1 TBK‐MD5707IR36 Caution 3-AXIS GIMBAL VARI-FOCAL DAY&NIGHT IR-LED INDOOR DOME CAMERA USER MANUAL This symbol is intended to alert the user to the presence of non insulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
-
Page 2: Table Of Contents
Contents Composition Composition ----------------------------------------------- 4 Confirm that the following parts are included: Explanation for Accessories --------------------------- 4 Features ---------------------------------------------------- 5 Dimension -------------------------------------------------- 5 Parts Name and Description --------------------------- 6 Base Installation ------------------------------------------ 7 Connection ------------------------------------------------- 8 3-Axis Gimbal / Zoom & Focus Adjustment -------- 9 Explanation for Accessories ... -
Page 3: Features
Features Parts Name and Descriptions SONY 1/3” Super HAD High-resolution Color CCD 2.8~10.5mm Vari-Focal, DC Auto Iris F1.2 Day & Night Lens Built-in Function selection Dip Switch - ICR switching time, FLK, BLC, AWB Auto switching IR-LED control by photocell (36pcs LEDs) ... -
Page 4: Connection
Connection Installation 1. Open the dome by turning the dome cover ring from the dome base fitting. 2. There are two mounting holes on the dome base so that users can install the unit in any place such as ceiling, wall and etc. 3. - Page 5 3-Axis Gimbal Adjustment Switch & Volume Adjustments 1. Pan: Adjust the first pan angle by returning the gimbal 360˚ degree. (see the figure No.1) 2. Tilt: Adjust the tilt angle by moving the gimal up and down. (see the figure No.2) 3.
-
Page 6: Specifications
Specifications ITEM NTSC Image Sensor 1/3” Interline transfer type color CCD (Sony) Effective Pixels 768H x 494V (380K pixels) 752H x 582V (440K pixels) Scanning System 525 Lines 2:1 Interlace 625 Lines 2:1 Interlace Scanning Frequency 15.734KHz(H), 59.94Jz(V) 15.625KHz(H), 50Hz(V) Resolution 550TVL(Color), 580TVL(B/W) High Shutter Speed...
