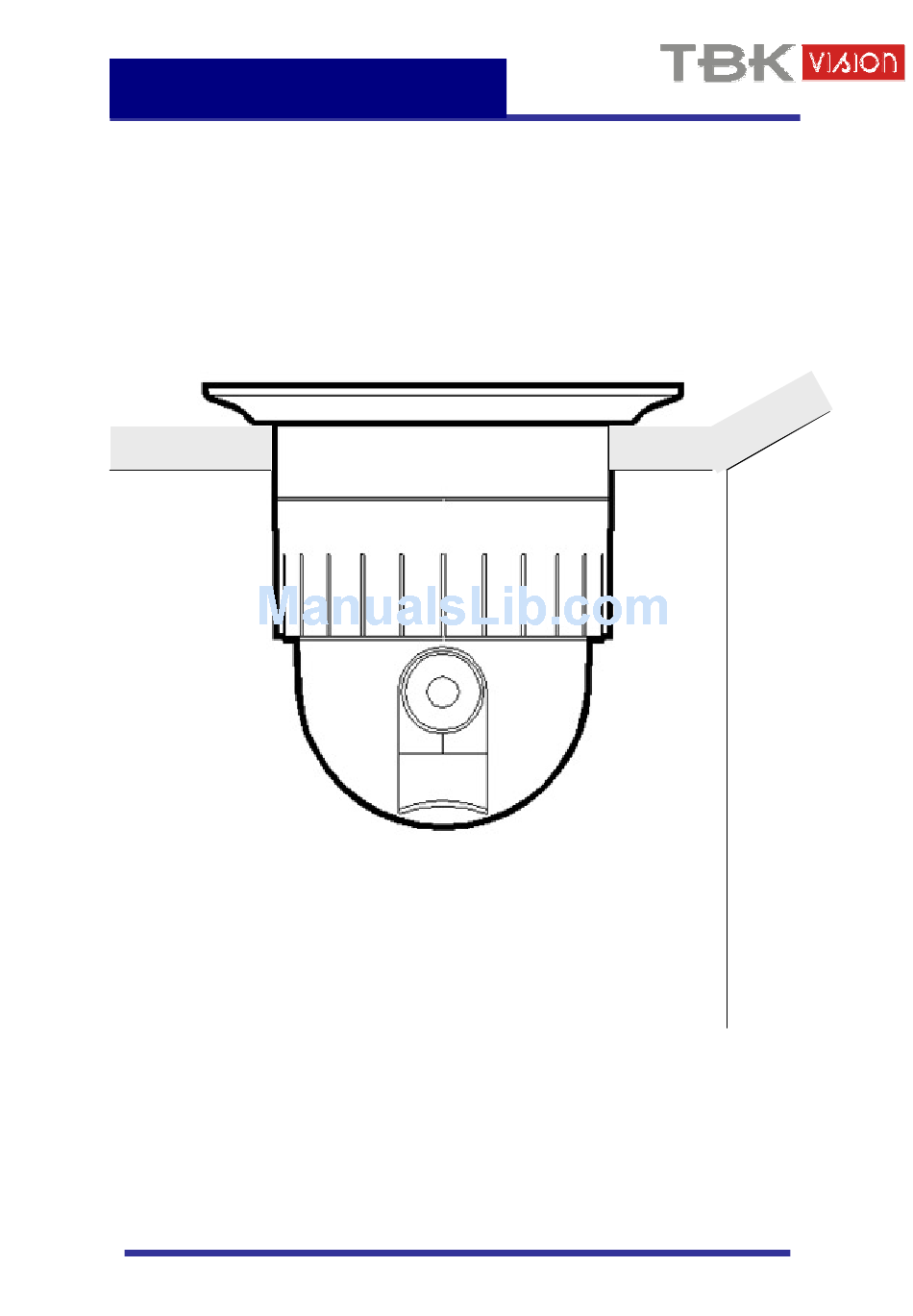

- Page 1 HI-SPEED DOME CAMERA Rev 2.03 dated Dec. 04, 2006...
-
Page 3: Table Of Contents
CONTENTS Warning & Caution What’s in the Box? General Features Names of Each Part Installation A. Connection Methods B. Ceiling Mount Type C. Embedded Mount Type Quick Operating Keys Diagnostic OSD Menu Setting A. OSD Menu Table B. DOME SET C. -
Page 4: Warning & Caution
WARNING & CAUTION If you fail to read this information and handle the product incorrectly, death or serious injury may occur. The unit should be installed by trained Always stop using when the product emits smoke or abnormal heat. This symbol is intended to alert the user to Never install the product in area exposed the presence of un-insulated “dangerous voltage”... -
Page 5: General Features
GENETAL FEATURES World most silent speed dome camera Quick Operation Keys Equipped with silent and smooth timing belt and special This camera provides quick functional keys in other to be gear, low-noisy-technology enhances durable quality of the easily controlled by any other controller or DVR. camera by reducing the mechanical vibration. -
Page 6: Names Of Each Part
NAME OF EACH PART 1. Bubble 8. Video Output 2. Lock Screw 9. Loop RX 3. DIP Switch 1 10. Loop TX 4. DIP Switch 2 11. Power LED 5. Camera 12. Aux 6. Lock Holder 13. Alarm 7. Power 14. -
Page 7: Installation
INSTA LLA TION A. CONNECTION MATHOD FIG.2 FIG.3 FIG.4 To separate camera body Loosen Lock Screw 2mm to the counterclockwise using the wrench. (Don’t pull out the screw) (FIG.2) Separate the upper body from the lower body rotating counterclockwise. (FIG.3, 4) After separating set DIP switches. - Page 8 INSTA LLA TION FIG.8 Alarm : 4 Alarm input : DC 12V 1A can be used as an AUX terminal. Turning on the light and remote control are possible using AUX. : TX transmits Data signal received from RX to other equipment. TX is convenient terminal for connection with Daisy Chain.
-
Page 9: Ceiling Mount Type
INSTA LLA TION B. CEILING MOUNT TYPE SUSPENSION 145.0 mm SAFETY WIRE SCREW ( 4.0) COVER HOLE FIG.10 CEILING BRACKET LOCK HOLDER.1 SAFETY WIRE HOLE MOUNTING HOLE FIG.9 FIG.11 LOCK HOLDER.1 CABLE TIE MOUNT HOLDER LOCK HOLDER.2 FIG.12 Select a ceiling board strong enough to hold the weight approx. 2kg. Prepare a Ø145mm hole in the ceiling board. - Page 10 INSTA LLA TION To assemble, rotate the Camera clockwise by 10°. (FIG.13) Screw up Lock Holders with screws (M3). COVER FIG.15 COVER HOLE COVER LOCK Assemble the Cover. Fix three Cover Locks to three Cover Holes rotating clockwise. (FIG.15) SCREW (M3.0) LOCK HOLDER.1 10°...
-
Page 11: Embedded Mount Type
INSTA LLA TION C. EMBEDDED MOUNT TYPE 190.0 mm FIG.16 SAFETY WIRE HOLE LOCK LEVER LOCK LEVER LOCK LEVER EMBEDED MOUNT LOCK LEVER FIG.17 Prepare an Ø190mm hole in the ceiling board. Fix the safety wire to a suspension to prevent camera from falling. Other side of safety wire is fixed to the safety wire hole. -
Page 12: Quick Operating Keys
QUICK OPERATING KEYS This dome provides three protocols mainly as Pelco D, Pelco P and Maxpro. These protocols are able to use with other DVR or Controller if the equipment has the above protocols. Default setting of this dome is Pelco D / P (auto detection) with 2400 bps (baud rate). [PELCO D/P PROTOCOLS] As the merit of this dome, it has lots of function keys to support the following functions. - Page 13 QUICK OPERATING KEYS pattern operation. When press 92 + preset button, the image is suddenly freeze but the camera is still working as per operation such as tour, pattern or auto scan. To return operating image, press 92 + preset button again.
-
Page 14: Diagnostic
DIAGNOSTIC When Power on, POWER ON, LED ON in the rear side and DIAGONOSTIC is operated. The following messages are displayed on the monitor. CAMERA ID : 001 BAUD RATE : 2400 BPS WAITING……… PAN ORIGIN TEST OK TILT ORIGIN TEST OK TX CONNECTION TEST OK... -
Page 15: Osd Menu Setting
OSD MENU SETTING A. OSD MENU TABLE... -
Page 16: Dome Set
OSD MENU SETTING To enter OSD Menu, press the button 95+Preset (Maxpro 90+Preset) then OSD Main Menu is displayed. MAIN MENU DOME SETUP CAMERA SET AUTO SCAN TOUR PRAVACY PATTERN ALARM SECTOR EXIT * Use the joystick up down to move the position and left right to make selection B. - Page 17 OSD MENU SETTING is OFF B-3. DOME SET - MANUAL SPEED Manual Speed of Pan/Tilt is selectable from 100°/sec up to 200°/sec. The default setting is 150°/sec B-4. DOME SET - AUTO FLIP Auto Flip is available and the default setting is OFF. Move joystick right or left direction is for selecting OFF or ON.
- Page 18 OSD MENU SETTING ENTER PASSWORD BY ENTERING PRESET CODE PASSWORD *** CONFIRM *** Press any number from 001~200 with preset button on password typing location and again it on confirm location. Then “CONFIRMED” is displayed on the monitor and the menu will change to the previous page automatically.
- Page 19 OSD MENU SETTING SYSTEM STATUS PROTOCOL : PELCO , P BAUD RATE : 2400 BPS FIRMWARE VER. : 2.01 DEFAULT SETTING UPGRADED DATE : 02.28,06 CAMERA MODULE : EX980P [PREVIOUS PAGE] - Protocol and baud rate are shown due to the dip switch setting (Refer to page 30, 31 and 32) - Firmware version and upgraded date will change if upgraded.
- Page 20 OSD MENU SETTING Then flickered each item such as Tour, preset, sector and so on are displayed on the monitor about 2~3 seconds. After this process, the menu is return to the previous page. * [PRESET CLEAR], [SECTOR CLEAR], [PRIVACY CLEAR], [PATTERN CLEAR] are same as [TOUR CLEAR].
-
Page 21: Camera Set
OSD MENU SETTING C. CAMERA SET CAMERA SET FLICKER : OFF MIRROR : OFF APERTURE : 10 D ZOOM : OFF WB MODE : AWB MODE DEFAULT SETTING PIC FLIP : OFF : OFF D/N MODE : AUTO DSS MODE : OFF EXIT C-1. - Page 22 OSD MENU SETTING The default setting is OFF and the camera present two BLC modes as OFF/ON. OFF – Backlight compensation is not activated. ON – Back light compensation is activated. This feature is also working as 93 + preset button. C-8.
-
Page 23: Preset
OSD MENU SETTING D. PRESET SET To enter PRESET SET, move joystick to the right direction. PRESET SET PRESET NO :001 PRESET ID :PRESET001□□□□□□□□□ PAN: XXX.X TILT: XX.X DEFAULT SETTING SAVE EXIT D-1. PRESET – PRESET NO. Up to 165 numbers (1~64, 100~200) of preset positions are available. Move joystick to the right or left direction to select preset no. -
Page 24: Auto Scan
OSD MENU SETTING E. AUTO SCAN SET * 66 + preset (Maxpro: 86+Preset) button is working as AUTO SCAN after setting. AUTO SCAN SET START ANGLE : XXX.X.XX.X END ANGLE : XXX.X.XX.X DIRECTION : CW ENDLES : OFF DEFAULT SETTING SPEED : 10°/S DWELL TIME... -
Page 25: Tour Set
OSD MENU SETTING F. TOUR SET 8 Programmable tours can be set and each tour is available to set up to 60 preset steps. After set the data to the each tour group, 71~78 + preset buttons are working as group tour # 1~8. * Maxpro protocol provides three (3) quick operation keys (87~89 + preset) for Group tour but it is possible to set up to Group tour #8. -
Page 26: Privacy Set
OSD MENU SETTING SAVE then the cursor will move at TOUR STEP 02 automatically F-8. TOUR SET – EXIT To escape this page, move joystick to the right direction G. PRIVACY SET 24 Privacy masking zones make it easy to block out areas of security. (SONY MODUEL ONLY) 4 Privacy masking zones available with Samsung Techwin Module. -
Page 27: Pattern Set
OSD MENU SETTING G-5. PRIVACY SET –EXIT To escape this page, move joystick to the right direction H. PATTERN SET 8 programmable patterns are available with 16 characters of title. After set the data to the each pattern # 1~8, 81~88+ preset buttons are working as Pattern # 1~8. * Maxpro protocol provides six (6) quick operation keys (80~85 + preset) for patterns but it is possible to set up to pattern #8. -
Page 28: Alarm Set
OSD MENU SETTING I. ALARM SET 4 Alarm inputs are available and each alarm is activating to presets, group tours or patterns. ALARM SET ALARM NO : 01 DEFAULT SETTING ALARM INPUT: OFF ALARM ACT : 001 SAVE EXIT I-1. ALARM SET –... -
Page 29: Sector Set
OSD MENU SETTING J. SECTOR SET Up to 8 programmable sectors are available with 16 characters. This feature is useful to memory the certain location such as parking zone or so on. SECTOR SET SECTOR NO : 01 SECTOR ID : SECTOR01□□□□□□□□... -
Page 30: Dip Switch Setting
DIP SWITCH SETTING A. ID SETTING The camera has camera ID to be controlled by Controller or DVR. After opening, set ID using DIP SW1. * Factory default : Camera ID = 1 (1-ON, 0-OFF) DIP SW ID VALUE DIP SW ID VALUE DIP SW ID VALUE... - Page 31 01111000 10100010 00110110 11111000 01100010 10110110 00000100 11100010 01110110 10000100 00010010 11110110 01000100 10010010 00001110 11000100 01010010 10001110 00100100 11010010 01001110 DIP SWITCH SETTING 10100100 00110010 11001110 01100100 10110010 00101110 11100100 01110010 10101110 DIP SW ID VALUE DIP SW ID VALUE DIP SW ID VALUE 01101110...
-
Page 32: 485 Termination (Dip Sw2)
00011001 01100011 00101111 10011001 11100011 10101111 01011001 00010011 01101111 11011001 10010011 11101111 00111001 01010011 00011111 10111001 11010011 10011111 01111001 00110011 01011111 11111001 10110011 11011111 00000101 01110011 00111111 10000101 11110011 10111111 01000101 00001011 01111111 11000101 10001011 11111111 DIP SWITCH SETTING B. 485 TERMINATION The 1 of DIP SW2 is used for 100Ω... -
Page 33: Trouble Shooting
D. BAUD RATE SETTING The 7 SW of DIP SW2 above is used for BAUD RATE setting. DIP SW can be changeable to 4800bps, 9600bps. Factory Default: 2400bps. Remark: PELCO D 2400bps PELCO P 4800bps MAXPRO 9600bps DIP SW2-7 DIP SW2-8 BAUD RATE Not Used 2400bps... -
Page 34: Specification
SPECIFICATIONS MODEL 18X module 26X module 23X module 30X module 36X module Pan Rotation Angle 360 ˚ Endless Manual 0.5 ˚ ~ 200 ˚ /sec (64step) Pan Speed Preset Max 350 ˚ /sec , Min 300 ˚ /sec Tilt Rotation Angle 0 ˚... -
Page 35: Dimensions
DIMENSIONS 147.0 134.0 UNITS:mm...
