TBK vision TBK-6008CSV9 Instruction Manual

Vari-focal camera
Hide thumbs
1
2
3
4
5
6
7
Table of Contents

Advertisement

Quick Links

Download this manual
Vari-Focal Camera

Instruction Manual

VER.:1.0, P/N.:040060A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TBK-6008CSV9 and is the answer not in the manual?

Questions and answers

Related Manuals for TBK vision TBK-6008CSV9

Summary of Contents for TBK vision TBK-6008CSV9

  • Page 1: Instruction Manual

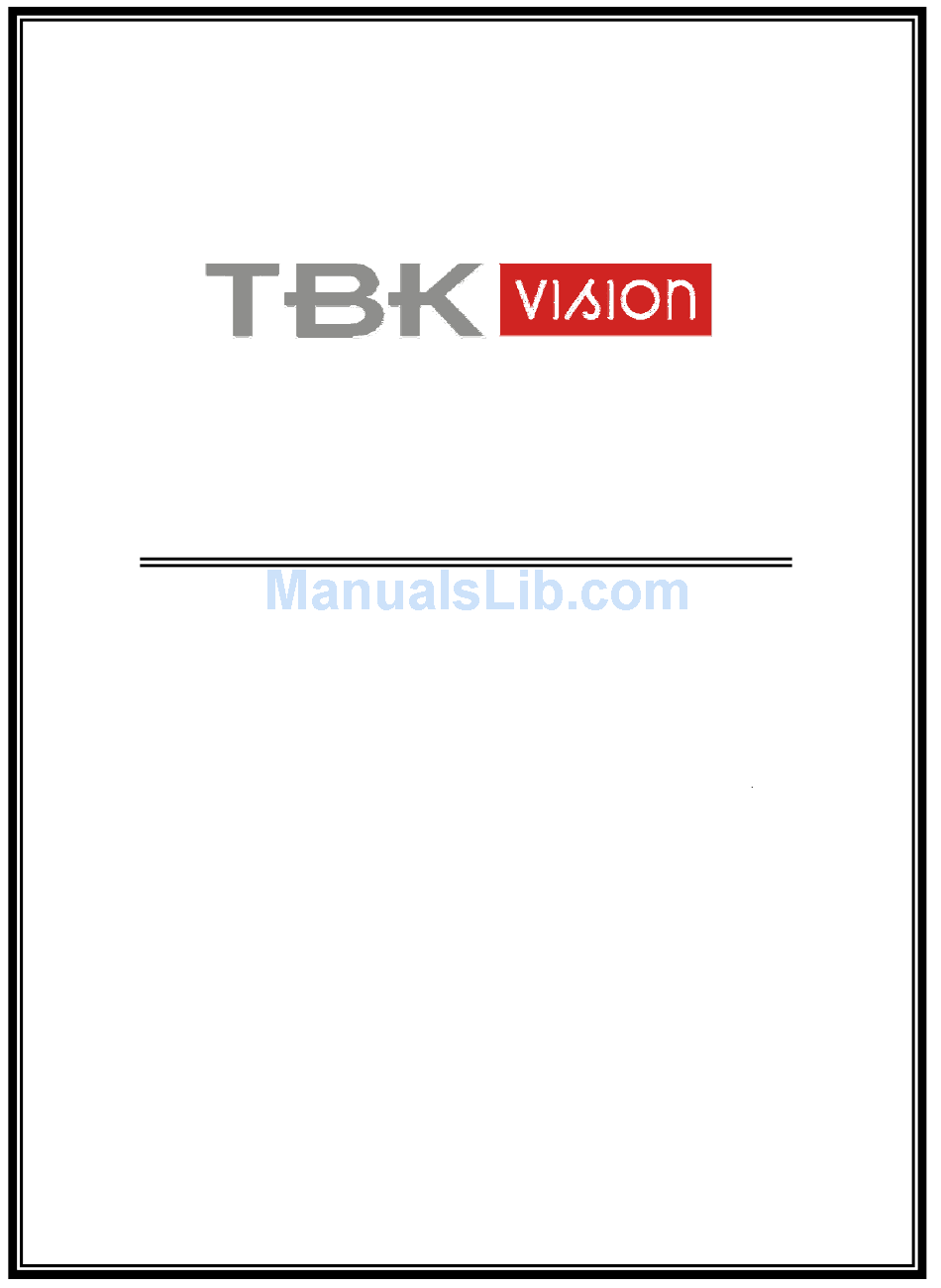

    Vari-Focal Camera Instruction Manual VER.:1.0, P/N.:040060A...
  • Page 2 Thank you very much for purchasing our product. Before operating this product, please read this instruction manual carefully to ensure proper use. 1. Safety Precautious CAUTION RISK OF ELECTRIC SHOCK. DO NOT OPEN! CAUTION : TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO NOT OPEN COVERS. NO USER SERVICEABLE PARTS INSIDE.

  • Page 3: Name Of Each Part

    3. Feature Camera with SONY Super HAD CCD sensor in metal case. Pixel number: NTSC=380K/ PAL=440K (EIA=380K/ CCIR=440K) for high resolution models, and NTSC=270K/ PAL=320K (EIA=270K/ CCIR=320K) for normal resolution models. High anti-blooming and low smear. Powerful functions: Auto Electronic Shutter (AES), Auto Gain Control (AGC), Back Light Compensation (BLC), Auto White Balance (AWB), Auto Iris (AI), and Digital Signal Processor (DSP).
  • Page 4 Fig. 2 Fig. 3 Note: AGC & FL function is invalid to BW cameras.
  • Page 5 5. Installation & Operation Please refer to Fig. 1, Fig. 2, or Fig. 3 (Pg2 & Pg3) and setup guide below: Connect the video output (1) to the monitor or other video device through a 75 ohms type coaxial cable. Connect the power source (2) with either an AC power adapter or a DC jack (+12V DC is in the jack center), then the LED indicator (3) will light.

  • Page 6: Specification

    6. Specification Color Camera 1/3“ Color SONY 1/3“ Color SONY Image Device Super HAD Hi-Res. Super HAD NTSC: 510x492 NTSC: 768x494 Picture Elements PAL: 500x582 PAL: 752x582 Resolution 380 TVL 470 TVL Min. Illumination 0.2 Lux/ F2.0 0.3 Lux/ F2.0 S/N Ratio More than 48 dB Electronic Shutter...

  • Page 7: Iris Control

    BW Camera 1/3“ BW SONY 1/3“ BW SONY Image Device Super HAD Hi-Res. Super HAD NTSC: 510x492 NTSC: 768x494 Picture Elements PAL: 500x582 PAL: 752x582 Resolution 420 TVL 600 TVL Min. Illumination 0.1 Lux/ F2.0 0.2 Lux/ F2.0 S/N Ratio More than 48 dB Electronic Shutter EIA:1/60s~1/100,000s;...
