Page 33

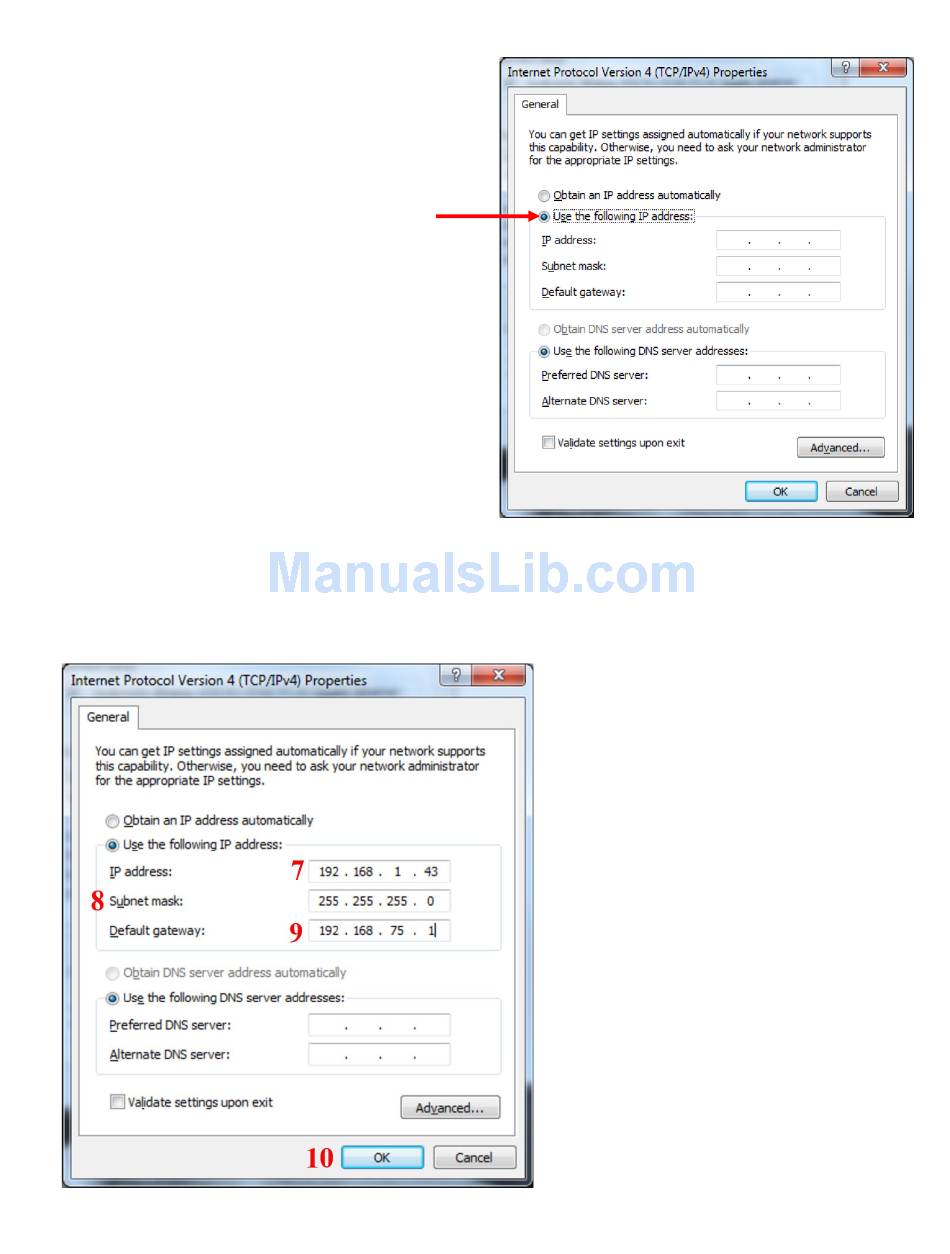

6. Click on the Use the Following IP
address button.
7. Enter a Network address (192.168.1 in this example) and a Host address (43 in this example) in the
IP address: box as shown below.
8. Click on Subnet mask: The default address will appear automatically.
9. Enter the Default gateway address (the Network address 192.168.75 and 1 for the Host address).
10. Click OK to complete the process.
thinklogical
TLX CATx Extension Products Manual Rev. B, August 2016
®
