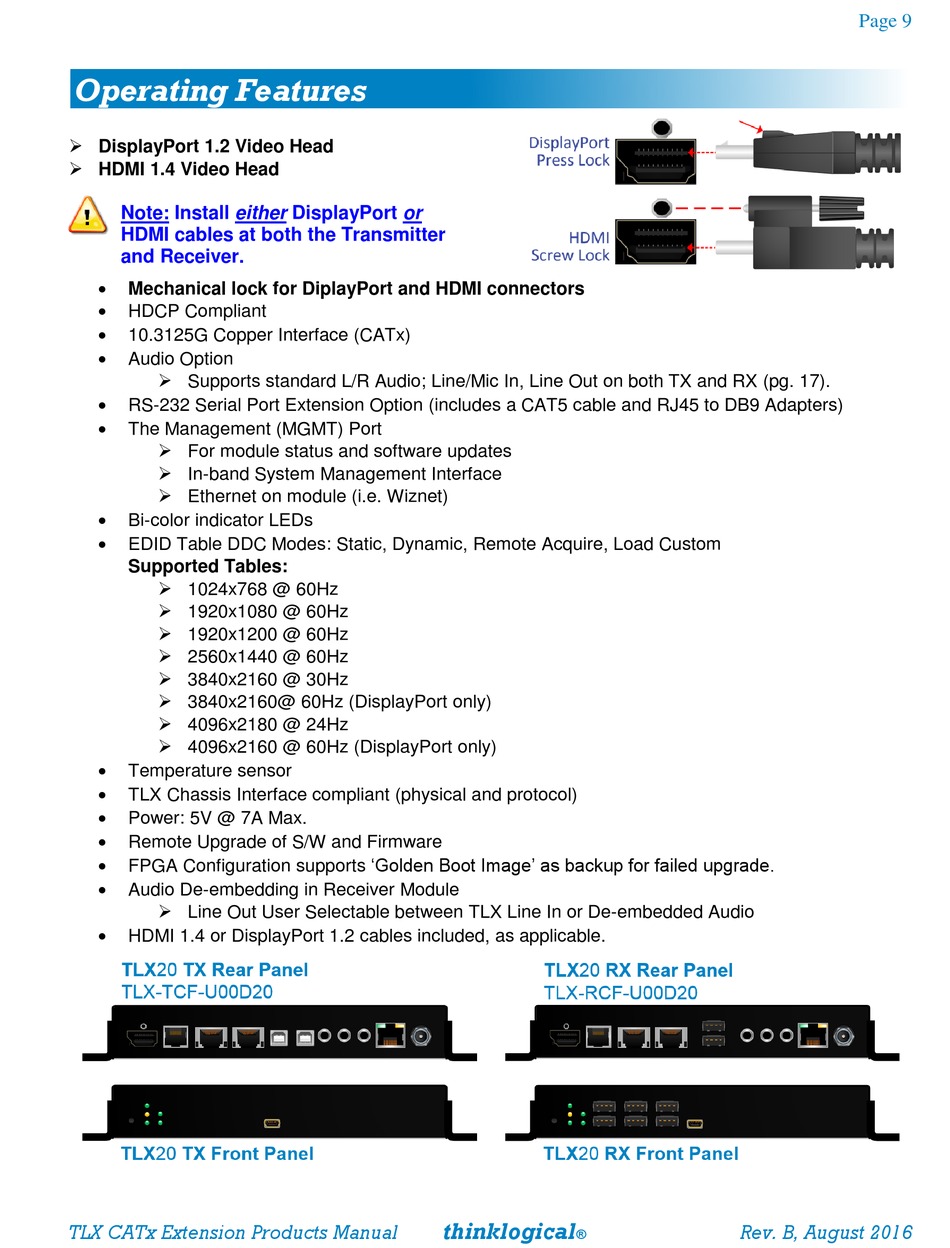

Operating Features

 DisplayPort 1.2 Video Head
 HDMI 1.4 Video Head
Note: Install either DisplayPort or
HDMI cables at both the Transmitter
and Receiver.

Mechanical lock for DiplayPort and HDMI connectors

HDCP Compliant

10.3125G Copper Interface (CATx)

Audio Option
 Supports standard L/R Audio; Line/Mic In, Line Out on both TX and RX (pg. 17).

RS-232 Serial Port Extension Option (includes a CAT5 cable and RJ45 to DB9 Adapters)

The Management (MGMT) Port
 For module status and software updates
 In-band System Management Interface
 Ethernet on module (i.e. Wiznet)

Bi-color indicator LEDs

EDID Table DDC Modes: Static, Dynamic, Remote Acquire, Load Custom
Supported Tables:
 1024x768 @ 60Hz
 1920x1080 @ 60Hz
 1920x1200 @ 60Hz
 2560x1440 @ 60Hz
 3840x2160 @ 30Hz
 3840x2160@ 60Hz (DisplayPort only)
 4096x2180 @ 24Hz
 4096x2160 @ 60Hz (DisplayPort only)

Temperature sensor

TLX Chassis Interface compliant (physical and protocol)

Power: 5V @ 7A Max.

Remote Upgrade of S/W and Firmware

FPGA Configuration supports 'Golden Boot Image' as backup for failed upgrade.

Audio De-embedding in Receiver Module
 Line Out User Selectable between TLX Line In or De-embedded Audio

HDMI 1.4 or DisplayPort 1.2 cables included, as applicable.
