Video Cables
DisplayPort 1.2 Video Cables support up to 4K
@
60Hz
and
are
Transmitters. HDMI 1.4 Video Cables support
up to 4K @ 30Hz and are supplied with TLX10
Transmitters. Both feature a locking mechanism.
A receiver chassis connects to a viewing device
(monitor, projector, etc.) and audio devices with their
own standard cables. The available connector
configurations of the TLX Receivers can be viewed
in detail on pages 10 and 11.
Status Indicator LEDs
The status indicator LEDs on the TLX CATx Extenders are provided as a visual reference for the
various states the device may be in during normal operation.
TLX CATx Extension Products Manual
supplied
with
TLX20
Transmitter

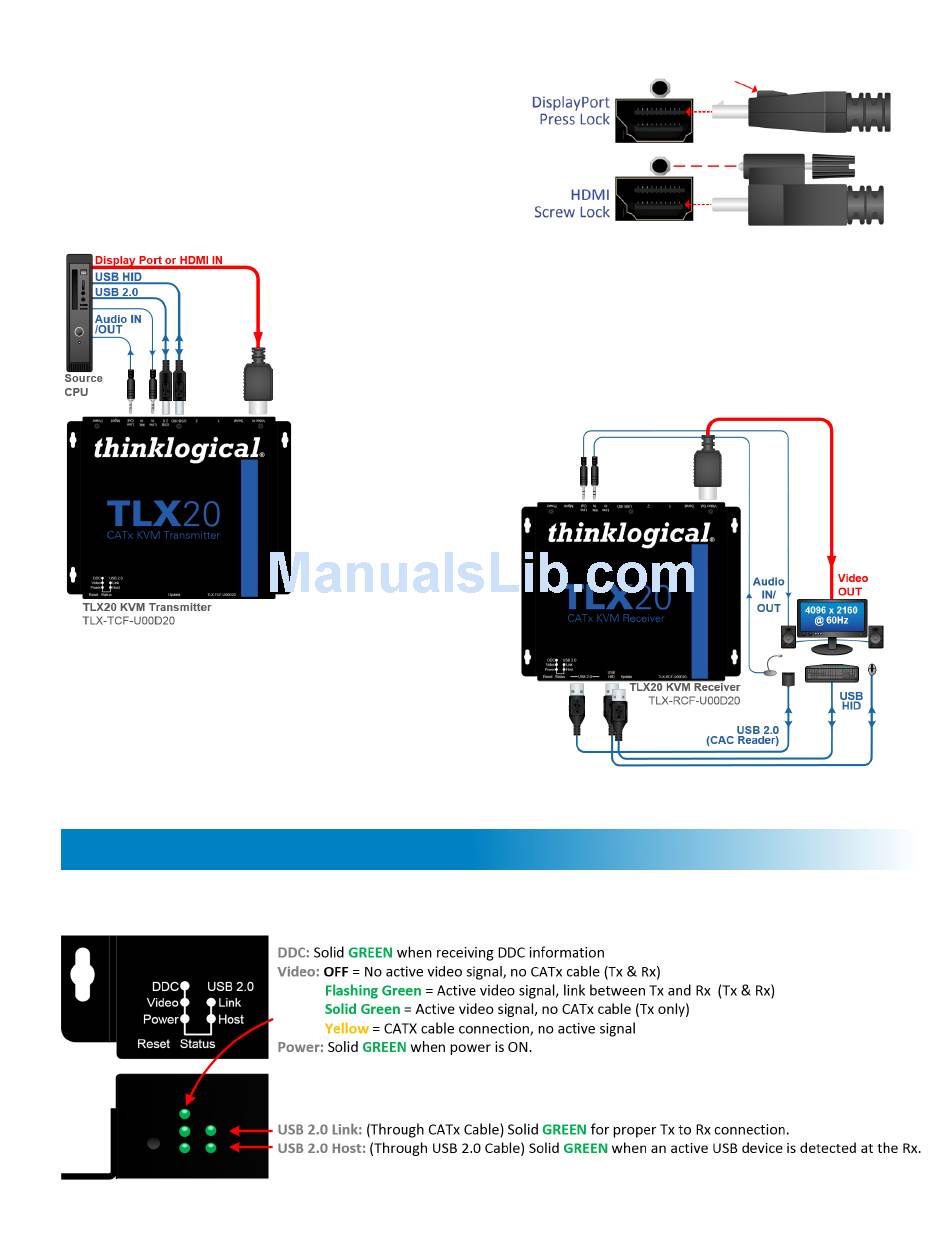

A transmitter chassis connects to the CPU/peripheral sources through
standard copper cables. The available connector configurations of the
TLX Transmitters can be viewed in detail on pages 10 and 11.
Receiver
thinklogical
®
Page 12
Rev. B, August 2016
