TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO
RAIN OR MOISTURE. ALSO, DO NOT USE THIS UNIT'S POLARIZED PLUG
WITH AN EXTENSION CORD RECEPTACLE OR OTHER OUTLETS UNLESS
THE PRONGS CAN BE FULLY INSERTED.
REFRAIN FROM OPENING THE CABINET AS THERE ARE HIGH VOLTAGE
COMPONENTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
Contents
Captive
Signal Cable
User's manual

Quick Start

Power Outlet
Power
Cord
Controls
OSM (On-Screen Manager) control buttons on the front
of the monitor function as follows:
Main Menu
EXIT
Exits the OSM menu.
CONTROL
Moves the highlighted
Y
area left/right to select
/
one of the sub-menus.
CONTROL
Has no function.
–/+
Enters sub-menu.
SELECT
(FE770)
SELECT/
SBMODE
(FE771SB)
Resets all the controls
RESET
within the highlighted
menu to the factory
setting.
NOTE: When RESET is pressed in the main and sub-menu, a warning
window will appear allowing you to cancel the reset function.
NOTE: In SB MODE (SuperBright Mode, FE771SB only), ON and OFF is
functional when the OSM is not displayed.
WARNING
Sales Office List
Power Cord
CD ROM
15-pin mini D-SUB
Figure A
Figure B
Power Button
Sub-Menu
Exits
to
the
controls main menu.
Moves the highlighted
area left/right to select
one of the controls.
Moves the bar in the –
or + direction to de-
crease or increase the
adjustment.
Has no function.
Resets the highlighted
control to the factory
setting.
RISK OF ELECTRIK SHOCK • DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE
COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.
This symbol warns user that uninsulated voltage within the unit may have
sufficient magnitude to cause electric shock. Therefore, it is dangerous to
make any kind of contact with any part inside this unit.
This symbol alerts the user that important literature concerning the operation
and maintenance of this unit has been included. Therefore, it should be read
carefully in order to avoid any problems.

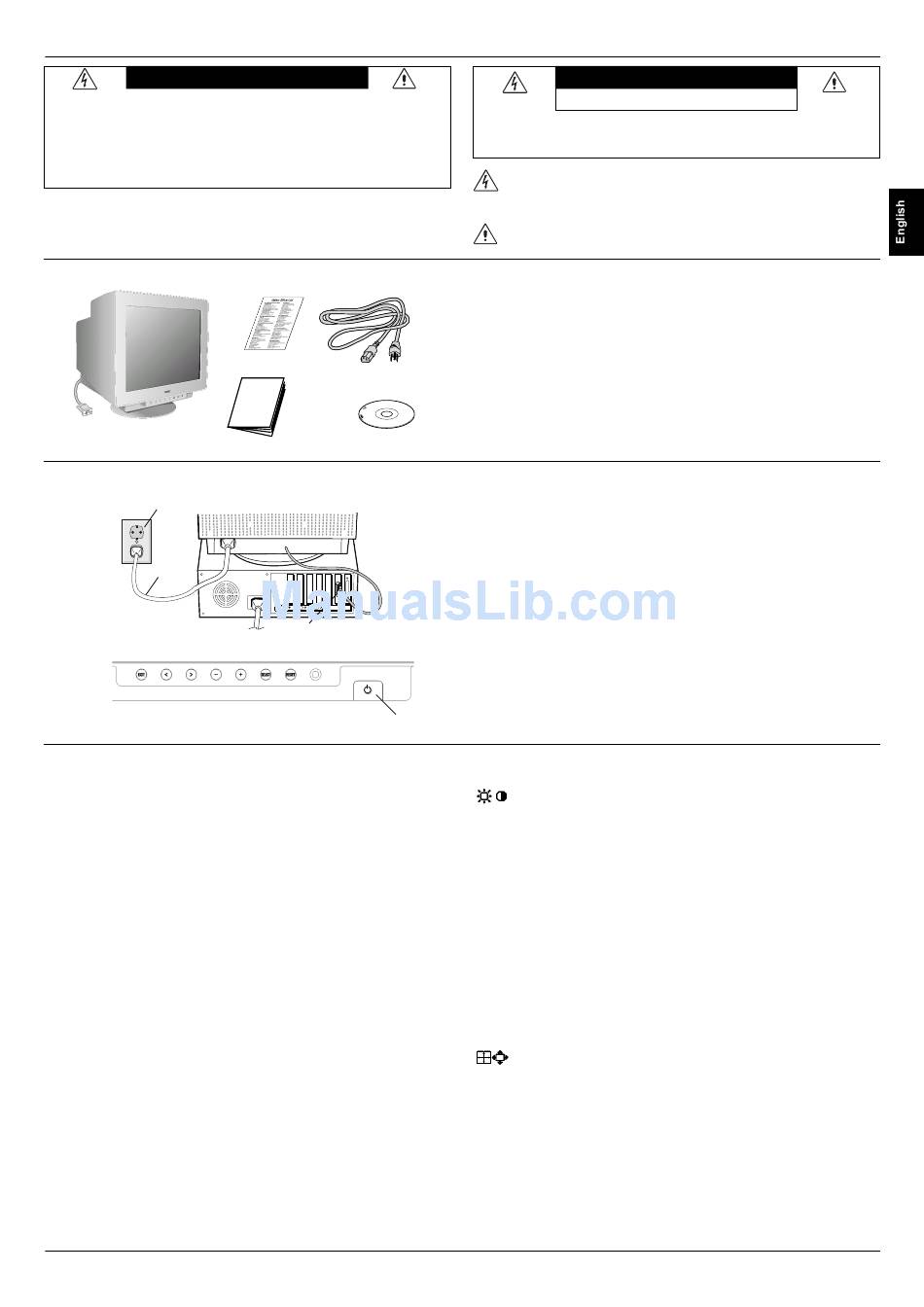

MultiSync FE monitor box* should contain the following:
• MultiSync FE Monitor with tilt/swivel base
• Power cord
• Captive Signal Cable
• User 's manual
• CD ROM (includes complete User's Manual in PDF format)
* Remember to save your original box and packing material to
transport or ship the monitor.
To attach the MultiSync FE monitor to your system,
follow these instructions:
1. Turn off the power to your computer and MultiSync FE monitor.
2. If necessary, install the display card. For more information, refer
to the display card manual.
3. For PC: Connect the 15-pin mini D-SUB of the captive signal
cable to the connector for the display card in your system
(Figure A). Tighten all screws.
4. Connect one end of the power cord to the MultiSync monitor
and the other end to the power outlet (Figure A).
5. Turn on the monitor (Figure B) and the computer.
6. This completes the installation.
NOTE:
If you need more information, please refer to complete
User's Manual in CD ROM.
Brightness/Contrast Controls
Brightness: Adjusts the overall image and background screen
brightness.
Contrast: Adjusts the image brightness in relation to the
background.
OSM
Degauss: Eliminates the buildup of stray magnetic fields which
alter the correct scan of the electron beams and affect the purity of
the screen colours, focus and convergence. When activated, your
screen image will jump and waver a bit as the screen is
demagnetized.
Caution: Please allow a minimum of 20 minutes to elapse
between uses of the Degauss Control.
Size and Position Controls
Left/Right: Moves the image horizontally (left or right).
Down/Up: Moves the image vertically (up or down).
Narrow/Wide: Decreases or increases the horizontal size of the
image.
Short/Tall: Decreases or increases the vertical size of the image.
CAUTION
3
