XYZ Printing da Vinci Jr. 1.0 Quick Manual

Hide thumbs Also See for da Vinci Jr. 1.0:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

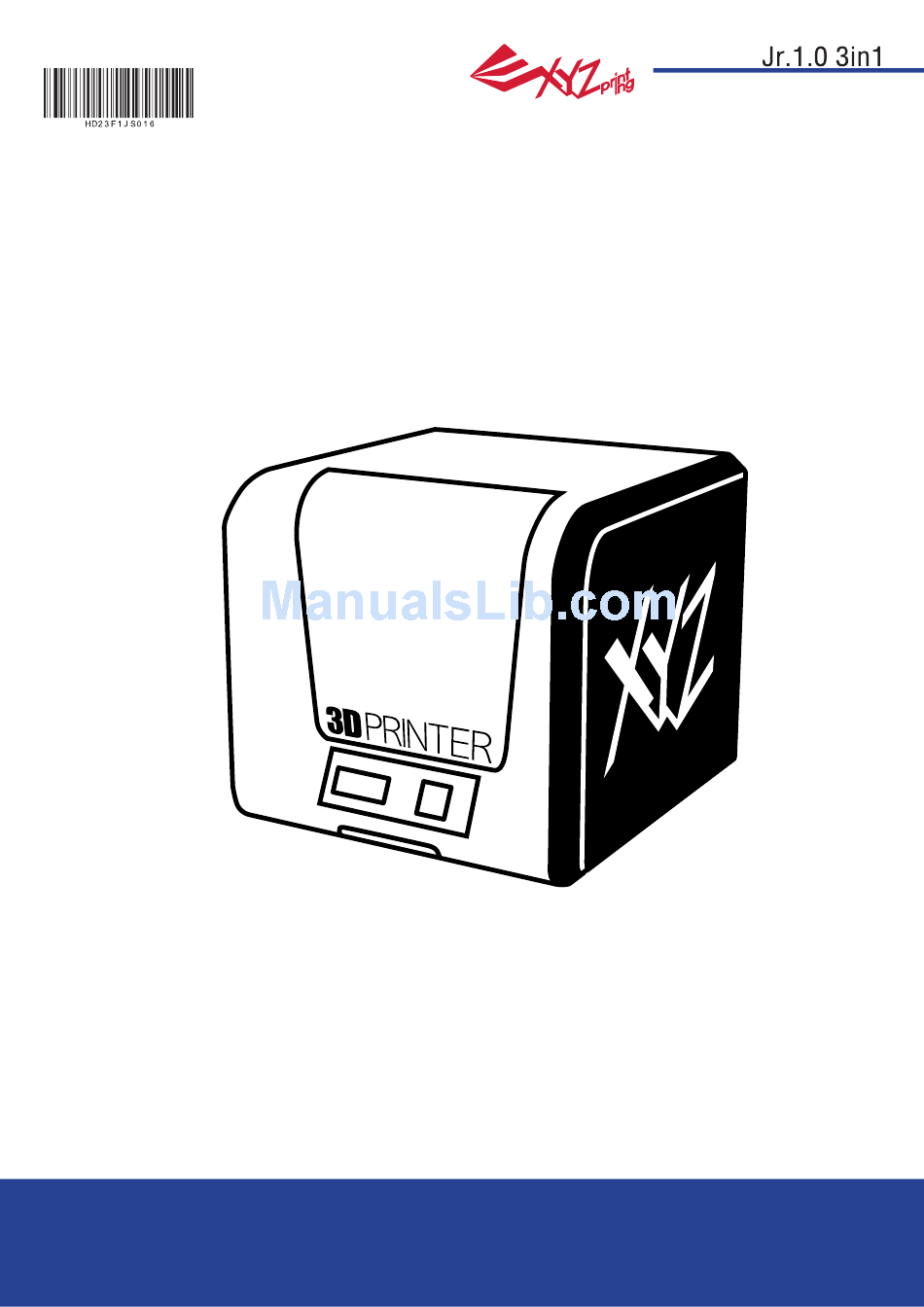

da Vinci
March 2016
da Vinci Jr. 1.0 3-in-1 3D Printer
da Vinci
Jr. 1.0 3in1
Quick Guide
HD23F1JS016
P 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the da Vinci Jr. 1.0 and is the answer not in the manual?

Questions and answers

Related Manuals for XYZ Printing da Vinci Jr. 1.0

Summary of Contents for XYZ Printing da Vinci Jr. 1.0

  • Page 1 Vinci March 2016 da Vinci Jr. 1.0 3-in-1 3D Printer da Vinci Jr. 1.0 3in1 Quick Guide HD23F1JS016...
  • Page 2 Vinci Jr. 1.0 3in1 3D print- er. To learn more about the latest news of the da Vinci Jr. 1.0 3in1 3D printer, please contact local dealers or visit the official website of XYZprinting: http://www.xyzprinting.com...

  • Page 3: Product Overview

    da Vinci March 2016 Product Overview A: Filament movement area B: Feed module C: Detector D: Extruder E: Filament F: Print bed G: SD card port (Storage format: FAT32) H: Control and display panel I: Front cover USB Port Power Connector Power Switch Accessory Checklist ．Scan Bed...

  • Page 4: Unpacking The Product

    da Vinci March 2016 For better scanning result,when placing the printer, avoid exposing the scanning modules Open the box and remove the Remove the plastic bag and to direct sunlight or lighting apparatus. accessories and cushions. the tapes. Please removal all fixed materials Remove all fixing tapes and the Be sure to remove the fixing cushion between print bed and...

  • Page 5: Installing The Accessories

    da Vinci March 2016 Note: Please follow these steps and ensure that the guide tube is properly installed before starting the "LOAD FILAMENT" function. Failure to install the guide tube may disrupt filament feed. Install the filament guide tube Direct the guide tube from the Ensure that the guide tube has been tightly Remove the extruder tube movement area out of the...

  • Page 6: Load Filament

    da Vinci March 2016 CHANGE SPOOL First retrieve filament spool to install the filament Take out and separate the filament spool spool axle ring. axle ring into its two components. Install the sensor chip. Please pay attention to the Insert the filament spool axle ring components position of the installation holes on the chip.

  • Page 7: Unload Filament

    da Vinci March 2016 LOAD FILAMENT Then load filament using the control panel on the printer… DA VINCI 　Jr. 3in1 UTILITIES CHANGE SPOOL UTILITIES CHANGE SPOOL LOAD FILAMENT SETTINGS HOME AXES UNLOAD FILAMENT INFO JOG MODE Select "UTILITIES" > "CHANGE SPOOL" > "LOAD FILAMENT". CHECK FILAMENT LOAD FILAMENT LOADING...
  • Page 8 da Vinci March 2016 HOME AXES “HOME AXES” moves the extruder to the lower left corner. To home axes: home axes are you sure Select “YES” to proceed. JOG MODE “JOG MODE” is used to manually move the extruder and the print bed. To move the extruder: jog mode x-axis ok...
  • Page 9 da Vinci March 2016 Install Scan Bed and Devices Calibration Original model Scanning result Scanning result before calibration after calibration When you find inaccurate scan results, please follow the steps for scanning devices calibration: Push the print bed to proper position then install the Scan Bed. In XYZscan,select Note: Please always press the button of Scan Bed before attach or remove it.
  • Page 10 da Vinci March 2016 CALIBRATE Calibration is enabled for this new extruder module. Please update printer firmware via XYZware before using the new extruder. 1. Active print bed calibration by selecting “UTILITIES”>”CALIBRATE”>”YES” on the screen. 2. Press the detection head on the right side of the print head according to the instruction of screen message, followed by pressing OK.
  • Page 11 da Vinci March 2016 Note: The machine can be turned off only when the cooling fan of the print head stops running after the print is completed. Turning off the power directly may clog the print head. References: Please refer to UTILITIES>CLEAN NOZZLE to remove the blocks out of the print head.
  • Page 12 da Vinci March 2016 Wireless printing This chapter introduces how to carry out the setting correctly and to operate the wireless printing function. To understand if your product is designed with wireless printing function, please refer to the table below. ●da Vinci 1.1 Plus ●da Vinci Jr 1.0 3in1 Pre-setting preparation...
  • Page 13 da Vinci March 2016 3. Please enter the printer name and then press “SCAN” to scroll down the menu for obtaining the exact Wireless Access Point related information. The description sample will use XYZprinting as the name of Wireless Access Point. After obtaining the desired information, enter the Public Key password and then press “Use Wi-Fi”...

  • Page 14: Specifications

    Vinci March 2016 da Vinci Jr. 1.0 3-in-1 3D Printer Model Name da Vinci Jr. 1.0 3-in-1 3D Printer Dimensions 16.54 x 16.93 x 14.96 inches （ 420 x 430 x 380 mm ） Weight 26.46 lbs (12kg) Display 2.6”...
