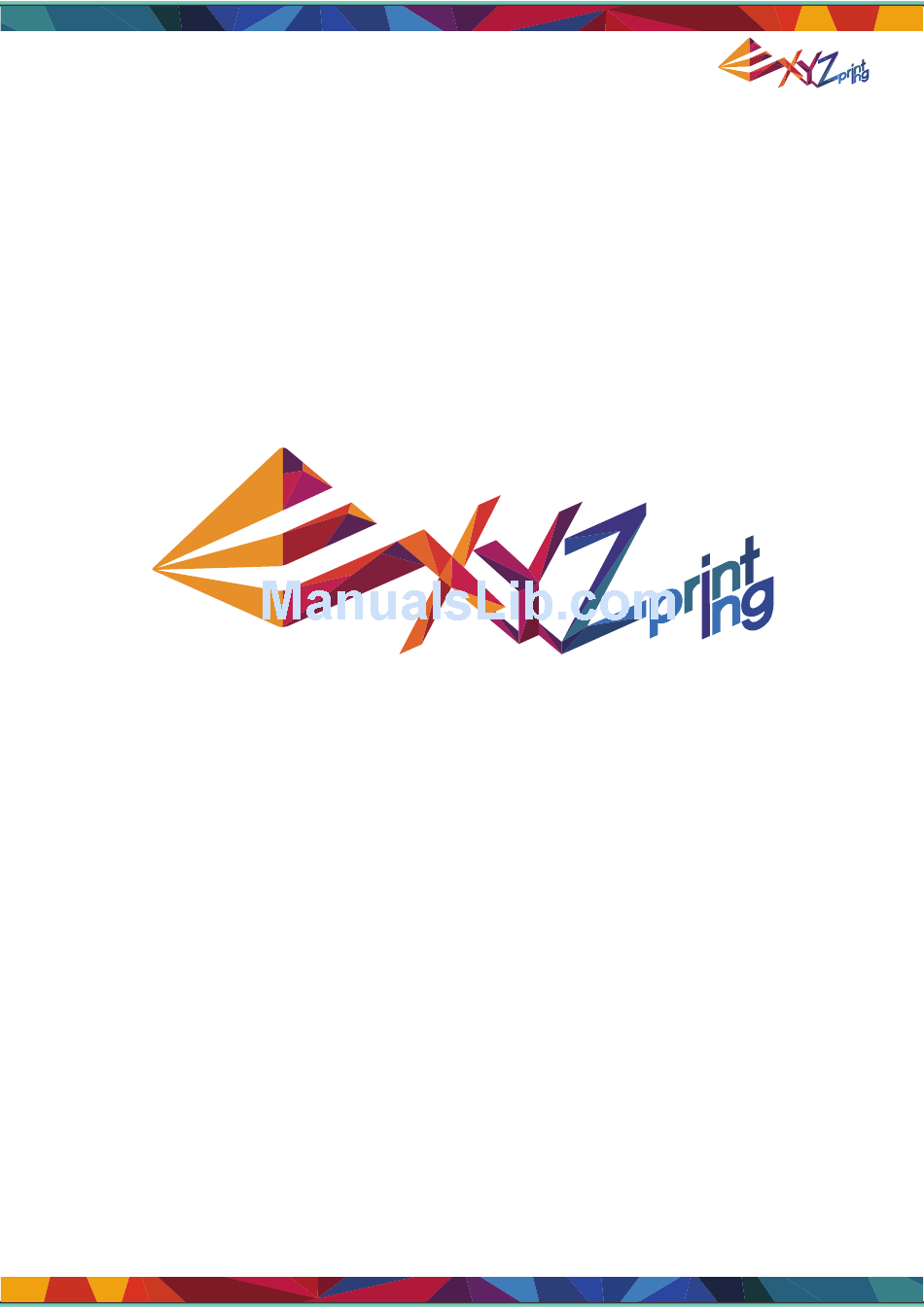

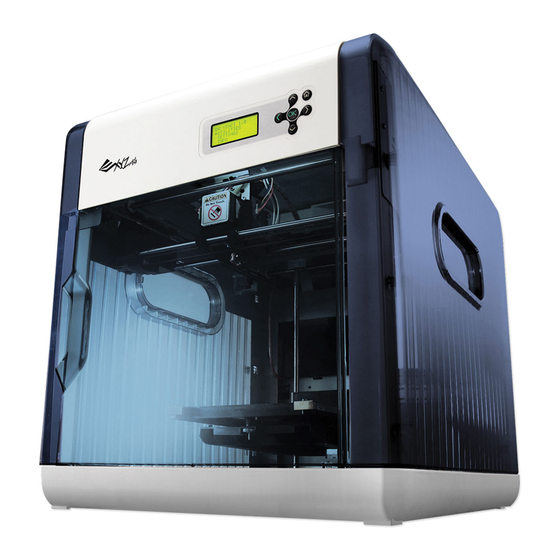

  • Page 1 Vinci 1.0 User Manual da Vinci 1.0 User Manual...
  • Page 2 Vinci 1.0 User Manual This manual provides detailed instructions on how to use your new da Vinci 1.0 3D Printer. The instructions are for your safety and to properly maintain your printer. Visit our website http://www. xyzprinting.com or contact your sales representative to get the latest available information on your da Vinci 1.0 3D Printer.

  • Page 3: Table Of Contents

    Vinci 1.0 User Manual CONTENT Chapter 1 Important Safety Instruction ................4 Chapter 2 Overview ......................6 Chapter 3 Installing and Set Up ....................8 Chapter 4 Connect the Cable ....................9 Chapter 5 Load the Filament ....................10 Chapter 6 Printer Functions ....................12 6-1 UTILITIES ........................13...

  • Page 4: Chapter 1 Important Safety Instruction

    Vinci 1.0 User Manual Chapter 1 Important Safety Instruction Please read this manual carefully before operating the printer. The following warnings and attention notices are a best effort attempt to cover all scenarios; unfortunately it is not possible to do so. In the case of performing maintenance procedures that are not described in this manual the burden of safety falls to the customer side.
  • Page 5 Vinci 1.0 User Manual...

  • Page 6: Chapter 2 Overview

    Vinci 1.0 User Manual Chapter 2 Overview This chapter describes the unpacking and set up of the printer. Before proceeding to this chapter, please make sure read the Chapter 1. Important Safety Instruction is acknowledged carefully. Note: Cable tie illustrated in step 4 in this section is used to fix the extruder during transportation.
  • Page 7 Vinci 1.0 User Manual Display Panel: information on printer status. Key Pad: use to operate functions in the printer. Extruder Module: to be used for printing 3D objects. Z-Axis Rod: to be used to provide print-enabled lifting heated bed module.

  • Page 8: Chapter 3 Installing And Set Up

    Vinci 1.0 User Manual Chapter 3 Install and Set Up Parts name and functions Front View Left View Top View Right View Rear View Bottom View...

  • Page 9: Chapter 4 Connect The Cable

    Vinci 1.0 User Manual Chapter 4 Connect the Cable <A. USB Port / B. Power Outlet> Warning ● Make sure to set the power switch to the “off ” position before inserting the power cord. ● Make sure the power cord is properly connected. Incorrect use may cause damage to the printer.

  • Page 10: Chapter 5 Load The Filament

    Vinci 1.0 User Manual Chapter 5 Load the Filament P 10...
  • Page 11 Vinci 1.0 User Manual Attention Shipping notice: ● Please unload the fi lament before printer shipping. ● Please use the regular carton and protection material. ● Do not put the printer in the carton while extruder or heated bed still warm and make sure both are completly cool down before packing.

  • Page 12: Chapter 6 Printer Functions

    Vinci 1.0 User Manual Chapter 6 Printer Functions Functions of Control Panel Key on the printer: Button Functions Direction Up Direction Down Back to pervious menu Forward to submenu OK; confi rm selection/settings Home Button, return to main menu...

  • Page 13: Utilities

    Vinci 1.0 User Manual 6-1 UTILITIES Function Description Loads/unloads fi lament CHANGE CARTRIDGE Moves the extruders and print bed to default "home" location HOME AXES JOG MODE Manually adjusts the movement of X/Y/Z Axis for printer maintenance BUILD SAMPLE...

  • Page 14: 6-1.1 Load Filament

    Vinci 1.0 User Manual 6-1.1 LOAD FILAMENT 1.Choose “CHANGE FILAMENT” > “LOAD FILAMENT”. 2.Please wait for extruder to reach working temperature. 3. Push the filament through the filament guide tube to the hole of the extruder and press “OK” button.

  • Page 15: Unload Filament

    Vinci 1.0 User Manual 6-1.2 UNLOAD FILAMENT 1.Choose “CHANGE FILAMENT” > “UNLOAD FILAMENT”. 2.Please wait for extruder to reach working temperature. 3 . P u l l t h e f i l a m e n t t h r o u g h t h e filament guide tube to the hole of the extruder and press “OK”...

  • Page 16: 6-1.2 Home Axes

    Vinci 1.0 User Manual 6-1.3 HOME AXES 1.Choose the HOME AXES function a n d p r e s s “ Ye s ” , e x t r u d e r a n d heated bed will move to proper positions.

  • Page 17: 6-1.3 Jog Mode

    Vinci 1.0 User Manual 6-1.4 JOG MODE 1.Choose the proper axis and press “OK” to next steps. Options: X AXIS / Y AXIS / Z AXIS 2.Select adjustment degree Use Upper / Down button to switch adjustment degree Use Left / Right Button to apply a default scale.

  • Page 18: 6-1.4 Build Sample

    Vinci 1.0 User Manual 6-1.5 BUILD SAMPLE 1.Choose printing sample. 2.Press “OK”, printer will be start to print. 3.Printing status will be refresh on the LCD panel BUILDING : the percetenge of printing fi nish. TIME PASS : elapsed build time.

  • Page 19: Settings

    Vinci 1.0 User Manual 6-2 SETTINGS Function Directions Default BUZZER Buzzer for alerting AUTO HEAT Keep the extruders and print bed at working temterature when printer is powered on LANGUAGE Set the language displayed on the panel. Available options: English & Japanese...

  • Page 20: 6-3.1 Statisics

    Vinci 1.0 User Manual 6-3.1 STATISICS ● LIFETIME : Amount printing time of the printer ● LAST TIME : Printing time of last task in this printer 6-3.2 SYSTEM VERSION Printer version information will be shown on the display panel 6-3.3 FILAMENT STATS...

  • Page 21: Monitor Mode

    Vinci 1.0 User Manual 6-4 MONITOR MODE You can get the temperatures of information via Monitor Mode function ● EXTRUDER : Proper working temperatures is 210 ℉ / 410 ℉ ● PLATFORM : Proper working temperatures is 90 ℉ / 194 ℉...

  • Page 22: Print Bed Adjustment

    Vinci 1.0 User Manual 6-5 Print Bed Adjustment This print bed has been factory calibrated before shipping. Recalibration is necessary if there are print issues when starting to print or the nozzle gets too close to the print bed. When in doubt, it is recommended to contact service center for more information.

  • Page 23: Chapter 7 Q&A

    Vinci 1.0 User Manual Chapter 7 Q&A Q1. Are there any suitable applications or software for this printer? A1. The packaged CD contains the XYZWare software. After installation it will use an available internet connection and look for the latest release to perform an automatic update.
  • Page 24 Vinci 1.0 User Manual P 24...
  • Page 25 Vinci 1.0 User Manual P 25...
  • Page 26 Vinci 1.0 User Manual P 26...

  • Page 27: Chapter 8 Term Of Service

    1. This product is guaranteed for specifi c period from the purchase date against any breakdown within the scope of proper and reasonable usage of their product as defi ned by XYZ printing. Presentation of warranty card with the product will ensure free service and repair of inherent faults in the product within the warranty period.
