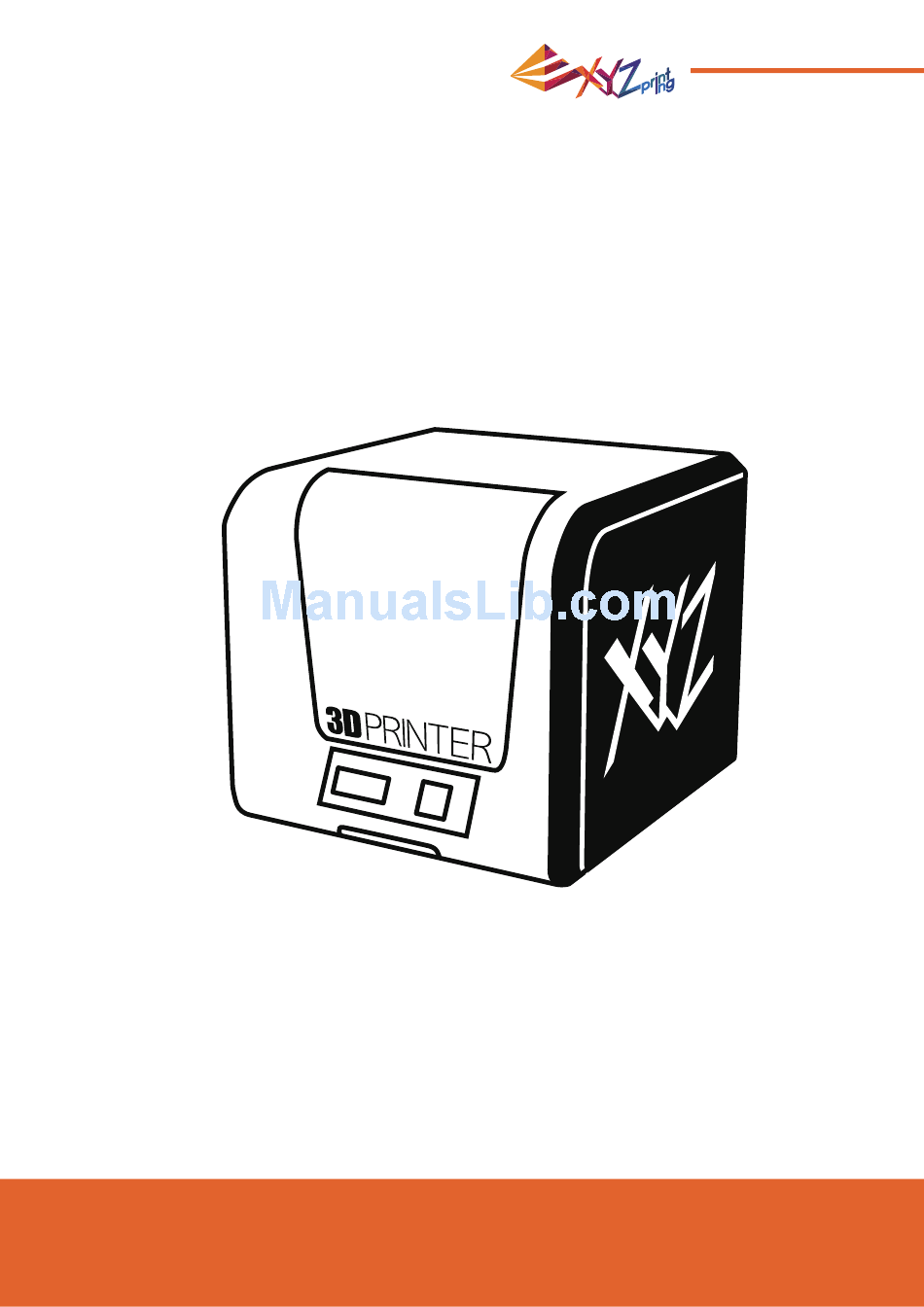

- Page 1 Vinci Jr.1.0 da Vinci Jr.1.0 2015 Ver. 1.6 June da Vinci Junior 1.0 3D Printer da Vinci Jr.1.0 User Manual...
- Page 2 Vinci Jr.1.0 2015 Ver. 1.6 June The purpose of this user manual is to help users understand and use the da Vinci Junior 1.0 3D printer correctly. It contains the operating instructions, maintenance information and application skills of the da Vinci Junior 1.0 3D printer.
- Page 3 Vinci Jr.1.0 2015 Ver. 1.6 June Product Overview A: Filament movement area B: Feed module C: Print head D: Filament E: Print bed F: SD card port (Storage format: FAT32) G: Control and display panel H: Front cover USB Port...
- Page 4 Vinci Jr.1.0 2015 Ver. 1.6 June Open the box and remove Remove the plastic bag Raise the paper cardboard slightly upwards t h e a c c e s s o r i e s a n d and the tapes.
- Page 5 Vinci Jr.1.0 2015 Ver. 1.6 June Note: Please follow these steps and ensure that the guide tube is properly installed before starting the "LOAD FILAMENT" function. Failure to install the guide tube may disrupt fi lament feed. ．Guide tude ．X axis...
- Page 6 Vinci Jr.1.0 2015 Ver. 1.6 June CHANGE SPOOL First retrieve fi lament spool to install the fi lament Take out and separate the fi lament spool spool axle ring. axle ring into its two components. Install the sensor chip. Please pay special attention to Insert the fi...
- Page 7 Vinci Jr.1.0 2015 Ver. 1.6 June LOAD FILAMENT Then load fi lament using the control panel on the printer… DA VINCI Jr. 1 UTILITIES CHANGE SPOOL UTILITIES CHANGE SPOOL LOAD FILAMENT SETTINGS HOME AXES UNLOAD FILAMENT INFO JOG MODE Select "UTILITIES"...
- Page 8 Vinci Jr.1.0 2015 Ver. 1.6 June The troubleshooting instruction may guide you to fi x the problem. If any error persists, please contact services. When an error occurs, please refer to the service code shown on the printer and/or in the software, and check the suggestions below for troubleshooting.
- Page 9 Vinci Jr.1.0 2015 Ver. 1.6 June da Vinci Jr.1.0 3D Printer Model Name da Vinci Junior 1.0 3D Printer 16.54 x 16.93 x 14.96 inches （ 420 x 430 x 380 mm ） Dimensions Weight 26.46 lbs (12kg) Display 2.6”...
- Page 10 Vinci Jr.1.0 2015 Ver. 1.6 June About the da Vinci junior series 3D printer The da Vinci junior series 3D printer (da Vinci Jr.) is a brand new product from XYZprinting that is dedicated to the 3D printer market. Its intricate and colorful exterior as well as its high resolution printing specifi cations are set to make it the new favorite for families and home hobbyists.
- Page 11 Vinci Jr.1.0 2015 Ver. 1.6 June Button instructions After switching on the printer's power, the user may use the display panel at the front of the printer to understand its status and usage data. The functional buttons on the right allow the user to perform the relevant operations.
- Page 12 Vinci Jr.1.0 2015 Ver. 1.6 June Home Menu Top Menu Sub Menu Page CHANGE SPOOL LOAD FILAMENT UNLOAD FILAMENT HOME AXES UTILITIES JOG MODE BUILD FROM CARD CLEAN NOZZLE Z OFFSET BUZZER LANGUAGE SETTINGS ENERGY SAVE RESTORE DEFAULT STATISTICS...
- Page 13 Vinci Jr.1.0 2015 Ver. 1.6 June HOME AXES “HOME AXES” moves the extruder to the lower left corner. To home axes: home axes are you sure Select “YES” to proceed. JOG MODE “JOG MODE” is used to manually move the extruder and the print bed.
- Page 14 Vinci Jr.1.0 2015 Ver. 1.6 June CLEAN NOZZLE Over time, carbon deposits or fi lament dust buildup in the nozzle may decrease its performance. It is advised to clean the nozzle after every 25 hours of printing. Also, if the print bed calibration shows “ERR” or if there is any residue on your prints, you may try to clean the nozzle.
- Page 15 Vinci Jr.1.0 2015 Ver. 1.6 June BUZZER When the buzzer is turned on, the printer will output an audible signal when a button is pressed, print job is finished, or issue is detected. Buzzer is turned on by default. To switch off the buzzer: buzzer Select “OFF”...
- Page 16 Vinci Jr.1.0 2015 Ver. 1.6 June STATISTICS In “STATISTICS”, you can check the accumulated print time and last print time. statistics lifetime 00006h last time 00h34m to return SYSTEM VERSION Firmware version is shown here. For stable printing performance, it is advised to keep the fi rmware up to date. To check for fi...
- Page 17 Vinci Jr.1.0 2015 Ver. 1.6 June Note: The machine can be turned off only when the cooling fan of the print head stops running after the print is completed. Turning off the power directly may clog the print head.
- Page 18 Vinci Jr.1.0 Other Information 2015 Ver. 1.6 June 1. This product is guaranteed against any break down for a specifi c period of time from date of purchase within the scope of proper and reasonable usage of their product as defi ned by XYZprinting Presentation of warranty card with the product will ensure free service and repair of inherent faults in the product within the warranty period.
- Page 19 Vinci Jr.1.0 2015 Ver. 1.6 June Warning ● Do not let children operate this device without adult supervision. Electric shock hazard. Moving pars can cause serious injury. ● Do not place the printer on an unbalanced or unstable surface. Printer may fall or tumble causing harm and/or injury.
