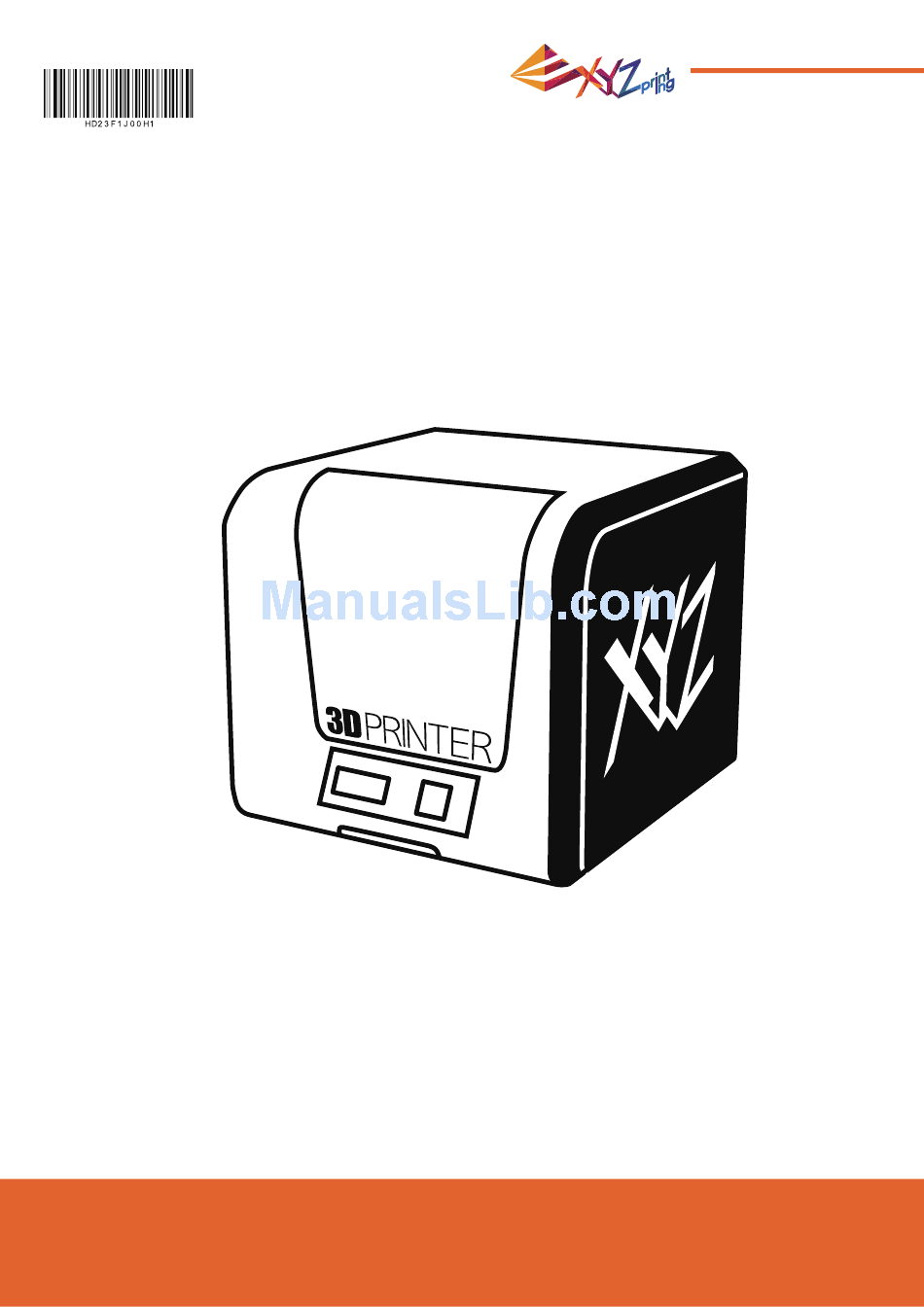

- Page 1 Vinci Jr.1.0 da Vinci Jr.1.0 2015 July da Vinci Junior 1.0 3D Printer da Vinci Jr.1.0 Quick Guide HD23F1J00H1...
- Page 2 Vinci Jr.1.0 2015 July Product Overview A: Filament movement area B: Feed module C: Print head D: Filament E: Extruder F: SD card port (Storage format: FAT32) G: Control and display panel H: Front cover USB Port Power Connector...
-
Page 3: Unpacking The Product
Vinci Jr.1.0 2015 July Open the box and remove Remove the plastic bag Raise the paper cardboard slightly upwards t h e a c c e s s o r i e s a n d and the tapes. -
Page 4: Installing The Accessories
Vinci Jr.1.0 2015 July Note: Please follow these steps and ensure that the guide tube is properly installed before starting the "LOAD FILAMENT" function. Failure to install the guide tube may disrupt fi lament feed. ．Guide tude ．X axis... -
Page 5: Load Filament
Vinci Jr.1.0 2015 July CHANGE SPOOL First retrieve fi lament spool to install the fi lament Take out and separate the fi lament spool spool axle ring. axle ring into its two components. Install the sensor chip. Please pay special attention to Insert the fi... -
Page 6: Unload Filament
Vinci Jr.1.0 2015 July LOAD FILAMENT Then load fi lament using the control panel on the printer… DA VINCI Jr. 1 UTILITIES CHANGE SPOOL UTILITIES CHANGE SPOOL LOAD FILAMENT SETTINGS HOME AXES UNLOAD FILAMENT INFO JOG MODE Select "UTILITIES" > "CHANGE SPOOL" > "LOAD FILAMENT". -
Page 7: Jog Mode
Vinci Jr.1.0 2015 July HOME AXES “HOME AXES” moves the extruder to the lower left corner. To home axes: home axes are you sure Select “YES” to proceed. JOG MODE “JOG MODE” is used to manually move the extruder and the print bed. -
Page 8: Clean Nozzle
Vinci Jr.1.0 2015 July CLEAN NOZZLE Over time, carbon deposits or fi lament dust buildup in the nozzle may decrease its performance. It is advised to clean the nozzle after every 25 hours of printing. Also, if the print bed calibration shows “ERR” or if there is any residue on your prints, you may try to clean the nozzle.
