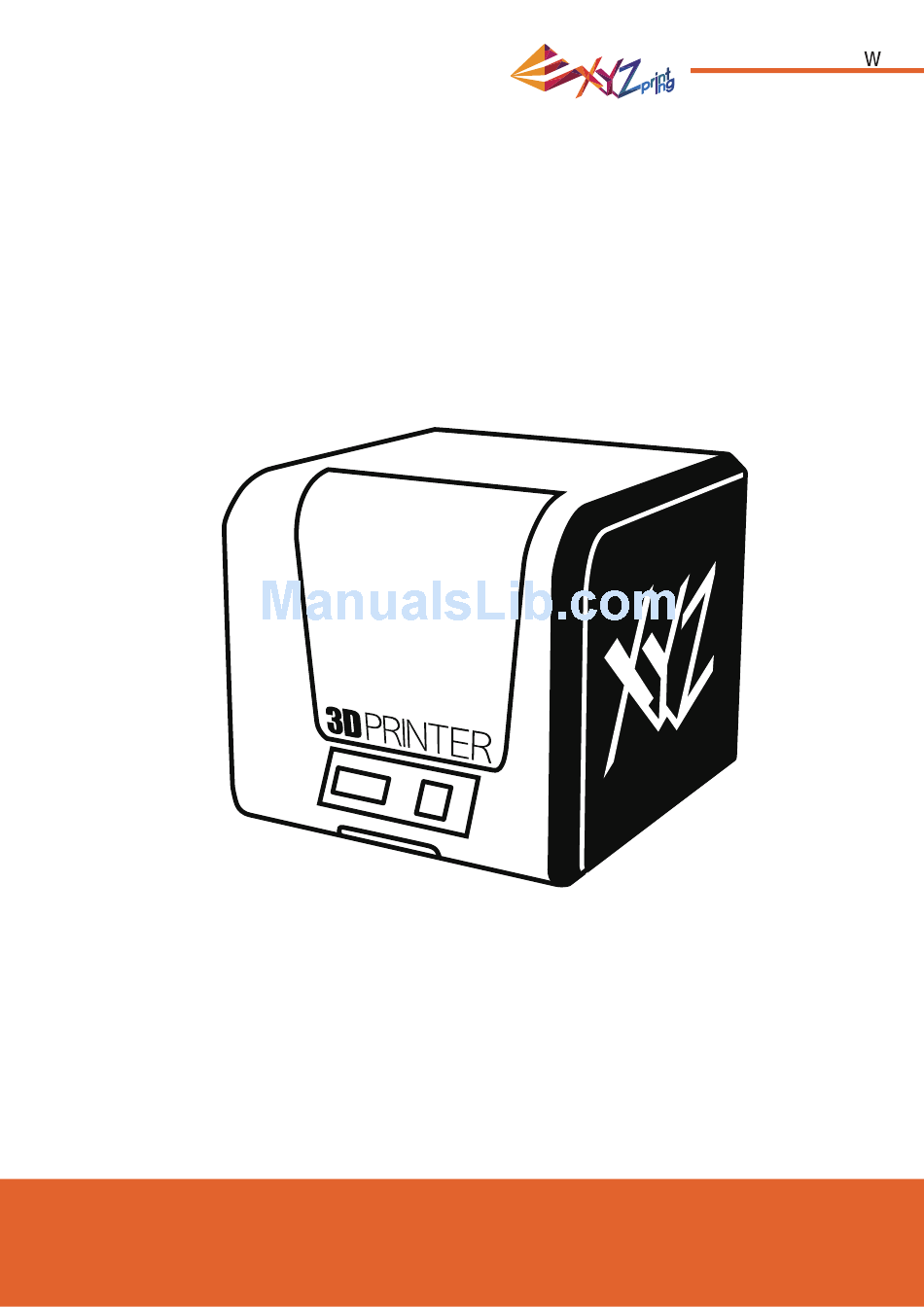

- Page 1 da Vinci Jr.1.0 da Vinci Jr.1.0 September 2015 Ver. 1.6 da Vinci Junior 1.0w 3D Printer da Vinci Jr.1.0w User Manual...
-
Page 2: Print History
da Vinci Jr.1.0 September 2015 Ver. 1.6 The purpose of this user manual is to help users understand and use the da Vinci Junior 1.0w 3D printer correctly. It contains the operating instructions, maintenance information and application skills of the da Vinci Junior 1.0w 3D print- er. -
Page 3: Product Overview
da Vinci Jr.1.0 September 2015 Ver. 1.6 Ver. 1 Product Overview view A: Filament movement area A: Filament m B: Feed module B: Feed modu C: Detector C: Detector D: Extruder D: Extruder E: Filament E: Filament F: Print bed F: Print bed G: SD card port G: SD card p... -
Page 4: Unpacking The Product
da Vinci Jr.1.0 September 2015 Ver. 1.6 Open the box and remove Remove the plastic bag Raise the paper cardboard slightly upwards the accessories and and the tapes. so that the paper cardboard is detached from cushions. the styrofoam slot at the bottom. Remove 2 foams at the back of the cardboard. -
Page 5: Load Filament
da Vinci Jr.1.0 September 2015 Ver. 1.6 Note: Please follow these steps and ensure that the guide tube is properly installed before starting the "LOAD FILAMENT" function. Failure to install the guide tube may disrupt fi lament feed. ．Guide tude ．X axis Before installing the guide tube, turn off the After the extruder has been adjusted, insert the guide... - Page 6 da Vinci Jr.1.0 September 2015 Ver. 1.6 CHANGE SPOOL First retrieve fi lament spool to install the fi lament Take out and separate the fi lament spool spool axle ring. axle ring into its two components. Install the sensor chip. Please pay special attention to Insert the fi...
-
Page 7: Load/Unload Filament
da Vinci Jr.1.0 September 2015 Ver. 1.6 LOAD FILAMENT Then load fi lament using the control panel on the printer… DA VINCI Jr. 1w UTILITIES CHANGE SPOOL UTILITIES CHANGE SPOOL LOAD FILAMENT SETTINGS HOME AXES UNLOAD FILAMENT INFO JOG MODE Select "UTILITIES"... -
Page 8: Service Code
da Vinci Jr.1.0 September 2015 Ver. 1.6 The troubleshooting instruction may guide you to fi x the problem. If any error persists, please contact customer service. When an error occurs, please refer to the service code shown on the printer and/or in the software, and check the suggestions below for troubleshooting. -
Page 9: Specifications
Vinci Jr.1.0 September 2015 Ver. 1.6 da Vinci Jr.1.0w 3D Printer Model Name da Vinci Junior 1.0w 3D Printer 16.54 x 16.93 x 14.96 inches （ 420 x 430 x 380 mm ） Dimensions 26.46 lbs (12kg) Weight 2.6” FSTN LCM... - Page 10 da Vinci Jr.1.0 September 2015 Ver. 1.6 About the da Vinci junior series 3D printer The da Vinci junior series 3D printer (da Vinci Jr.) is a brand new product from XYZprinting that is dedicated to the 3D printer market. Its intricate and colorful exterior as well as its high resolution printing specifi cations are set to make it the new favorite for families and home hobbyists.
- Page 11 da Vinci Jr.1.0 September 2015 Ver. 1.6 Button instructions After switching on the printer's power, the user may use the display panel at the front of the printer to understand its status and usage data. The functional buttons on the right allow the user to perform the relevant operations. Button Functions Direction Up...
- Page 12 da Vinci Jr.1.0 September 2015 Ver. 1.6 Home Menu Top Menu Sub Menu 頁碼 CHANGE SPOOL LOAD FILAMENT UNLOAD FILAMENT HOME AXES JOG MODE UTILITIES BUILD FROM CARD CALIBRATE CLEAN NOZZLE Z OFFSET BUZZER LANGUAGE ENERGY SAVE SETTINGS AUTO LEVEL RESTORE DEFAULT STATISTICS SYSTEM VERSION...
- Page 13 da Vinci Jr.1.0 September 2015 Ver. 1.6 HOME AXES “HOME AXES” moves the extruder to the lower left corner. To home axes: home axes are you sure Select “YES” to proceed. JOG MODE “JOG MODE” is used to manually move the extruder and the print bed. To move the extruder: jog mode x-axis ok...
- Page 14 da Vinci Jr.1.0 September 2015 Ver. 1.6 CALIBRATE To ensure printing quality, please update printer firmware to the latest version. With latest printer firmware, you may calibrate the print bed in case of low quality printing. 1. Active print bed calibration by selecting “UTILITIES”>”CALIBRATE”>”YES” on the screen. 2.
-
Page 15: Clean Nozzle
da Vinci Jr.1.0 September 2015 Ver. 1.6 CLEAN NOZZLE Over time, carbon deposits or fi lament dust buildup in the nozzle may decrease its performance. It is advised to clean the nozzle after every 25 hours of printing. Also, if the print bed calibration shows “ERR” or if there is any residue on your prints, you may try to clean the nozzle. To clean the nozzle: CLEAN NOZZLE CLEAN NOZZLE... - Page 16 da Vinci Jr.1.0 September 2015 Ver. 1.6 BUZZER When the buzzer is turned on, the printer will output an audible signal when a button is pressed, print job is finished, or issue is detected. Buzzer is turned on by default. To switch off the buzzer: buzzer Select “OFF”...
- Page 17 da Vinci Jr.1.0 September 2015 Ver. 1.6 STATISTICS In “STATISTICS”, you can check the accumulated print time and last print time. statistics lifetime 00006h last time 00h34m to return SYSTEM VERSION Firmware version is shown here. For stable printing performance, it is advised to keep the fi rmware up to date. To check for fi...
-
Page 18: Standard Cleaning
da Vinci Jr.1.0 September 2015 Ver. 1.6 Note: The machine can be turned off only when the cooling fan of the print head stops running after the print is com- pleted. Turning off the power directly may clog the print head. References: Please refer to CLEAN NOZZLE to remove the blocks out of the... -
Page 19: Start The Setting
da Vinci Jr.1.0 September 2015 Ver. 1.6 Note: Turn off the 3D printer only after the print job is complete and the print head cooling fan stops running. Don't turn off the power directly. Otherwise, the print head may be clogged. References: Please refer to the description of CLEAN NOZZLE function for removing... - Page 20 da Vinci Jr.1.0 September 2015 Ver. 1.6 3. Please enter the printer name and then press “SCAN” to scroll down the menu for obtaining the exact Wireless Access Point related information. The description sample will use XYZprinting as the name of Wireless Access Point. After obtaining the desired information, enter the Public Key password and then press “Use Wi-Fi”...
-
Page 21: Term Of Service
1. This product is guaranteed for specifi c period from the purchase date against any breakdown within the scope of proper and reasonable usage of their product as defi ned by XYZ printing. Presentation of warranty card with the product will ensure free service and repair of inherent faults in the product within the warranty period. -
Page 22: Print From A Mobile Application
da Vinci Jr.1.0 September 2015 Ver. 1.6 1.The mobile device needs to support wireless printing. 2.Install XYZprinting App from Android or iOS system. User Category Information Gallery My Upload Printer About Main screen Upload the To remote Printer item and control information printable fi... - Page 23 da Vinci Jr.1.0 September 2015 Ver. 1.6 O p e n t h e P l a y S t o r e f r o m y o u r A n d r o i d Please register an account at XYZprinting offi cial browser or App store of iOS system to search website before logging in.
- Page 24 da Vinci Jr.1.0 September 2015 Ver. 1.6 Warning ● Do not let children operate this device without adult supervision. Electric shock hazard. Moving pars can cause serious injury. ● Do not place the printer on an unbalanced or unstable surface. Printer may fall or tumble causing harm and/or injury. Printer may fall or tumble causing harm and/or injury.
