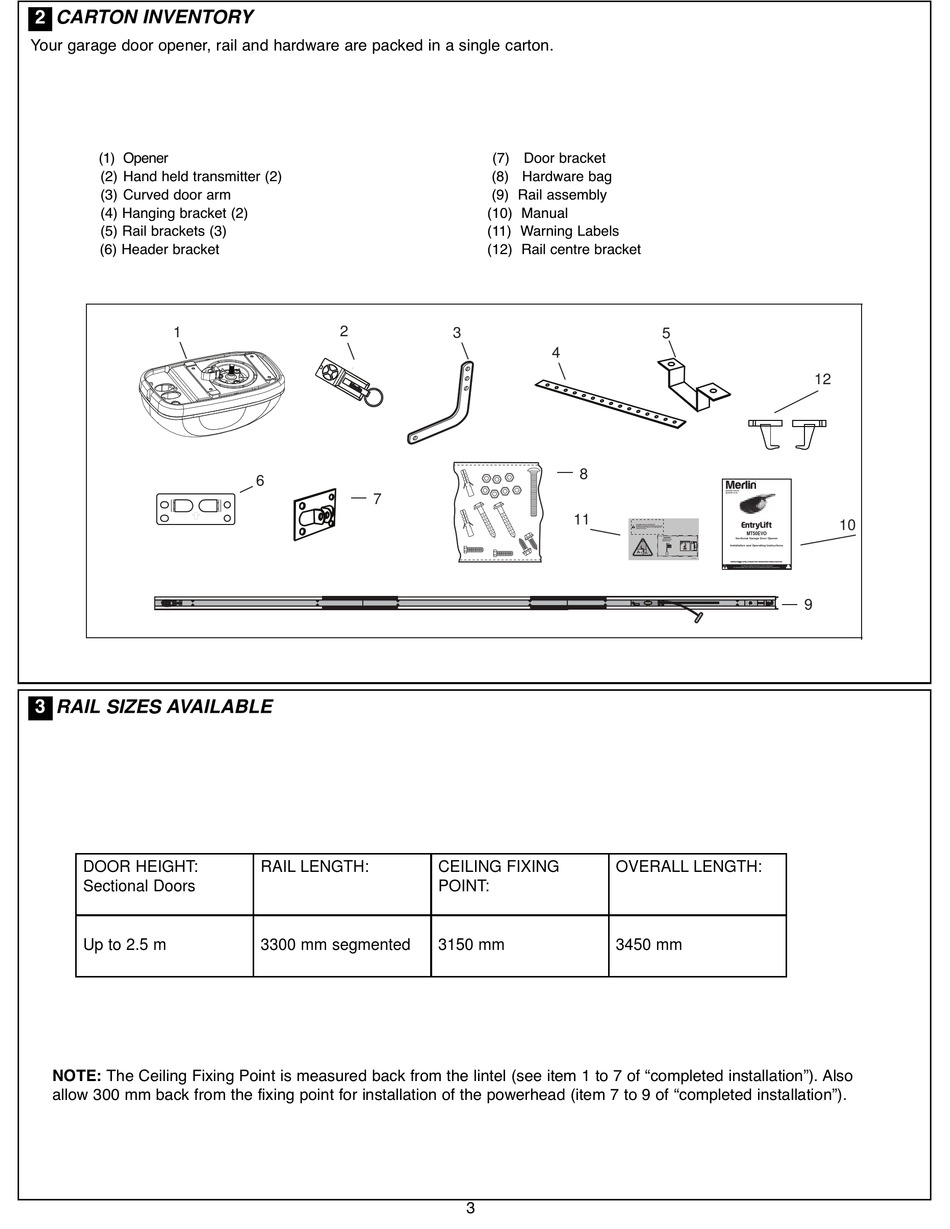

CARTON INVENTORY

Your garage door opener, rail and hardware are packed in a single carton.
(1) Opener
(2) Hand held transmitter (2)
(3) Curved door arm
(4) Hanging bracket (2)
(5) Rail brackets (3)
(6) Header bracket
1
3
RAIL SIZES AVAILABLE
DOOR HEIGHT:
Sectional Doors
Up to 2.5 m
NOTE: The Ceiling Fixing Point is measured back from the lintel (see item 1 to 7 of "completed installation"). Also
allow 300 mm back from the fixing point for installation of the powerhead (item 7 to 9 of "completed installation").
2
6
7
RAIL LENGTH:
3300 mm segmented
(7) Door bracket
(8) Hardware bag
(9) Rail assembly
(10) Manual
(11) Warning Labels
(12) Rail centre bracket
3
4
8
11
CEILING FIXING OVERALL LENGTH:
POINT:
3150 mm 3450 mm
3
5
12
gomerlin.com.au
gomerlin.co.nz
10
MT50EVO
Sectional Garage Door Opener
Installation and Operating Instructions
132A2890
O w n e rsC o p y :S A V ET H E S EIN S T R U C T IO N Sfo rfu tu rere fe re n c e
This manual contains IMPORTANT SAFETY information
DO NOT PROCEED WITH THE INSTALLATION BEFORE READING THOROUGHLY N2966 N2966 N2966 N2966
