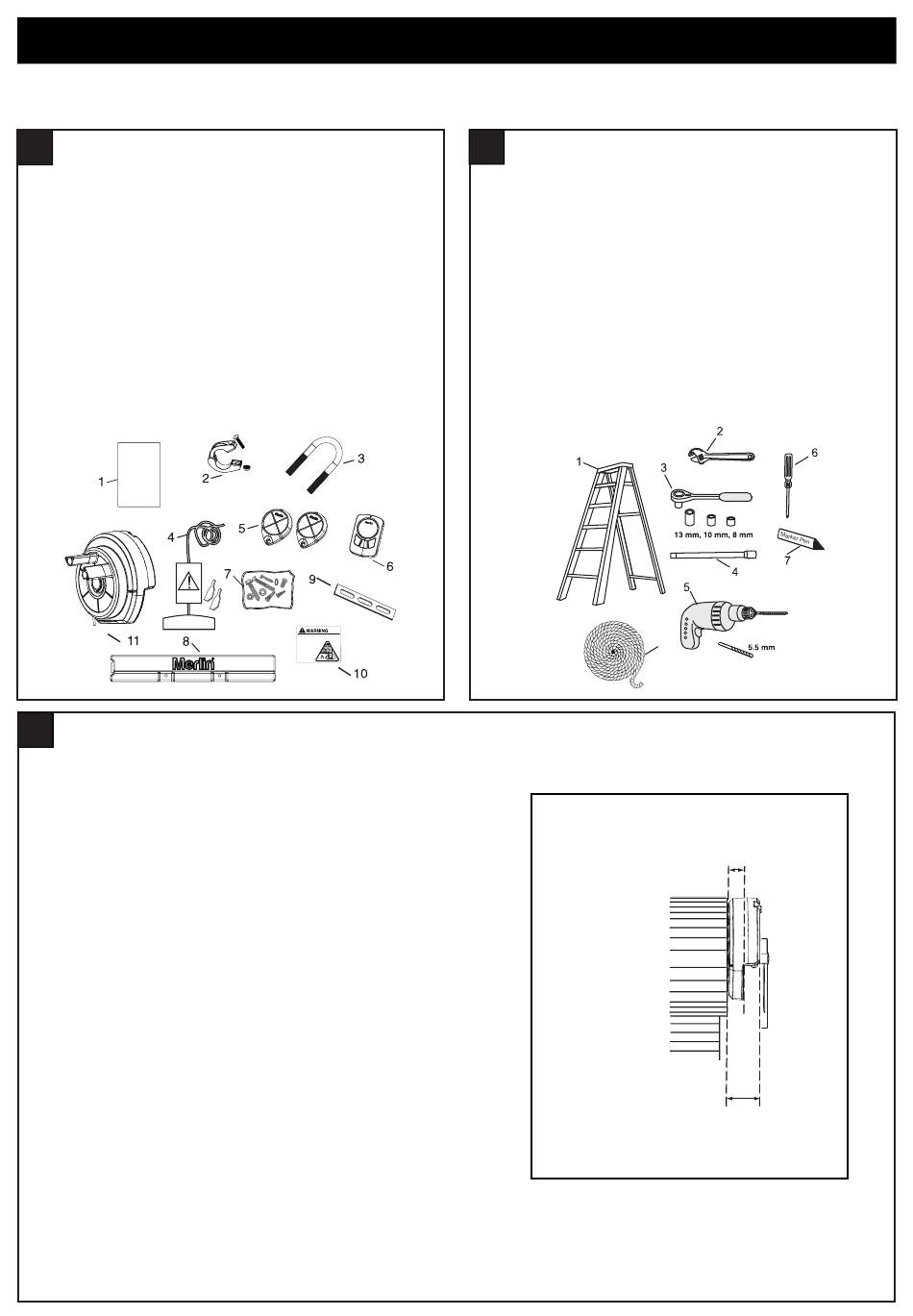

CARTON INVENTORY

1
1. Quik start guide
2. Stop collar
3. Clamp bracket
4. Release handle, cord, keys and risk of entrapment card
5. E970M four button remote control (2)
6. E148M four button wireless wall mount remote control (1)
7. Hardware bag
8. Weight bar
9. Clamp plate
10. Warning and risk of entrapment label
11. Opener
Quick
Reference
Guide

DOOR REQUIREMENTS

3
The WeatherDrive (MR555MYQ) is suitable for spring balanced Residential Rolling garage doors with:
• Maximum door height of 5.5 m.
• Maximum curtain area of 16.5 m
• Maximum door mass of 100 kg.
TM
*The Protector System (IR Beams) must be installed if the
force at the edge of the closing door exceeds 400N (40 kgf).
Door axle diameter must not exceed 35 mm.
Ensure that there is at least 45 mm from the edge of the curtain to the edge of the bracket. If the roller door drum wheel is on the
edge of the curtain or is a smaller diameter, additional clearance may be required.
Assemble the opener to the door axle and the existing door bracket using the U clamp assembly provided. Tighten to 25-28 Nm.
Full installation process is in section 13.
INTRODUCTION
Keep children away when the door is moving.
RISK OF ENTRAPMENT:
Repeat Safety Reverse Test
monthly. Door must reverse
on contact with a 40mm
obstacle placed on the floor.
Make necessary adjustments.
AUTOMATIC DRIVE:
Keep away from the area
of the door since it may
operate unexpectedly.
EMERGENCY RELEASE:
To release, pull down
firmly on the red handle.
132A3421
2*
.

TOOLS REQUIRED

2
1. Ladder
2. Adjustable wrench for U-bolts already installed on the door
3. 8 mm socket, 10 mm socket and 13 mm extended socket
and socket wrench
4. 300 mm socket extension (for minimum side-room
installations)
5. Drill and 5.5 mm drill bit
6. Philips-head screwdriver
7. Marker pen
8. Rope
9. Door stand (not shown)
Direct clamping
method
5
8
Minimum distance from
edge of curtain to edge of
door bracket 40 mm
95 mm
