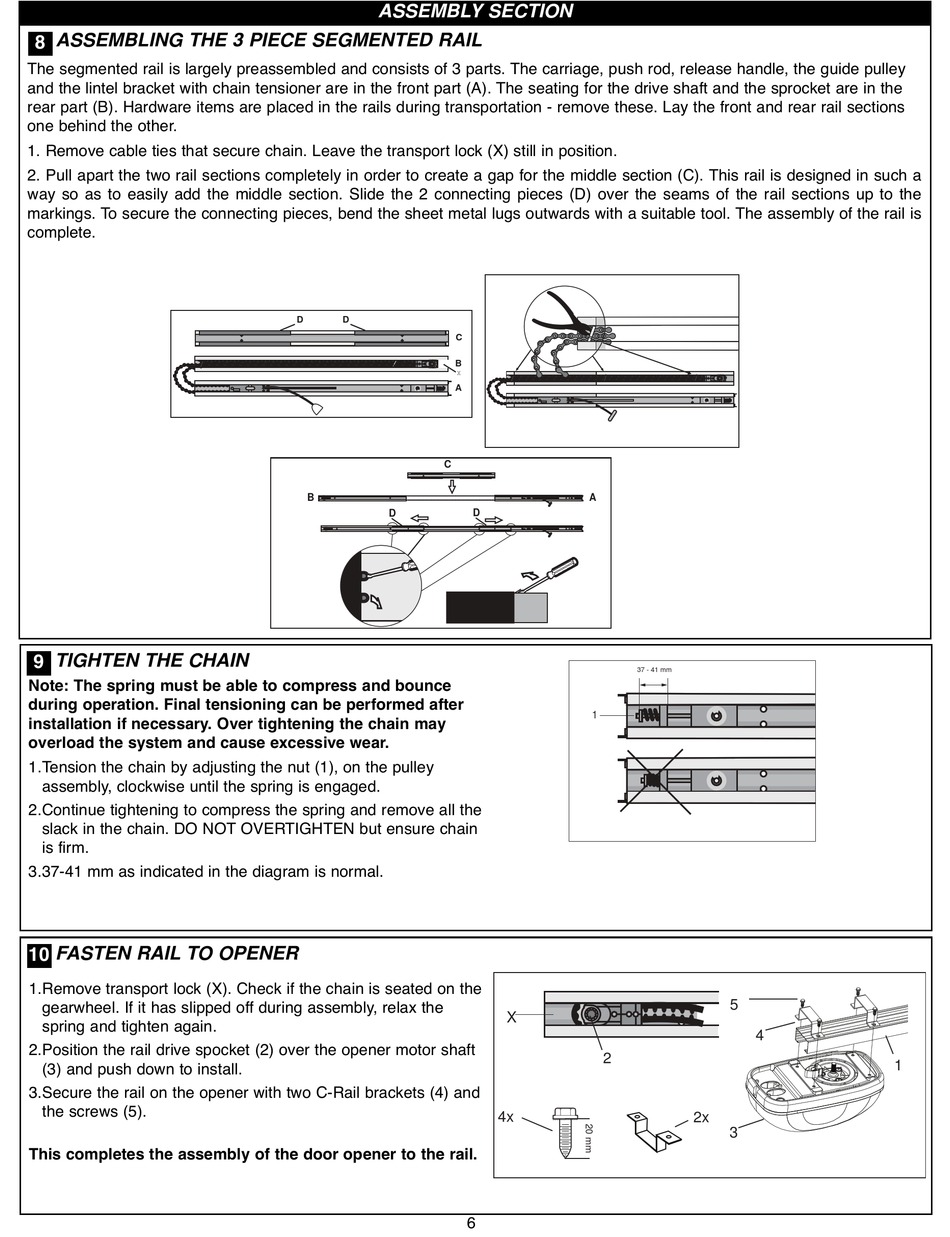

ASSEMBLING THE 3 PIECE SEGMENTED RAIL
The segmented rail is largely preassembled and consists of 3 parts. The carriage, push rod, release handle, the guide pulley
and the lintel bracket with chain tensioner are in the front part (A). The seating for the drive shaft and the sprocket are in the
rear part (B). Hardware items are placed in the rails during transportation - remove these. Lay the front and rear rail sections
one behind the other.
1. Remove cable ties that secure chain. Leave the transport lock (X) still in position.
2. Pull apart the two rail sections completely in order to create a gap for the middle section (C). This rail is designed in such a
way so as to easily add the middle section. Slide the 2 connecting pieces (D) over the seams of the rail sections up to the
markings. To secure the connecting pieces, bend the sheet metal lugs outwards with a suitable tool. The assembly of the rail is
complete.
9
Note: The spring must be able to compress and bounce
TIGHTEN THE CHAIN
during operation. Final tensioning can be performed after
installation if necessary. Over tightening the chain may
overload the system and cause excessive wear.
1.Tension the chain by adjusting the nut (1), on the pulley
assembly, clockwise until the spring is engaged.
2.Continue tightening to compress the spring and remove all the
slack in the chain. DO NOT OVERTIGHTEN but ensure chain
is firm.
3.37-41 mm as indicated in the diagram is normal.
10
FASTEN RAIL TO OPENER
1.Remove transport lock (X). Check if the chain is seated on the
gearwheel. If it has slipped off during assembly, relax the
spring and tighten again.
2.Position the rail drive spocket (2) over the opener motor shaft
(3) and push down to install.
3.Secure the rail on the opener with two C-Rail brackets (4) and
the screws (5).
This completes the assembly of the door opener to the rail.
