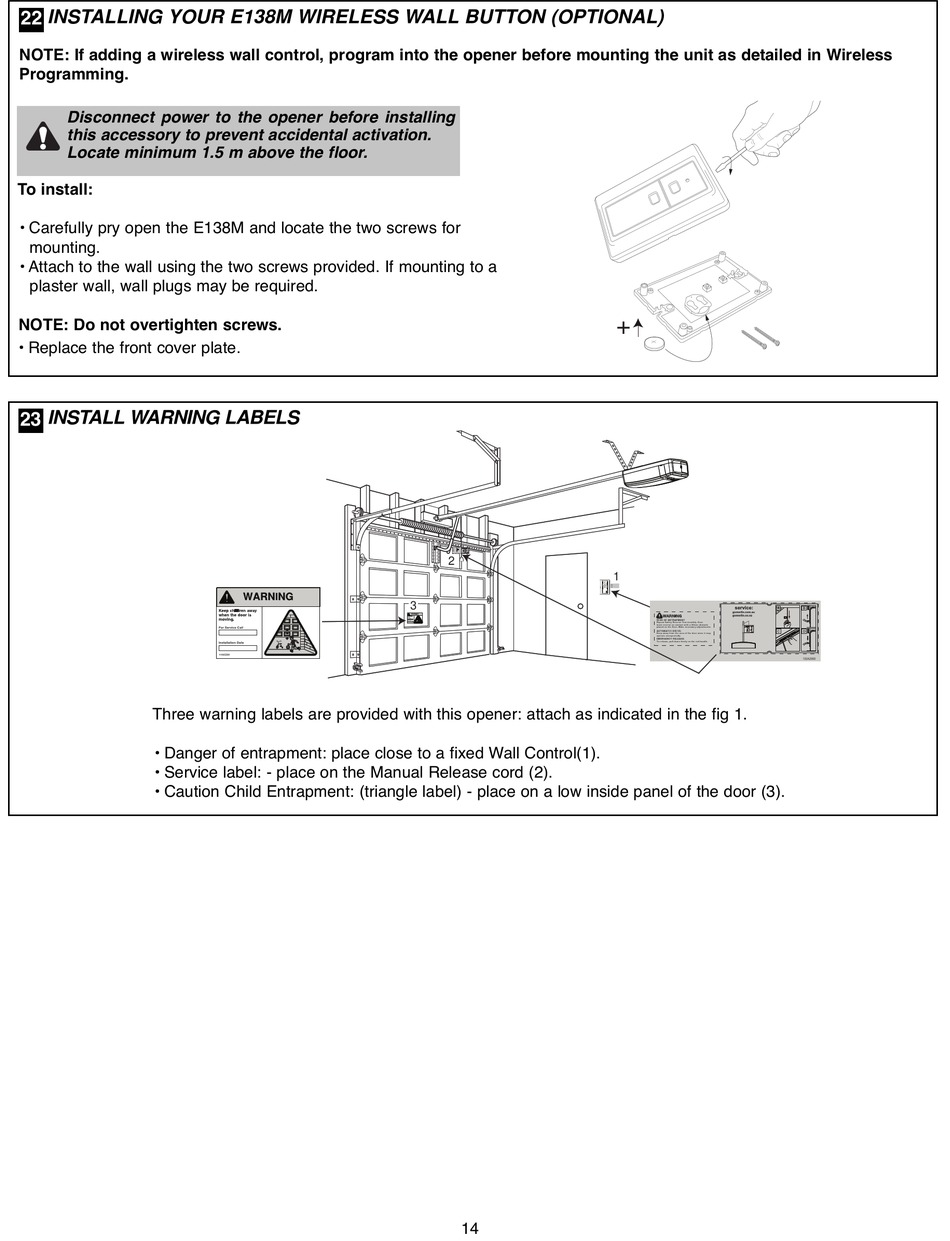

INSTALLING YOUR E138M WIRELESS WALL BUTTON (OPTIONAL)
NOTE: If adding a wireless wall control, program into the opener before mounting the unit as detailed in Wireless
Programming.
Disconnect power to the opener before installing
this accessory to prevent accidental activation.
Locate minimum 1.5 m above the floor.
To install:
• Carefully pry open the E138M and locate the two screws for
mounting.
• Attach to the wall using the two screws provided. If mounting to a
plaster wall, wall plugs may be required.
NOTE: Do not overtighten screws.
• Replace the front cover plate.
23

INSTALL WARNING LABELS

Three warning labels are provided with this opener: attach as indicated in the fig 1.
• Danger of entrapment: place close to a fixed Wall Control(1).
• Service label: - place on the Manual Release cord (2).
• Caution Child Entrapment: (triangle label) - place on a low inside panel of the door (3).
For Service Call
Installation Date
114A3361
A
B B
2
3
For Service Call
Installation Date
114A3361
14
1
RISK OF ENTRAPMENT
Repeat Safety Reverse Test monthly. Door
must reverse on contact with a 40mm obstacle
placed on the floor. Make necessary adjustments.
AUTOMATIC DRIVE:
Keep away from the area of the door since it may
operate unexpectedly.
EMERGENCY RELEASE:
To release, pull down firmly on the red handle.
132A2900
