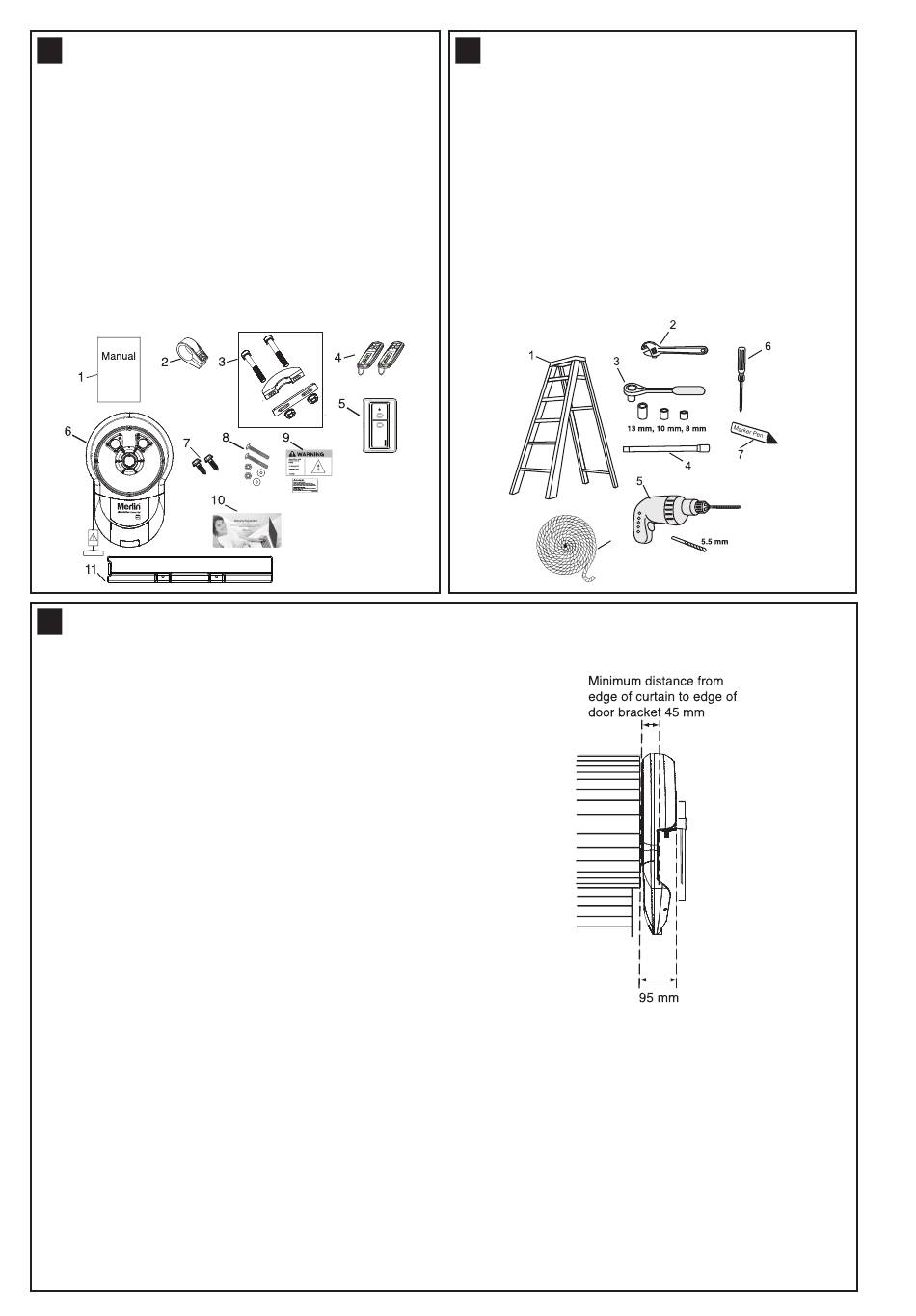

CARTON INVENTORY

1. Instruction manual (this document)
2. Stop collar
3. Clamp bracket, plates, washers (2) and nuts (2)
4. E960M Premium transmitter (2)
5. E138M wireless wall button (1)
6. Opener
7. Self tapping screws (2) (for pinning the door)
8. Weight bar screws (2), washers (2) and nuts (2)
9. Warning label and risk of entrapment label
10. Warranty registration card
11. Weight bar
3

DOOR REQUIREMENTS

The SilentDrive Essential (MR655MYQ) is suitable for spring
balanced Residential Rolling garage doors with:
• Maximum door height of 4.5 m.
• Maximum curtain area of 16.5 m
• Maximum door mass of 100 kg.
TM
*
The Protector System
the force at the edge of the closing door exceeds 400N
(40 kgf).
Door axle diameter must not exceed 35 mm.
Ensure that there is at least 45 mm from the edge of the curtain to the edge of the bracket. If the roller door
drum wheel is on the edge of the curtain or is a smaller diameter, additional clearance may be required.
Assemble the opener to the door axle and the existing door bracket using the U clamp assembly provided.
Tighten to 25-28 Nm. Full installation process is in section 13.
2 .
(IR Beams) must be installed if
2

TOOLS REQUIRED

1. Ladder
2. Adjustable wrench for U-bolts already installed
on the door
3. 8 mm socket, 10 mm socket and 13 mm extended
socket and socket wrench
4. 300 mm socket extension (for minimum side-room
installations)
5. Drill and 5.5 mm drill bit
6. Philips-head screwdriver
7. Marker pen
8. Rope
9. Door stand (not shown)
