Carton Inventory; Tools Required; Door Requirements - Merlin WeatherDrive MR555MYQ Installation And Operating Instructions Manual

1

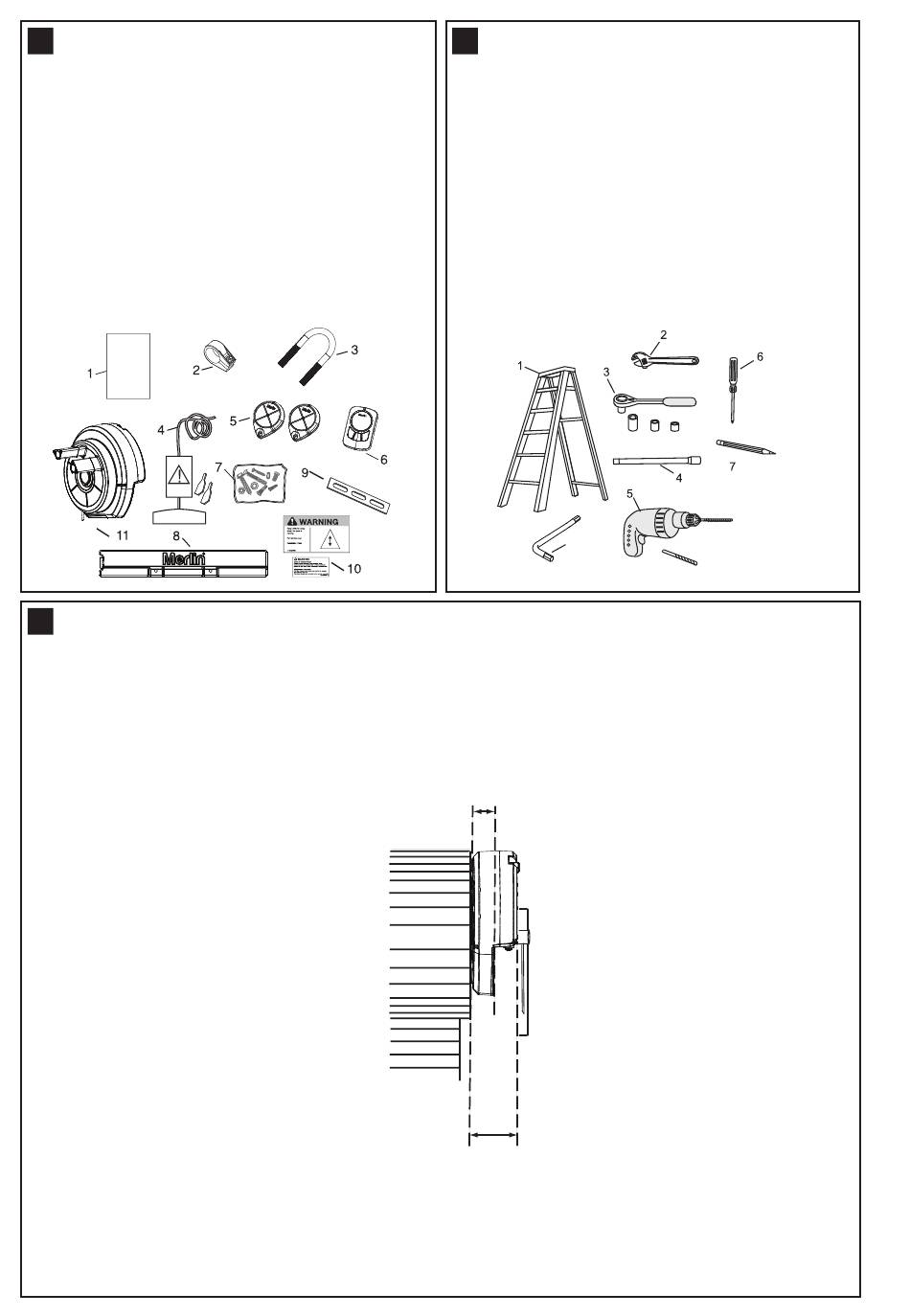

CARTON INVENTORY

1. Quick Reference Guide
2. Stop collar
3. Clamp bracket
4. Release handle, cord, keys and risk of entrapment
card
5. E970M four button remote control (2)
6. E148M four button wireless wall mount remote
control
7. Hardware bag
8. Weight bar
9. Clamp plate
10. Warning label and risk of entrapment label
11. Opener
Quick
Reference
Guide
3

DOOR REQUIREMENTS

The maximum allowable door height is 5.5 m with a maximum curtain area of 16.5 m²* . The door must be spring
balanced.
*
The Protector System™ (IR Beams) must be installed if the force at the edge of the closing door exceeds
400 N (40 kgf). Door axle diameter must not exceed 35 mm.
Ensure that there is at least 40 mm from the edge of the curtain to the edge of the bracket. If the roller door
drum is on the edge of the curtain or is a smaller diameter, additional clearance may be required.
Direct clamping
method
2

TOOLS REQUIRED

1. Ladder
2. Adjustable wrench for U-bolts already installed
on the door
3. 8 mm socket, 10 mm socket and 13 mm extended
socket and socket wrench
4. 300 mm socket extension (for minimum side-room
installations)
5. Drill and 5.5 mm drill bit
6. Philips-head screwdriver
7. Marker pen
8. 8 mm allen key
9. Door stand or similar device to safely support door
(not shown)
8
Minimum distance from
edge of curtain to edge of
door bracket 40 mm
95 mm
4
13 mm, 10 mm, 8 mm
5.5 mm
