Automatic Garage Door Lock Model ???
with 2-Conductor White and White/Black
Bell Wire with Connector
Introduction
NOTE: Older model 24V door locks
are incompatible

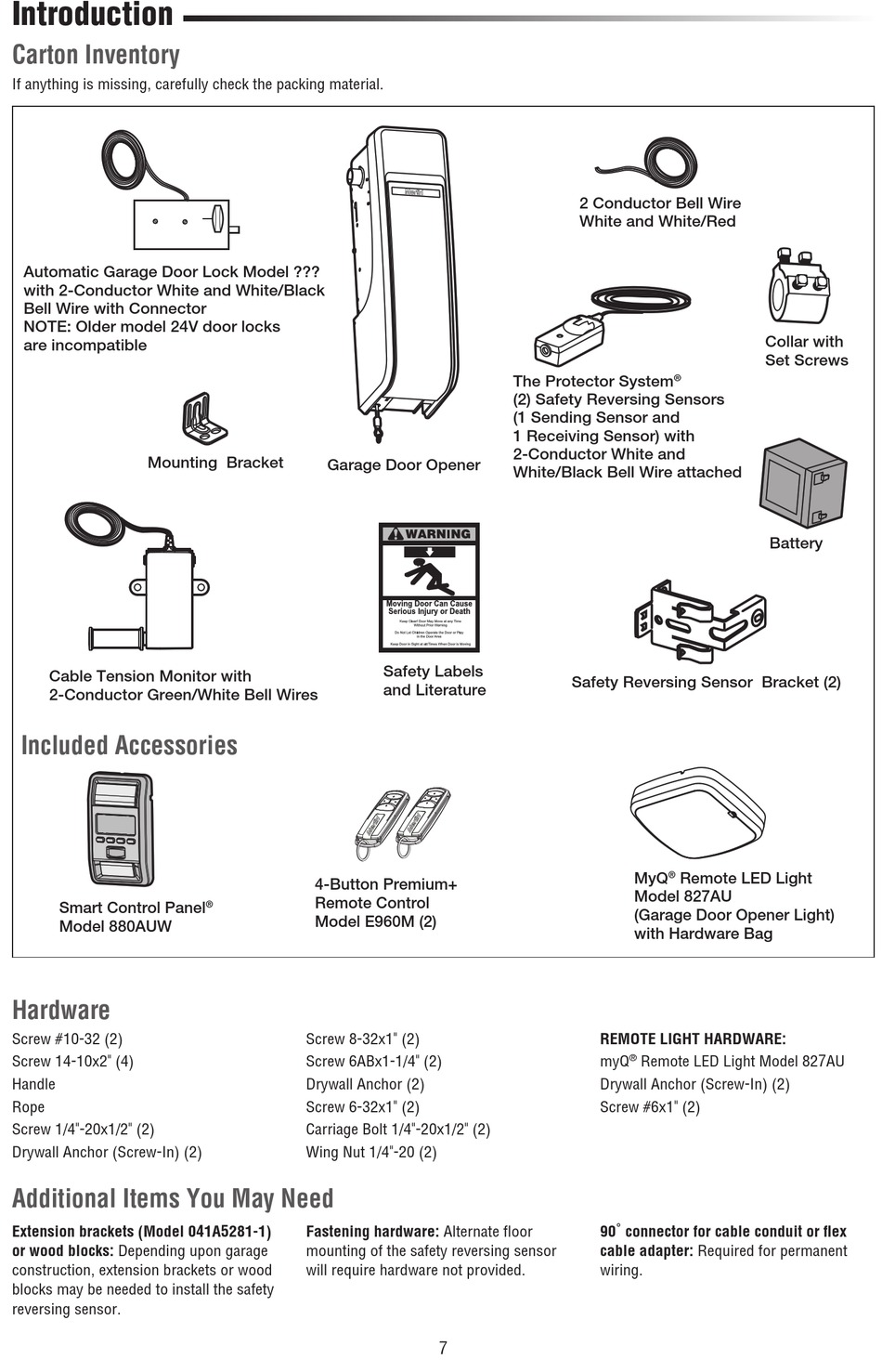

Carton Inventory

If anything is missing, carefully check the packing material.
Mounting Bracket
Automatic Garage Door Lock Model ???
with 2-Conductor White and White/Black
Bell Wire with Connector
NOTE: Older model 24V door locks
are incompatible
Cable Tension Monitor with
2-Conductor Green/White Bell Wires
Mounting Bracket
Cable Tension Monitor with
2-Conductor Green/White Bell Wires

Included Accessories

Smart Control Panel
Model 880AUW

Hardware

Screw #10-32 (2)
Screw 14-10x2" (4)
Handle
Rope
Screw 1/4"-20x1/2" (2)
Drywall Anchor (Screw-In) (2)

Additional Items You May Need

Smart Control Panel
Model 880AUW
Extension brackets (Model 041A5281-1)
or wood blocks: Depending upon garage
construction, extension brackets or wood
blocks may be needed to install the safety
reversing sensor.
Garage Door Opener
Garage Door Opener
4-Button Premium+
Remote Control
®
Model E960M (2)
Screw 8-32x1" (2)
Screw 6ABx1-1/4" (2)
Drywall Anchor (2)
Screw 6-32x1" (2)
Carriage Bolt 1/4"-20x1/2" (2)
Wing Nut 1/4"-20 (2)
4-Button Premium+
Remote Control
®
Model E960M (2)
Fastening hardware: Alternate floor
mounting of the safety reversing sensor
will require hardware not provided.
The Protector System
(2) Safety Reversing Sensors
(1 Sending Sensor and
1 Receiving Sensor) with
2-Conductor White and
White/Black Bell Wire attached
Safety Labels
The Protector System
and Literature
(2) Safety Reversing Sensors
(1 Sending Sensor and
1 Receiving Sensor) with
2-Conductor White and
White/Black Bell Wire attached
Safety Labels
and Literature
7
®
2 Conductor Bell Wire
White and White/Red
Safety Reversing Sensor Bracket (2)
®
Safety Reversing Sensor Bracket (2)
MyQ Remote LED Light
®
Model 827AU
(Garage Door Opener Light)
with Hardware Bag
REMOTE LIGHT HARDWARE:
myQ Remote LED Light Model 827AU
®
Drywall Anchor (Screw-In) (2)
Screw #6x1" (2)
MyQ Remote LED Light
®
Model 827AU
(Garage Door Opener Light)
with Hardware Bag
90˚ connector for cable conduit or flex
cable adapter: Required for permanent
wiring.
Collar with
Set Screws
Battery
Collar with
Set Screws
Battery
