Animo OptiFresh Bean User Manual page 38

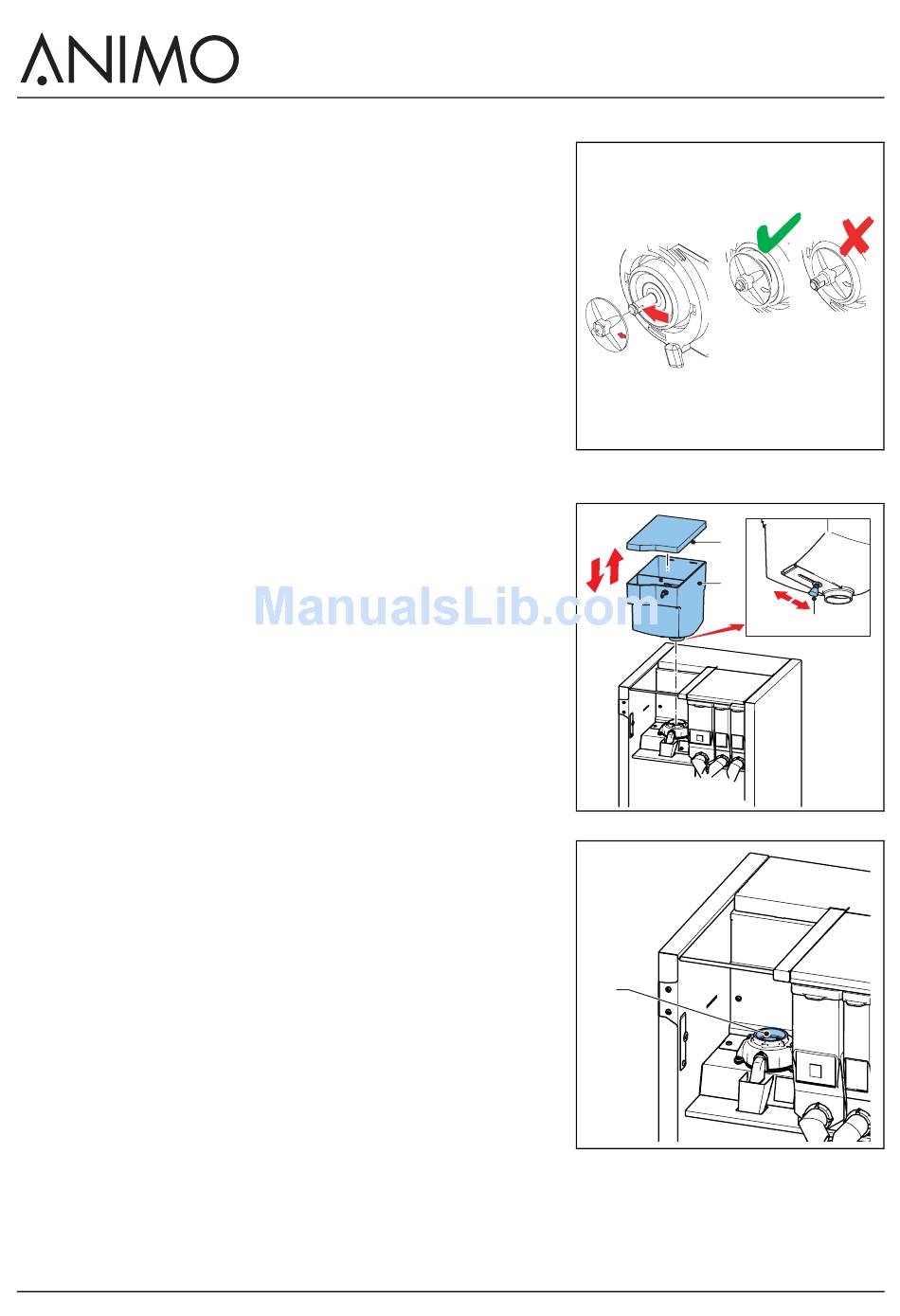

12 Replace the mounting ring and turn it clockwise to lock the
ring into place.
13 Replace the mixer fan. Make sure that the mixer fan locks
into place. The mixer fan must not touch the green mounting
ring.
14 Replace the mixer housing.
15 Turn the green mounting ring clockwise to lock the mixer into
place.
16 Replace the outlet hose.
5.2.11 Cleaning the bean canister
1 Close the supply (A) to the grinder.
2 Take out the bean canister (B).
3 Remove the cover (C).
4 Clean and dry the canister.
5 Clean the grinder (A) with the brush.
EN
A
81
OptiFresh Bean
C
B
A
2015/02 Rev. 1.0
