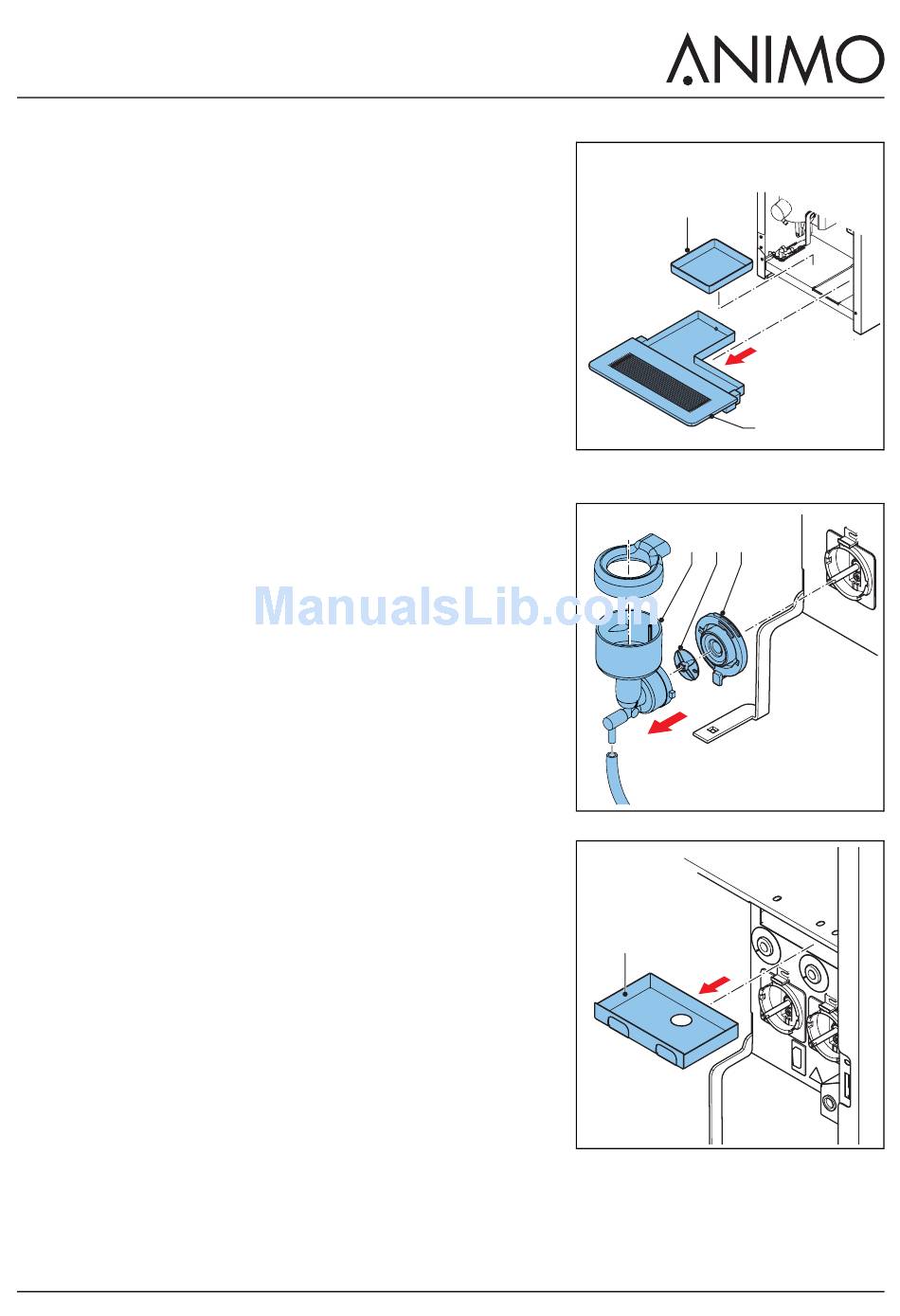

5.2.9 Cleaning/Emptying the drip trays
1 Remove the drip trays (A) under the machine.
2 If required, remove the drip tray hose.
3 Clean the drip trays.
4 Replace the drip tray hose.
5 Replace the drip trays.
5.2.10 Cleaning the mixer
1 Turn the canister's outlet upwards.
2 Remove the outlet hose from the mixer.
3 Turn the green mounting ring (C) counterclockwise.
4 Take off the mixer housing (B).
5 Pull off the mixer fan (A).
6 Turn the green mounting ring (C) further counterclockwise.
7 Remove the mounting ring.
8 Clean the parts.
9 Remove the dust tray (A).
10 Clean and dry the dust tray.
11 Replace the dust tray.
