Room controller units PCD7.L6xx,
Extension modules, Accessories
Document 26-859; Edition ENG07 │ 2015-06-04

Advertisement

Table of Contents
loading

Related Manuals for SBC PCD7.L630

Summary of Contents for SBC PCD7.L630

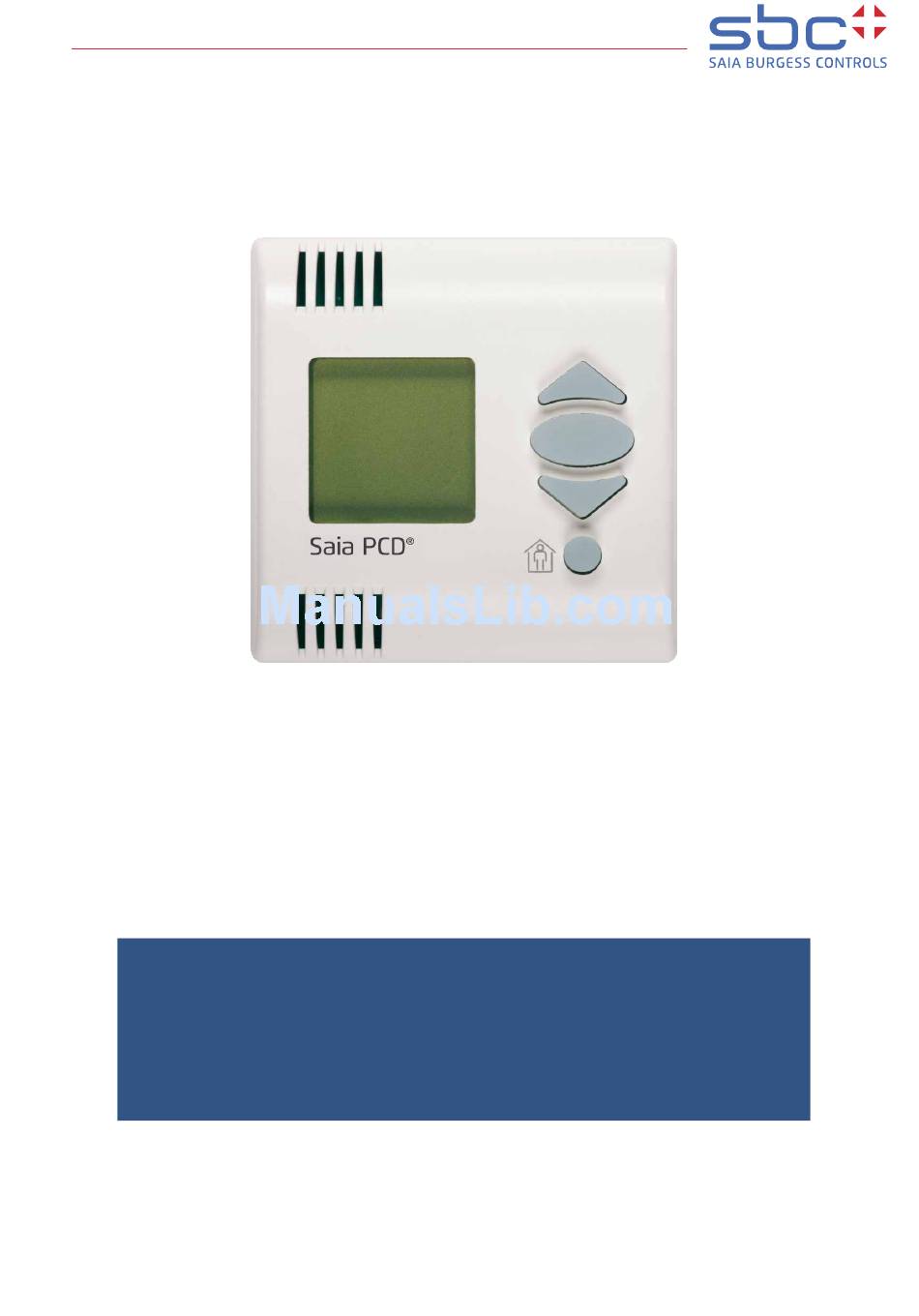

  • Page 1 Manual Room controller units PCD7.L6xx, Extension modules, Accessories Document 26-859; Edition ENG07 │ 2015-06-04...

  • Page 2: Table Of Contents

    About this manual ....................0-2 Brands and trademarks ..................0-2 Assembly instructions Analogue room control units 2.1 Techn. specifications of analogue room control units PCD7.L630 - .L632 ..2-2 2.1.1 Technical data for PCD7.L630 ................ 2-4 2.1.2 Technical data for PCD7.L631 ............... 2-5 2.1.3 Technical data for PCD7.L632 ................ 2-6 Digital room control units 3.1 Technical specifications of digital room control units PCD7.L640 - .L644 ..3-2 3.1.1 Technical data for PCD7.L640 ................ 3-4 3.1.2 Technical data for PCD7.L641 ................

  • Page 3: Document History

    Saia-Burgess Controls AG Content Document History Date Version Changes Remarks 2008-09-30 EN01 Translation of German version 2010-05-03 EN02 PCD7.L630 Connection with spring terminal block, not with RJ-11 2010-09-15 EN03 PCD7.L67x New types of connecting cables integrated 2013-02-15 EN04 PCD7.L670 New numbering of the strands PCD7.L672 2013-09-27 EN05 New logo and new company name 2013-11-13 EN06 PCD7.L666 don’t work with IR 2015-06-04 ENG07 Ch01 New chapter: Assembly instructions New phone numbers About this manual See the section in the appendix in relation to some of the terms, abbreviations and the references used in this manual.

  • Page 4: Assembly Instructions

    Saia-Burgess Controls AG Assembly instructions Assembly instructions ■ The room control units must only be installed and connected by an expert in accordance with the wiring diagram. Existing safety standards must also be observed. ■ The room control units can only be used to regulate the temperature in dry, closed rooms. The maximum permissible relative humidity is 90%, non- condensing. ■ Precise temperature measurement is subject to certain requirements as to the positioning of the temperature sensors. This applies both to the room control device itself and to the externally connected temperature sensor. ■ The device can be mounted directly on the wall or flush-mounted within a pattress box. Avoid direct exposure to sunlight or light from powerful lamps. Do not install next to heat sources such as heaters, refrigerators, lamps etc. Do not install next to windows and doors because of draughts. Do not located the control device/ compact room controller in the path of draughts from climate control or ventilation systems.
  • Page 5 Saia-Burgess Controls AG Assembly instructions Please ensure: ● that all wires are screwed down tight ● that the connecting plug is properly engaged ● that the ventilation slots are placed above and below (positioning) ● that the device is mounted horizontally. To prevent a premature oxidation and yellowness of the plastic enclosure of the room control unit, the following installation conditions has to be prevent (non-exhaustive list): ■...

  • Page 6: Analogue Room Control Units

    Saia-Burgess Controls AG Analogue room controller units Analogue room control units PCD7.L63x General technical specification - - - PCD7.L630 Room temperature sensor PCD7.L631 Room temperature sensor with set point setting PCD7.L632 Room temperature sensor with set point setting, presence sensor and LED Manual for PCD7.L6xx room operator units  │   D ocument 26-859  ENG07  │   2 015-06-04...

  • Page 7: Techn. Specifications Of Analogue Room Control Units Pcd7.L630 - .L632

    Saia-Burgess Controls AG Analogue room controller units Technical specifications 2.1 Techn. specifications of analogue room control units PCD7.L630 - .L632 RJ 11 PCD7.L671 Pin allocation PCD7.L630 - .L632 Terminal Description Signal S, GND Temperature sensor NTC 10 kΩ, Temperature sensor measurement range 0…40 °C. S, GND Floating sensor using the temperature sensor. Presence sensor 5V,P1,GND Potentiometer (10 kΩ, linear) for setting a config- Set point setting urable set point displacement. See description of Config FBox or registers (reg. 104) LED, GND LED to display Comfort mode. Comfort mode = 5 V, LED otherwise 0 V. (5 V, 2 mA max.) PCD7.L671 connecting cable - colour table...
  • Page 8 Saia-Burgess Controls AG Analogue room controller units Technical specifications Manual for PCD7.L6xx room operator units  │   D ocument 26-859  ENG07  │   2 015-06-04...

  • Page 9: Technical Data For Pcd7.L630

    Saia-Burgess Controls AG Analogue room controller units Technical data 2.1.1 Technical data for PCD7.L630 Room temperature sensor Pin allocation for PCD7.L630 Terminal Description Signal S, GND Temperature sensor NTC 10 kΩ, Temperature sensor measurement range 0…40 °C. Pin allocation for connecting cable PCD7.L671 Description Colour Terminal Temperature/presence sensor White Ground for the temperature sensor...

  • Page 10: Technical Data For Pcd7.L631

    Colour Terminal Temperature sensor White Ground Black GND Set point potentiometer Not used Green Set point potentiometer power supply Yellow 5 V LED with 1.5 kΩ series resistance. (max. 2 mA) Blue LED Note All information points can be read by the SBC S-Bus via a Room FBox or via regis- ters independently of the application. The use of an analogue room control unit must be indicated in the configuration. See description of Config FBox or registers. Manual for PCD7.L6xx room operator units  │   D ocument 26-859  ENG07  │   2 015-06-04...

  • Page 11: Technical Data For Pcd7.L632

    Temperature sensor White Ground Black GND Set point potentiometer Not used Green Set point potentiometer power supply Yellow 5 V Presence sensor illumination Blue LED Temperature/presence sensor White Note All information points can be read by the SBC S-Bus via a Room FBox or via regis- ters independently of the application. The use of an analogue room control unit must be indicated in the configuration. See description of Config FBox or registers. Manual for PCD7.L6xx room operator units  │   D ocument 26-859  ENG07  │   2 015-06-04...

  • Page 12: Digital Room Control Units

    Saia-Burgess Controls AG Digital room controller units Digital room control units PCD7.L64x General technical specification - - - PCD7.L640 Room temperature sensor with set point setting PCD7.L641 Room temperature sensor with set point setting, presence sensor and LED PCD7.L642 Room temperature sensor with set point setting, presence sensor, LED and fan control PCD7.L643 Room temperature sensor with function keys and LCD display for HeaVAC functions. PCD7.L644 Room temperature sensor with function keys and LCD display for HeaVAC functions, and light and shade functions - - - PCD7.L660 Mobile room control unit with infrared interface, temperature sensor, function keys and display PCD7.L661 infrared receiver PCD7.L662 Mobile room control unit with infrared interface, temperature sensor, function keys and display PCD7.L663...

  • Page 13: Technical Specifications Of Digital Room Control Units Pcd7.L640 - .L644

    Saia-Burgess Controls AG Digital room controller units 3.1 Technical specifications of digital room control units PCD7.L640 - .L644 PCD7.L642 Controller RJ 9 PCD7.L670-xx PCD7.L643 HEVAC function Display Controller RJ 9 PCD7.L670-xx Pin allocation for PCD7.L640 - .L644 Interface Terminal Description Serial bus The connection to the room controller is done with the cable PCD7.L670-xx directly on the controller or the use of expansion modules for lighting and shading on the last module. The power cable, PCD7.L670-xx, is prefabricated on both sides and has a length of either 10, 30 or 50 m. The maximum length between the room controller and the control room control unit must not exceed 50 meters. Manual for PCD7.L6xx room operator units ...
  • Page 14 Saia-Burgess Controls AG Digital room controller units Functions for PCD7.L640 - .L644 Function Description Sensor Room temperature sensor. Measurement range 0…40 °C. Set point setting To set a configurable set point displacement. Depend- ing on the room control unit, the setting is entered with a potentiometer or via the integrated display with HeaVAC function. The base set point held in the room controller can be increased or decreased in up to 6 steps. The step size is stored in the room controller configuration. See descrip- tion of Config FBox or registers (reg. 104). When the Plus, Set and Minus keys are pressed together, the current set point is displayed for approx. 20 seconds. Presence sensor The presence sensor can be used to change the operat- ing mode manually to Comfort or Standby/unused. On the L640-L642 control units, the presence sensor lights up in Comfort mode. On the units with displays, the operating mode is shown on the display. The person icon outside the little house indicates non-use; if this icon is flashing, the controller is in Standby mode. In Comfort mode, the person icon moves into the house. Note All analogue inputs on the room controller can be read by the S-Bus via a Room FBox or via registers independently of the application. The use of a digital room control unit must be indicated in the configuration. See description of Config FBox or registers. Manual for PCD7.L6xx room operator units ...

  • Page 15: Technical Data For Pcd7.L640

    Saia-Burgess Controls AG Digital room controller units 3.1.1 Technical data for PCD7.L640 PCD7.L640 Controller RJ 9 PCD7.L670-xx Room control unit with temperature sensor and set point setting. Pin allocation Interface Terminal Description Serial bus The connection to the room controller is made with the PCD7.L670-xx directly to the controller, or where exten- sion modules are used for light and shade, to the last module. The PCD7.L670-xx connecting cable is precon- figured at both ends and is either 10, 30 or 50 m long. The maximum length between the room controller and the room control unit must not exceed 50 m. Functions Function Description Sensor Room temperature sensor. Measurement range 0…40 °C. Set point setting To set a configurable set point displacement. The setting is entered via a potentiometer. The range is converted into +/- 6 steps and passed to the room controller. The base set point held in the room controller can be increased or decreased in steps. The step size is stored in the room controller configuration. See description of Config FBox or registers (reg. 104). When the Plus, Set and Minus keys...

  • Page 16: Technical Data For Pcd7.L641

    Saia-Burgess Controls AG Digital room controller units 3.1.2 Technical data for PCD7.L641 PCD7.L641 Controller RJ 9 PCD7.L670-xx Room control unit with temperature sensor, set point setting and illuminated presence sensor. Pin allocation Interface Terminal Description Serial bus The connection to the room controller is made with the PCD7.L670-xx directly to the controller, or where exten- sion modules are used for light and shade, to the last module. The PCD7.L670-xx connecting cable is precon- figured at both ends and is either 10, 30 or 50 m long. The maximum length between the room controller and the room control unit must not exceed 50 m. Functions Function Description Sensor Room temperature sensor. Measurement range 0…40 °C. Set point setting To set a configurable set point displacement. The setting is entered via a potentiometer. The range is converted into +/- 6 steps and passed to the room controller. The base set point held in the room controller can be increased or decreased in steps. The step size is stored in the room controller configuration. See description of Config FBox or registers (reg. 104). When the Plus, Set and Minus keys...

  • Page 17: Technical Data For Pcd7.L642

    Saia-Burgess Controls AG Digital room controller units 3.1.3 Technical data for PCD7.L642 PCD7.L642 Controller RJ 9 PCD7.L670-xx Room control unit with temperature sensor, set point setting, illuminated presence sensor and fan control. Pin allocation Interface Terminal Description Serial bus The connection to the room controller is made with the PCD7.L670-xx directly to the controller, or where exten- sion modules are used for light and shade, to the last module. The PCD7.L670-xx connecting cable is precon- figured at both ends and is either 10, 30 or 50 m long. The maximum length between the room controller and the room control unit must not exceed 50 m. Functions Function Description Sensor Room temperature sensor. Measurement range 0…40 °C. Set point setting To set a configurable set point displacement. The setting is entered via a potentiometer. The range is converted into +/- 6 steps and passed to the room controller. The base set point held in the room controller can be increased or decreased in steps. The step size is stored in the room controller configuration. See description of Config FBox or registers (reg. 104). When the Plus, Set and Minus keys...
  • Page 18 Saia-Burgess Controls AG Digital room controller units Function Description Presence Sensor The presence sensor can be used to change the operating mode manually to Comfort or Standby/unused. In Comfort mode, the semi-transparent sensor lights up. Fan control The fan selection switch can be used to set the fan speed manually. The room controller can only switch to the desired step if this is allowed by the fan operating window. See description of Config FBox or registers (reg. 63, 64) Note All analogue inputs on the room controller can be read by the S-Bus via a Room FBox or via registers independently of the application. The use of a digital room control unit must be indicated in the configuration. See description of Config FBox or registers. Manual for PCD7.L6xx room operator units  │   D ocument 26-859  ENG07  │   2 015-06-04...

  • Page 19: Technical Data For Pcd7.L643

    Saia-Burgess Controls AG Digital room controller units 3.1.4 Technical data for PCD7.L643 PCD7.L643 HEVAC function Display Controller RJ 9 PCD7.L670-xx Room control unit with temperature sensor, function keys and display for HeaVAC functions. Pin allocation Interface Terminal Description Serial bus The connection to the room controller is made with the PCD7.L670-xx directly to the controller, or where exten- sion modules are used for light and shade, to the last module. The PCD7.L670-xx connecting cable is precon- figured at both ends and is either 10, 30 or 50 m long. The maximum length between the room controller and the room control unit must not exceed 50 m. Functions Function Description Sensor Room temperature sensor. Measurement range 0…40 °C. Set point setting To set a configurable set point displacement. Set in +/- 6 steps via the display. The base set point held in the room controller can be increased or decreased in steps.
  • Page 20 Saia-Burgess Controls AG Digital room controller units Function Description Presence Sensor The presence sensor can be used to change the operat- ing mode manually to Comfort or Standby/unused. The operating mode is shown in the display. The person icon outside the little house indicates non-use; if this icon is flashing, the controller is in Standby mode. In Comfort mode, the person icon moves into the house. Fan control The HeaVAC menu can be used to set the fan speed manually. The room controller can only switch to the desired step if this is allowed by the fan operating window. See description of Config FBox or registers (reg. 63, 64) HeaVAC functions The desired function is activated by pressing and holding the oval SET key (for approx. 2 seconds). The active function is shown in the display by the flashing icon. The setting can be changed with the up/down arrow keys. A short keystroke applies the current setting. Note All analogue inputs on the room controller can be read by the S-Bus via a Room FBox or via registers independently of the application. The use of a digital room control unit must be indicated in the configuration. See description of Config FBox or registers. Manual for PCD7.L6xx room operator units  │   D ocument 26-859  ENG07  │   2 015-06-04...

  • Page 21: Technical Data For Pcd7.L644

    Saia-Burgess Controls AG Digital room controller units 3.1.5 Technical data for PCD7.L644 PCD7.L644 HEVAC function light & shading Display Controller RJ 9 PCD7.L670-xx Room control unit with temperature sensor, function keys and display for HeaVAC functions, and light and shade functions. Pin allocation Interface Terminal Description Serial bus The connection to the room controller is made with the PCD7.L670-xx directly to the controller, or where exten- sion modules are used for light and shade, to the last module. The PCD7.L670-xx connecting cable is precon- figured at both ends and is either 10, 30 or 50 m long. The maximum length between the room controller and the room control unit must not exceed 50 m. Functions Function Description Sensor Room temperature sensor. Measurement range 0…40 °C. Set point setting To set a configurable set point displacement. Set in +/- 6 steps via the display. The base set point held in the room...
  • Page 22 Saia-Burgess Controls AG Digital room controller units Function Description Presence Sensor The presence sensor can be used to change the operat- ing mode manually to Comfort or Standby/unused. The operating mode is shown in the display. The person icon outside the little house indicates non-use; if this icon is flashing, the controller is in Standby mode. In Comfort mode, the person icon moves into the house. Fan control The HeaVAC menu can be used to set the fan speed manually. The room controller can only switch to the desired step if this is allowed by the fan operating window. See description of Config FBox or registers (reg. 63, 64). Light control The Light and Shade menu can be used to switch up to four light groups on/off manually. First, the Light menu is activated with the oval SET key. Then the group is select- ed and switched on/off with the arrow keys. See descrip- tion of Config FBox or registers (reg. 120). Blind control The Light and Shade menu can be used to move up to four blind groups up/down manually. First, the Shade menu is activated with the oval SET key. Then the group is selected and the blinds are controlled with the arrow keys. See description of Config FBox or registers (reg. 120). Note All analogue inputs on the room controller can be read by the S-Bus via a Room FBox or via registers independently of the application. The use of a digital room control unit must be indicated in the configuration. See description of Config FBox or registers. 3-11 Manual for PCD7.L6xx room operator units ...

  • Page 23: Operation / Menu Structur

    Saia-Burgess Controls AG Digital room controller units Operation / Menu structur Power up Light ON Light OFF Main Sreen Timeout Increment 5 sec light group Sunblind Sunblind rotate up rotate down Timeout 90 sec Sunblind menu Sunblind Sunblind down status up status Increment sunblind...

  • Page 24: Technical Data For Pcd7.L660 / Pcd7.L661 (Versions Sv1.5 And Sv6.1)

    Saia-Burgess Controls AG Digital room controller units 3.1.6 Technical data for PCD7.L660 / PCD7.L661 (versions SV1.5 and SV6.1) Receiver RJ 9 PCD7.L670 Mobile room control unit with infrared interface, temperature sensor, function keys and display for HeaVAC functions, and light and shade functions. For operation with the room controller, the PCD7.L661 infrared receiver is required. Pin allocation Interface Terminal Description infrared receivers PCD7.L661 Serial bus is connected directly to the room controller with the PCD7.L670 cable, or where extension modules are used for light and shade, to the last module. The PCD7.L670-xx connecting cable is pre- configured at both ends and is either 10, 30 or 50 m long. The maximum length between the room controller and the room control unit must not exceed 50 m. Funktions Function Description Sensor The room temperature sensor (range 0…40 °C) is inte- grated into the control unit. Set-point setting The base set-point held in the room controller can be increased or decreased in up to 3 steps using the room control unit. The step size is stored in the room controller configuration. See description of the associated configura-...
  • Page 25 Saia-Burgess Controls AG Digital room controller units Function Description Presence The two function keys can be used to change the operating mode manually to Comfort or Stand- by/unused. The operating mode is shown on the display for approx. 20 seconds. The person symbol outside the lit- tle house indicates non-use; inside the house, it indicates presence. After this, the display returns to the default view. Fan control The fan setting is activated with the function key The display shows a fan symbol. The keys can now be used to set the fan speed manually. Version SV1.5 SV6.1 (as from april 2008) Fan stopped Fan step 1 Fan step 2 Fan step 3 Fan automatic Auto The PCD7.L60x room controllers can only switch the fan to the desired step if this is allowed by the fan operating...
  • Page 26 Saia-Burgess Controls AG Digital room controller units for over 20 seconds, parameter mode will be terminated and the current setting will become active. Function Description Battery test key is used to run the integrated test function. All the display symbols flash and the charge level of the battery is displayed; ON stands for sufficient capacity, but when OFF is displayed, the battery should be changed. IR zone address To match a room control unit uniquely to a room. To ac- tivate the zone address setting, the function keys must be pressed together for at least 1 second. The display then shows the currently e range from 0…30.In the room controller, this is part of the configuration. Factory setting: 0 Temperature measurement The integrated temperature sensor can be used to meas- ure the room temperature. To activate parameterisation, the keys should be pressed together. The temperature symbol on the display will then flash and the current setting will be displayed. With the key the mode has to be adjusted.
  • Page 27 Saia-Burgess Controls AG Digital room controller units Function Description Retain settings The settings for the fan and the set-point displacement may be permanently applicable or only valid for the current configuration step. Retain settings: Press and keys together for at least 5 seconds. The temperature and fan symbols will flash and status ON will be displayed. Settings are only valid for the current configuration step. Press and keys together for at least 5 seconds. The temperature and fan symbols will flash and status OFF will be displayed. Factory setting: ON Blind rotation The rotation function can be used to control venetian blinds. When active, the rotation command is issued with key. Deactivate rotation function: Press keys together for at least 5 seconds. On the display, the rotation symbol will flash and the status text OFF will be displayed. Activate rotation function: Press keys together for at least 5 seconds.
  • Page 28 Saia-Burgess Controls AG Digital room controller units Function Description Number of blind groups Light and shade are controlled by group commands. The assignment of individual blinds to groups is part of the room controller configuration. This may differ according to the communications interface, and is described in the relevant section of this Manual. The room control unit has no knowledge of the room con- troller configuration. It is therefore necessary to param- eterise the number of supported blind groups in the room control unit separately. Press keys together for at least 5 seconds. On the display, the blind symbol flashesand the number of blind groups currently configured is shown. The can be used to select the value 2, 4 or 8. Factory setting: 2 Error codes In the error case will be displayed a code with the letter “E“ followed by a number. Please contact your service organisation. PCD7.L660 SV1.5 E3: Internal temperature sensor broken E4: Internal temperature sensor short circuit E5: Internal temperature sensor reference voltage broken E6: Internal temperature sensor reference voltage short circuit PCD7.L660 SV6.1 E1: Internal temperature sensor defect 3-17 Manual for PCD7.L6xx room operator units ...

  • Page 29: Technical Data For Pcd7.L662 / Pcd7.L663 (Version Sv2.8K)

    Saia-Burgess Controls AG Digital room controller units 3.1.7 Technical data for PCD7.L662 / PCD7.L663 (version SV2.8K) Radio Receiver RJ 9 PCD7.L670 Mobile room control unit with wireless interface, temperature sensor, function keys and display for HeaVAC functions, and light and shade functions. For operation with the room controller, the PCD7.L663 wireless receiver is required. Pin allocation Interface Terminal Description Serial bus The PCD7.L663 wireless receiver is connected directly to the room controller with the PCD7.L670 cable, or where extension modules are used for light and shade, to the last module. The PCD7.L670-xx connecting cable is pre- configured at both ends and is either 10, 30 or 50 m long. The maximum length between the room controller and the room control unit must not exceed 50 m. Functions Function Description Sensor The room temperature sensor (range 0…40 °C) is inte- grated into the control unit. Set-point setting The base set-point held in the room controller can be increased or decreased in up to 5 steps using the room control unit, with the last step twice as large as the rest.
  • Page 30 Saia-Burgess Controls AG Digital room controller units Function Description Presence The two function keys can be used to change the operating mode manually to Comfort or Stand- by/unused. The operating mode is shown on the display for approx. 20 seconds. The person symbol outside the lit- tle house indicates non-use; inside the house, it indicates presence. After this, the display returns to the default view. Fan control The fan setting is activated with the function key . The display shows a fan symbol. The keys can now be used to set the fan speed manually. Fan stopped Fan step 1 Fan step 2 Fan step 3 Fan automatic The PCD7.L60x room controllers can only switch the fan to the desired step if this is allowed by the fan operating...
  • Page 31 Saia-Burgess Controls AG Digital room controller units for over 20 seconds, parameter node will be terminated and the current setting will become active. Wireless signals are carried across zones and through walls. This makes it necessary to match the wireless transmitter uniquely to the receiver connected directly to the room controller with the PCD7.L670 connecting cable. A commissioning procedure is run to match the mobile room control unit to the desired receiver. Function Description Matching of control unit to The room controller and receiver must be powered on and receiver in operation.. Press the function keys , and together. The display shows the currently configured receiver ad- dress and the bar graph flashes as long as the room control unit is ready to be given a new receiver address. The receiver transmits its ID when the small button on the back of the device next to the cable inlet is pressed; this is accessible after removing the base of the housing. When the ID has been received successfully, the bar graph on the display stops flashing and the new receiver address is displayed and saved permanently. Pressing any of the function keys will cancel the procedure and the old receiver address will be retained. This procedure can be repeated in the same way anynum- ber of times. Battery test key is used to run the integrated test function.

  • Page 32: Function Description

    Saia-Burgess Controls AG Digital room controller units Function Description Temperature measurement The integrated temperature sensor can be used to meas- ure the room temperature. To activate parameterisation, the , and keys should be pressed together. The temperature symbol on the display will then flash and the current set- ting will be displayed. OFF: Temperature measurement disabledIf the room con- troller uses the temperature measurement from the room control unit, the current room temperature in the room controller will become invalid (99.9°C). See room control- ler configuration. ON: Temperature measurement is enabled. The room temperature will be transmitted after any 0.2°C change or after 15 minutes without any change. ON with temperature display: Temperature measurement is enabled and the current room temperature will be per- manently shown on the display. Factory setting: OFF Retain settings The settings for the fan and the set-point displacement may be permanently applicable or only valid for the current configuration step. Retain settings Press and keys together for at least 5 seconds. The...
  • Page 33 Saia-Burgess Controls AG Digital room controller units Function Description Number of light groups The lighting is controlled by group commands. The as- signment of individual lights to groups is part of the room controller configuration. This may differ according to the communications interface, and is described in the relevant section of this Manual. The room control unit has no knowledge of the room con- troller configuration. It is therefore necessary to param- eterise the number of supported light groups in the room control unit separately. Press keys together for at least 5 seconds. On the display, the light symbol flashes and the number of light groups currently configured is shown. The keys can be used to select the value 2, 4 or 8. Factory setting: 2 Number of blind groups Light and shade are controlled by group commands. The assignment of individual blinds to groups is part of the room controller configuration. This may differ according to the communications interface, and is described in the relevant section of this Manual. The room control unit has no knowledge of the room con- troller configuration. It is therefore necessary to param- eterise the number of supported blind groups in the room control unit separately. Press keys together for at least 5 seconds.

  • Page 34: Technical Data For Pcd7.L650

    Saia-Burgess Controls AG Digital room controller units 3.2 Technical data for PCD7.L650 Interface module to connect up to 8 floating contacts to control light and shade via industry-standard electronic switches/sensors. The module is used in combination with a room controller and the extension modules for light and shade. Example application: Analogue: PCD7.L671, 10 m PCD7.L672, 0.3 m PCD7.L672, 0.3 m PCD7.L672, 0.3 m Digital: PCD7.L670, 10 m Room controller + 4 × Light PCD7.L620 PCD7.L621 PCD7.L622 Potential-free contact inputs for 4 ×...
  • Page 35 8 potential free contacts Commissioning / configuration The functions are predefined within the module and are selected via the DIP switch. New settings only take effect after a restart. System properties - general Control and sensor commands are sent once only as status changes at the time of the action and are not constantly repeated. This enables e.g. a network command to control the light independently of the current switch setting. For a combination of light control via contacts and network, it is advisable to use electronic sensors instead of switches. SBC S-Bus Where communication has been set to "after change" in the associated Room F-Box for the Saia PCD , the next switching command determines the current status. If, on ® the other hand, communication to the Room F-Box is set to "permanent", a switching command applies for just a short time until the next communication cycle. 3-24 Manual for PCD7.L6xx room operator units  │   D ocument 26-859  ENG07  │   2 015-06-04...

  • Page 36: Light

    Saia-Burgess Controls AG Digital room controller units 3.2.1 Light: 2 light groups with sensor commands 'on' and 'off' Shade: 2 groups up/down via electronic sensor Base PCD7.L600 PCD7.L601 PCD7.L602 PCD7.L603 PCD7.L610 PCD7.L611 controller:      Sensor commands are sent once only as status changes at the time of the action and are not constantly repeated. This enables e.g. a network command to control the light independently of the current switch setting. Where communication has been set to "after change" in the associated Room F-Box for the Saia PCD , the next switching ® command determines the current status. If, on the other hand, communication to the Room F-Box is set to "permanent", a different switching command applies for just a short time until the next communication cycle. DIP switch Light group 1 Shade group 1 down Shade group 2 up Light group 2 Shade group 1 up Shade group 2 down 3-25 Manual for PCD7.L6xx room operator units ...

  • Page 37: Light Group Sensor On, Automatic Off After Time Delay

    Saia-Burgess Controls AG Digital room controller units 3.2.2 Light: 1 light group sensor on, automatic off after time delay Shade: 2 groups shades up/down Base PCD7.L600 PCD7.L601 PCD7.L602 PCD7.L603 PCD7.L610 PCD7.L611 controller:  The time delay is an integral part of the LON controller PCD7.L611 software and can be set via a parameter using LON configuration software (LN220 or LON Maker). This is one of the internal parameters which require the resource file to be installed using the "Echeleon Resource File Catalog Tool" in order to display values in plain text. DIP switch Light group 1 Shade group 2 up Shade group 1 up Shade group 2 down Shade group 1 down 3-26 Manual for PCD7.L6xx room operator units  │   D ocument 26-859  ENG07  │   2 015-06-04...

  • Page 38: Light Group Sensor On, Off Via Network Command

    1 light group sensor on, off via network command Shade: 2 groups shades up/down Base PCD7.L600 PCD7.L601 PCD7.L602 PCD7.L603 PCD7.L610 PCD7.L611 controller:      PCD7.L60x SBC S-Bus In combination with S-Bus controllers, the light outputs are split into up to 4 light groups using the Config F-Box, with the first two groups available for direct control via this module. Groups 3 and 4 can be controlled via the room control unit and S-Bus. PCD7.L611 LON When the extension units are used with a LON controller, the light and shade outputs must be assigned to the groups by "LON bindings". Without binding, a predefined assignment of the outputs to groups is only effective for initial commissioning. DIP switch Light group 1 Shade group 1 down Light group 2 Shade group 2 up Shade group 1 up Shade group 2 down 3-27 Manual for PCD7.L6xx room operator units  │   D ocument 26-859  ENG07  │   2 015-06-04...

  • Page 39: Light

    Saia-Burgess Controls AG Digital room controller units 3.2.4 Light: 2 groups via switch Shade: 2 groups via changeover contacts up/down Base PCD7.L600 PCD7.L601 PCD7.L602 PCD7.L603 PCD7.L610 PCD7.L611 controller:      DIP switch Light group 1 Shade group 1 down Light group 2 Shade group 2 up Shade group 1 up Shade group 2 down Switching commands are sent once only as status changes at the time of the action and are not constantly repeated. This enables e.g. a network command to control the light independently of the current switch setting. Where communication has been set to "after change" in the associated Room F-Box for the Saia PCD , the next switching ® command determines the current status. If, on the other hand, communication to the Room F-Box is set to "permanent", a different switching command applies for just a short time until the next communication cycle.

  • Page 40: Cables For Room Controllers And Room Control Units

    PCD7.L63x Not use PCD7.L60x or PCD7.L61x Power Supply Poti RJ11 Length 10 m Plug connector RJ-11 / flex To fit: Room control units: PCD7.L631 and PCD7.L632 Room controllers: PCD7.L60x, PCD7.L61x Note: The PCD7.L630 room temperature sensor is fitted with a 2-pole screw terminal. A 2-core cable is sufficient to connect to it; if the PCD7.L671 cable is used, the preconfigured connector is cut off, the insulation removed from the cable before connecting it in the conventional way. Manual for PCD7.L6xx room operator units  │   D ocument 26-859  ENG07  │   2 015-06-04...
  • Page 41 Saia-Burgess Controls AG Digital room controller units Cables PCD7.L672 Preconfigured cable to connect extension modules to each other and to a room controller. PCD7.L672-xx Extension module Room controller RC-Bus 0.3 m, 10 m, 50 m PCD7.L62x, PCD7.L650 PCD7.L60x, PCD7.L61x RJ11 Length 0.3 m, 10 m, 50 m Plug connector RJ-11 / RJ-9 To fit: Room controllers: PCD7.L60x, PCD7.L61x Extension modules: PCD7.L62x and PCD7.L650 PCD7.L673 Cable set to make up a PCD7.L670 and a PCD7.L672 cable. Includes: Cable length 11 m Plug connector...
  • Page 42 Saia-Burgess Controls AG Digital room controller units Cables Samples of use: Room controller with extension module, input module and PCD7.L66x mobile room control unit max. 50 m max. 50 m PCD7.L672-xx PCD7.L672-xx mobil .L661, .L663 .L660, .L660 Room temperature controller + 2 × Light PCD7.L620 .L665, .L666 2 × Light PCD7.L621 1 ×...

  • Page 43: Appendix A.1 Icons

    Appendix Saia-Burgess Controls AG Icons Appendix Icons In manuals, this symbol refers the reader to further information in this manual or other manuals or technical information documents. As a rule there is no direct link to such documents. This symbol warns the reader of the risk to components from electrostatic discharges caused by touch. Recommendation: Before coming into contact with electrical components, you should at least touch the Minus of the system (cabinet of PGU connector). It is better to use a grounding wrist strap with its cable permanently attached to the Minus of the system. This sign accompanies instructions that must always be followed. Explanations beside this sign are valid only for the Saia PCD Classic series. ® Explanations beside this sign are valid only for the Saia PCD xx7 series. ® Manual for PCD7.L6xx room operator units  │   D ocument 26-859  ENG07  │   2 015-06-04...

  • Page 44: Order Codes

    Room controller 230 V with 2 Triac outputs, 2 outputs0…10 V PCD7.L681 * ® relay for electric heater and 3-stage fan speed control Extension modules for light and shade PCD7.L620 Extension module to control 2 light bars PCD7.L621 Extension module to control 2 light bars and 1 blind motor PCD7.L622 Extension module to control 3 blind motors PCD7.L623 Extension module to control 2 blind motors 24 V with blade movement Room control units PCD7.L630 Temperature sensor PCD7.L631 Temperature sensor and set-point setting PCD7.L632 Temperature sensor, set-point setting, presence sensor and LED PCD7.L640 Temperature sensor and set-point setting PCD7.L641 Temperature sensor, set-point setting, presence sensor and LED PCD7.L642 Temperature sensor, set-point setting, presence sensor, LED and fan control PCD7.L643 Temperature sensor, function keys and LCD display for HeaVAC and light Temperature sensor, function keys and LCD display for HeaVAC PCD7.L644...
  • Page 45 Appendix Saia-Burgess Controls AG Order codes Expansion modules to connect third-party devices PCD7.L650 Expansion module to connect up to 8 external contacts for light  &   s hade PCD7.L651* Wireless receiver to connect EnOcean room control devices Accessories PCD7.L670 Connecting cable for room control units RJ 9  /   R J 9, 10 m PCD7.L670- Connecting cable for room control units RJ 9  /   R J 9, 30 m PCD7.L670- Connecting cable for room control units RJ 9  /   R J 9, 50 m PCD7.L671 Connecting cable for room control units RJRJ 11 ...

  • Page 46: Contact

    Bahnhofstrasse 18 3280 Murten Switzerland Phone .......... +41 26 580 30 00 Fax .......... +41 26 580 34 99 Email support: ......support@saia-pcd.com Supportsite: ........ www.sbc-support.com SBC site: ........www.saia-pcd.com International Represetatives & SBC Sales Companies: ....www.saia-pcd.com/contact Postal address for returns from customers of the Swiss Sales office Saia-Burgess Controls AG Service Après-Vente Bahnhofstrasse 18 3280 Murten Switzerland Manual for PCD7.L6xx room operator units ...

This manual is also suitable for:

Pcd7.l631Pcd7.l632
