8.3.10 Fixing Cabinets

I. Installing the T-shape nuts
Before fixing a cabinet, put T-shape nuts into the upper troughs of the slide rails, two on each
side. (Each anchor strip needs two T-shape nuts).
II. Installing anchor strips
As shown in Figure 8-36, install the anchor strips (two for each cabinet).
Caution:
The anchor strips must be installed in the orientation as shown in Figure 8-36.
1) Retaining nut of anchor strip

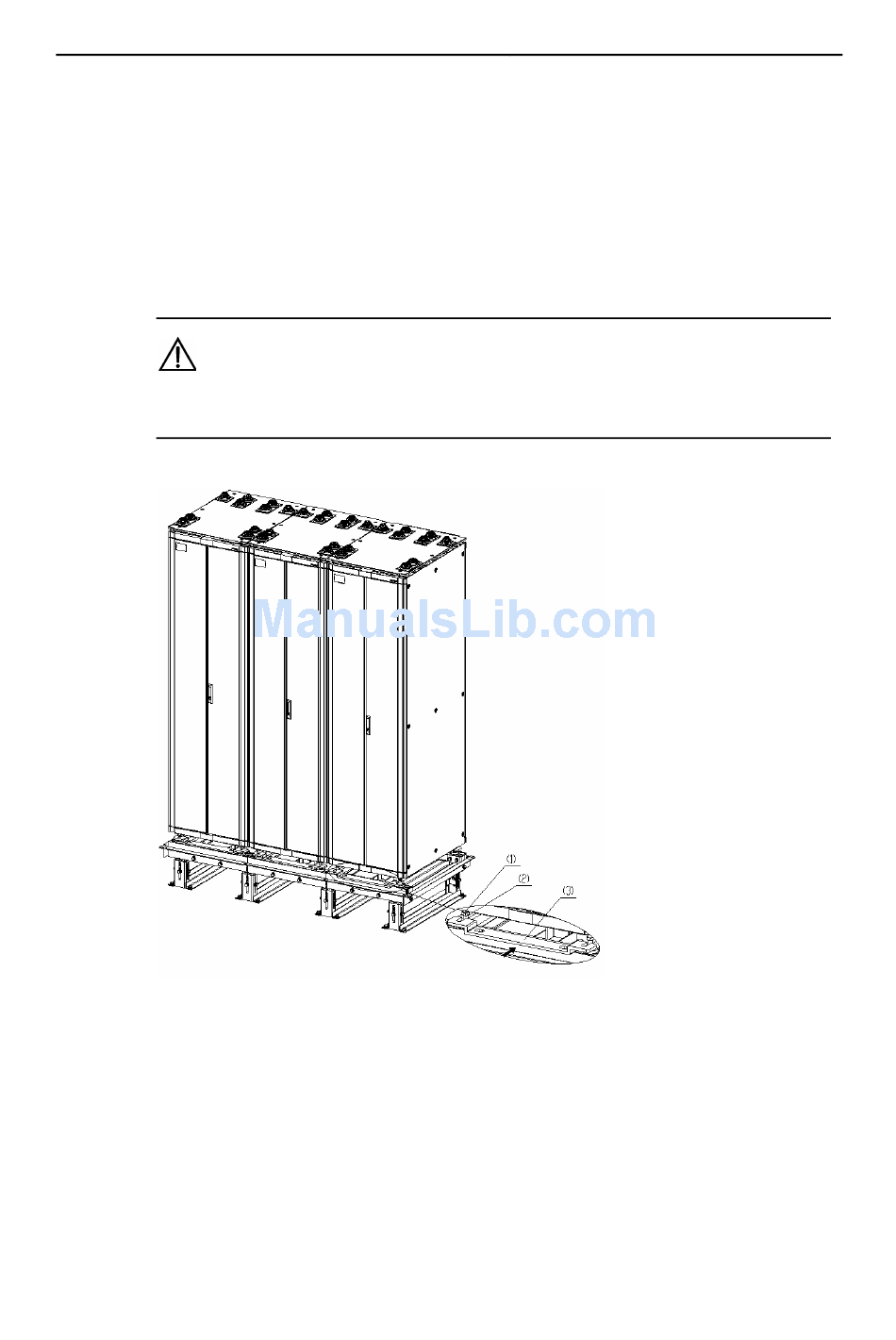

Figure 8-36 Install anchor strips
III. Installing insulating parts and fixing anchor strips
Follow these steps to install insulating parts and fix an anchor strip:
1) Put the insulating washers under the anchor strip and align them vertically with
the T-shape nuts in the upper troughs of the anchor strip (one anchor strip needs
two insulating washers).
2) Cabinet foot
3Com Corporation
8-31
Chapter 8
Installing B68 Cabinets
3) Anchor strip
