3Com Router 6000 Family
Installation Manual
1) 12 flat washer
4) M12 nut
7) Left bracket

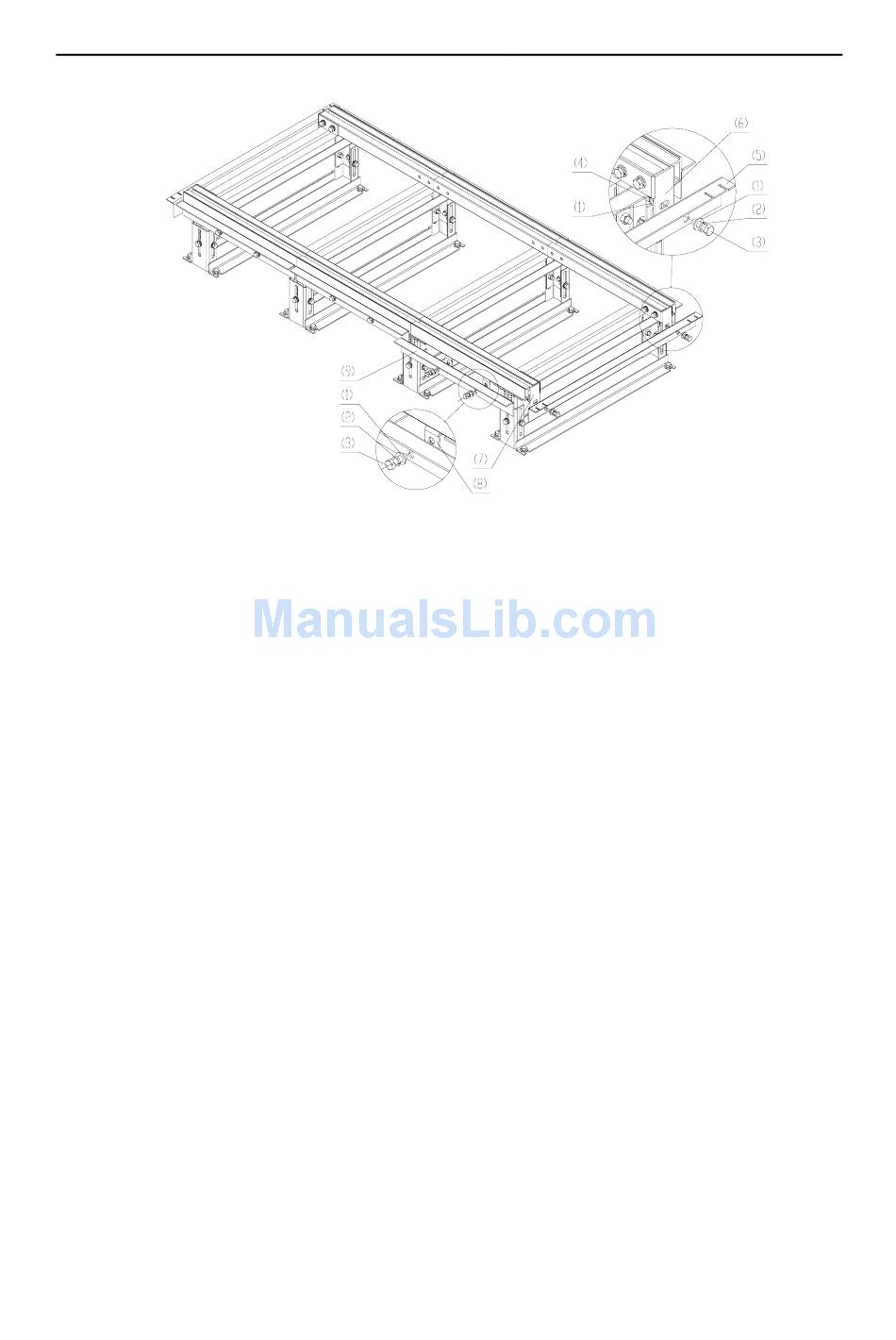

Figure 8-31 Install the front and side supports
III. Fixing the front support and the side floor pallet fixing brackets
Adjust the front support and the side floor pallet fixing brackets vertically to have the upper
surface of the fixing brackets flush with the downside of the antistatic floor. Then fasten the
M12×35 bolts.

8.3.8 Leveling Cabinets

I. Moving the cabinets to the position
Lift the cabinets on the slide rails, and align centers of the cabinet feet with the centers of the
troughs on the slide rails vertically. Align all cabinets.
II. Leveling the cabinets
Follow these steps to level the cabinets as shown in Figure 8-32.
1) Unfasten the retaining nuts of the cabinets;
2) Place a horizontal ruler in the two orthogonal directions on the top of the cabinets
to check levelness.
3) If the cabinets are not flush, unfasten the retaining nuts of the cabinets on the
feet with a spanner, and then rotate the screw bolts on the feet to adjust the
height of the cabinets until they are flush.
2) 12 spring washer
5) Side support
8) Floor pallet fixing bracket
3Com Corporation
8-27
Chapter 8
Installing B68 Cabinets
3) M12×35 bolt
6) Right bracket
9) Front support
